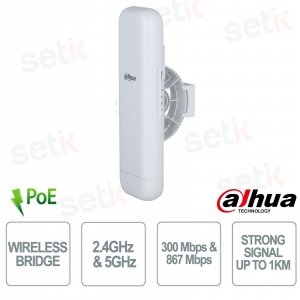

WBC5-90AC-01P | WIRELESS BRIDGE 5.8G 1km WITH 802.11ac

Il Dahua WBC5-90AC-01P è un bridge wireless da 5.8 GHz ad alte prestazioni con tecnologia 802.11ac, ideale per collegamenti punto-punto e punto-multipunto fino a 1 km. Garantisce una trasmissione fino a 867 Mbps, perfetta per videosorveglianza e reti industriali. Grazie alla gestione cloud DoLynk Care, al PoE in/out e alla protezione IP65, assicura facilità d’installazione, stabilità e resistenza anche in ambienti esterni difficili.
Specifiche principali:
- Banda fino a 867 Mbps
- Distanza di trasmissione 1 km
- Gestione cloud e app mobile
- PoE in/out 802.3af/at
- Protezione IP65 contro acqua e polvere
- Ampio range operativo da –30 °C a +65 °C
Ulteriori dettagli

Scheda tecnica
Model | PFM886-15 |
Hardware | |
Sold in Pairs | No |
Function Slots | LAN 2: 1 × RJ-45 10/100/1000 Mbps(PoE In); LAN 1: 1 × RJ-45 10/100 Mbps(PoE Out) |
Power Supply | PoE(802.3 af/at) |
Power Consumption | < 30 W |
Antenna | IPEX |
Memory | DDR 128 MB |
Indicator Light | 1 × Power indicator; 2 × LAN port indicators; 1 × PoE indicator; 3 × Wireless signal strength indicators |
External Port | 2 × RJ–45; 1 × Reset |
Performance | |
Wireless Standard | 2.4 GHz: 802.11b/g/n; 5 GHz: 802.11a/n/ac |
Recommended Video Channels | 10-ch 4M |
Operating Frequency | 2.4 GHz: 2.412 GHz–2.472 GHz; 5 GHz: 5.15 GHz–5.25 GHz; 5.735 GHz–5.835 GHz |
Wireless Transmission Rate | 2.4 GHz:300 Mbps; 5 GHz:867 Mbps |
Channel Width | 20/40/80 MHz |
Max. Output Power | 21 dBm + 9dBi |
Antenna Direction Angle | Horizontal: 90°, vertical: 20° |
Receiver Sensitivity | –96 dBm@11a_20M_6M |
Polarization | Vertical/horizontal |
Transmission Distance | 1 km (3,280.83 ft) |
Connected Wireless Terminals | 8 |
PoE | PoE In: 802.3af/at(15W/30W); PoE Out: 802.3af(15W) |
Function | |
Operating Mode | Access point; Client |
Equipment Management | Web management; App management |
Network Protocol | HTTPS;IPv4;UDP;NTP;DHCP;TCP |
Encryption Mode | WPA-PSK/AES/TKIP |
Security Mechanism | WPA/WPA2; hidden SSID |
DHCP | Yes |
Firmware Update | Web update;ConfigTool;App update |
Software | Device Management: wireless bridge configuration on the app through WLAN; local web management; cloud management (cloud web and app); quick configuration guide; scanning code to add; Wi-Fi hotspot access cloud; System Management: system log; factory settings; backup restore configuration; import configuration; DMZ; diagnosis and restart; Network Management: DHCP/Static IP configuration; VLAN configuration; LLDP; topology display; Wireless Network Management: 2.4 GHz Wi-Fi access management; working mode selection (access point/client); hide SSID (only access point); wireless output power adjustment; channel selection and channel width configuration; encryption mode configuration (non-encrypted and WPA2-PSK; wireless frame segmentation and aggregation |
General | |
Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
Storage Temperature | –40 °C to +80 °C (–40 °F to +176 °F) |
Operating Humidity | 5%–95% (RH), non-condensing |
Net Weight | 0.37 kg (0.82 lb) |
Gross Weight | 1.16 kg (2.56 lb) |
Product Dimensions | 268 mm × 82 mm × 35 mm (10.55" × 3.23" × 1.38") (L × W × H) |
Packaging Dimensions | 299 mm × 139 mm × 111 mm(11.77" × 5.47" × 4.37")(L × W × H) |
Protection | IP65 |
Statics Protection | Air discharge: 15 kV; Contact discharge: 8 kV |
Lighting Protection | Common mode: 6 kV; Differential mode: 4 kV |
Installation | Pole mount |
Certifications | CE |
Packing List | 1 × Wireless bridge; 1 × Power cord; 1 × PoE adapter; 1 × Clamp(Φ59 mm to 82 mm); 1 × Antenna adjustment bracket; 1 × Mounting bracket; 1 × Quick start guide; 1 × Legal and regulatory information |
