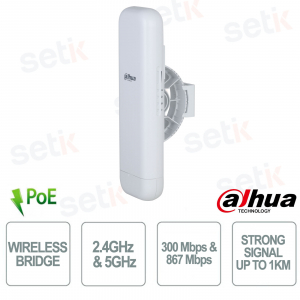

WBC5-90AC-01P | WIRELESS BRIDGE 5.8G 1km WITH 802.11ac

Dahua

The Dahua WBC5-90AC-01P is a high-performance 5.8 GHz wireless bridge with 802.11ac technology, ideal for point-to-point and point-to-multipoint connections up to 1 km. It guarantees transmission speeds of up to 867 Mbps, perfect for video surveillance and industrial networks. Thanks to DoLynk Care cloud management, PoE in/out, and IP65 protection, it ensures easy installation, stability, and resistance even in harsh outdoor environments.

Main specifications:

- Bandwidth up to 867 Mbps

- Transmission distance 1 km

- Cloud management and mobile apps

- PoE in/out 802.3af/at

- IP65 protection against water and dust

- Wide operating range from –30 °C to +65 °C

Further details

✅ Cloud Management:
Thanks to the DoLynk Care platform, the device allows remote management via the cloud and mobile app. Administrators can monitor network status in real time, receive immediate error notifications, and access advanced diagnostics and predictive maintenance features. This system ensures constant monitoring and performance optimization without the need for local intervention.
✅ Quick Deployment :
The WBC5-90AC-01P is designed for quick setup : the network is automatically detected and the topology generated in just a few steps. Intuitive installation, combined with wall or pole mounting compatibility, dramatically reduces setup time, making it perfect even for large-scale installations or in challenging environments.
✅ Industry Standard Protection:
Built to high-quality industrial standards , the bridge offers IP65 protection, making it waterproof, dustproof, and resistant to extreme conditions (–30°C / +65°C). This robustness makes it ideal for outdoor applications, ensuring stable performance even in the presence of rain, wind, or dust.
✅ PoE Input and Output:
The device supports PoE in and PoE out (802.3af/at) , greatly simplifying installation. It can be powered via a single Ethernet cable and in turn supply power to connected devices, such as IP cameras or access points, reducing cabling and installation costs.
✅ Enhanced Antenna :
Equipped with a high-gain antenna , it ensures stable and powerful transmission up to 1 km . Anti-interference performance improves signal quality even in crowded or obstructed environments, ensuring a smooth and continuous video stream.
✅ Wireless Management:
The built-in 2.4 GHz Wi-Fi module enables direct wireless management of the device. Operators can quickly and easily configure, monitor, and adjust network settings, even without a wired connection, improving operational efficiency and system flexibility.
✅ TDMA Enhancement:
Thanks to TDMA (Time Division Multiple Access) technology, the bridge optimizes bandwidth for video transmission and reduces interference between hidden nodes. This feature improves signal stability and device synchronization, essential for video surveillance and continuous streaming applications.

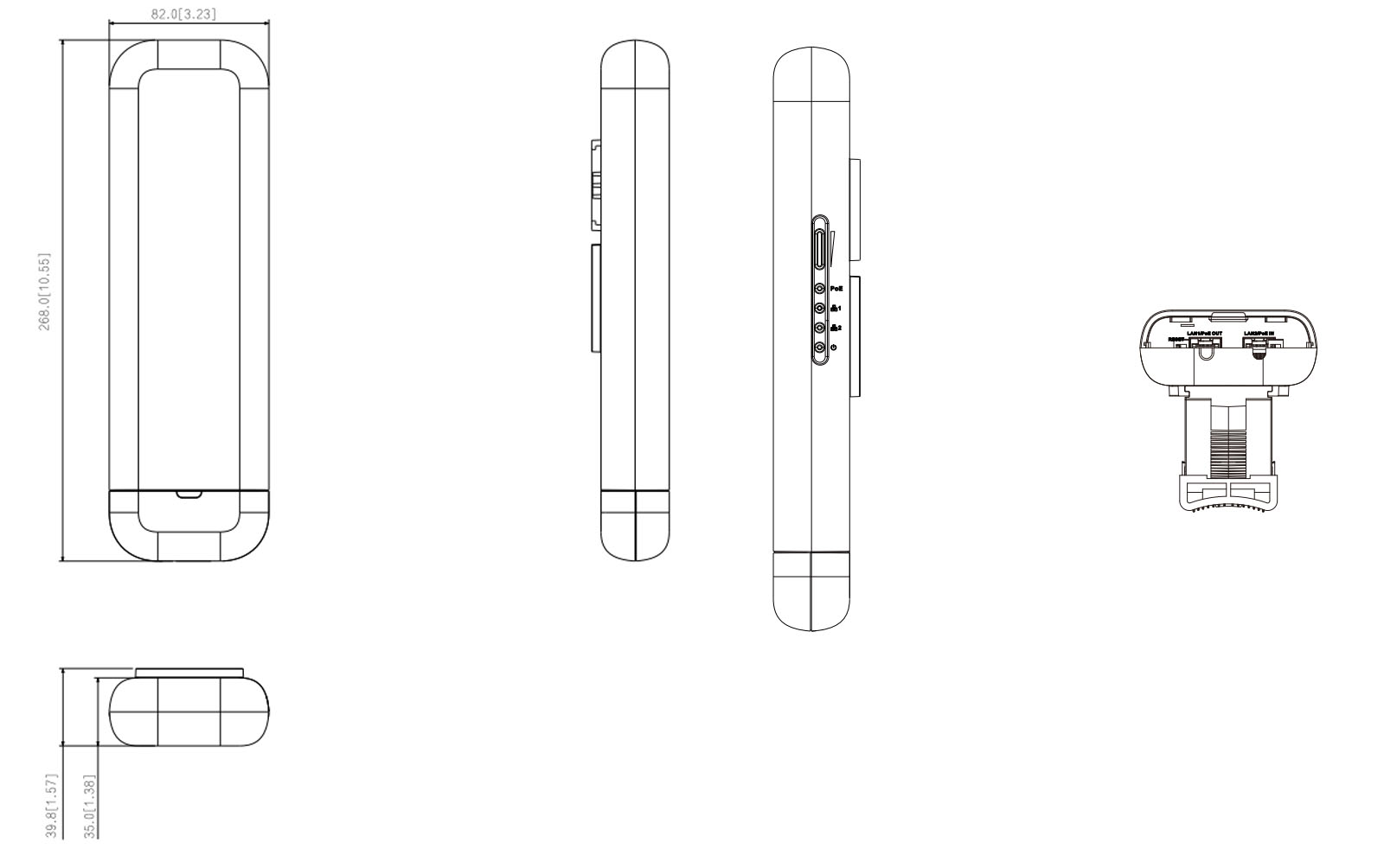

WBC5-90AC-01P dimensions

Technical data sheet

Model PFM886-15
Hardware
Sold in Pairs No
Function Slots LAN 2: 1 × RJ-45 10/100/1000 Mbps(PoE In);
LAN 1: 1 × RJ-45 10/100Mbps(PoE Out)
Power Supply PoE (802.3 af/at)
Power Consumption < 30 W
Antenna IPEX
Memory DDR 128 MB
Indicator Light 1 × Power indicator;
2 × LAN port indicators;
1 × PoE indicator;
3 × Wireless signal strength indicators
External Port 2 × RJ–45;
1 × Reset
Performance
Wireless Standard 2.4 GHz: 802.11b/g/n;
5 GHz: 802.11a/n/ac
Recommended Video Channels 10-ch 4M
Operating Frequency 2.4GHz: 2.412GHz–2.472GHz;
5GHz: 5.15GHz–5.25GHz; 5.735GHz–5.835GHz
Wireless Transmission Rate 2.4 GHz:300 Mbps;
5 GHz: 867 Mbps
Channel Width 20/40/80 MHz
Max. Output Power 21 dBm + 9dBi
Antenna Direction Angle Horizontal: 90°, vertical: 20°
Receiver Sensitivity –96 dBm@11a_20M_6M
Polarization Vertical/horizontal
Transmission Distance 1 km (3,280.83 ft)
Connected Wireless Terminals 8
PoE PoE In: 802.3af/at(15W/30W);
PoE Out: 802.3af(15W)
Function
Operating Mode Access point; Client
Equipment Management Web management;
App management
Network Protocol HTTPS; IPv4; UDP; NTP; DHCP; TCP
Encryption Mode WPA-PSK/AES/TKIP
Security Mechanism WPA/WPA2; hidden SSID
DHCP Yes
Firmware Update Web update;ConfigTool;App update
Software Device Management: wireless bridge configuration on the app through WLAN; local web management; cloud management (cloud web and app); quick configuration guide; scanning code to add; Wi-Fi hotspot access cloud; System Management: system log; factory settings; backup restore configuration; import configuration; DMZ; diagnosis and restart;
Network Management: DHCP/Static IP configuration; VLAN configuration; LLDP; topology display;
Wireless Network Management: 2.4 GHz Wi-Fi access management; working mode selection (access point/client); hide SSID (only access point); wireless output power adjustment; channel selection and channel width configuration; encryption mode configuration (non-encrypted and WPA2-PSK; wireless frame segmentation and aggregation
General
Operating Temperature –30 °C to +65 °C (–22 °F to +149 °F)
Storage Temperature –40 °C to +80 °C (–40 °F to +176 °F)
Operating Humidity 5%–95% (RH), non-condensing
Net Weight 0.37 kg (0.82 lb)
Gross Weight 1.16 kg (2.56 lb)
Product Dimensions 268 mm × 82 mm × 35 mm (10.55" × 3.23" × 1.38") (L × W × H)
Packaging Dimensions 299 mm × 139 mm × 111 mm(11.77" × 5.47" × 4.37") (L × W × H)
Protection IP65
Statics Protection Air discharge: 15 kV;
Contact discharge: 8 kV
Lighting Protection Common mode: 6 kV;
Differential mode: 4 kV
Installation Pole mount
Certifications THERE IS
Packing List 1 × Wireless bridge;
1 × Power cord;
1 × PoE adapter;
1 × Clamp(Φ59 mm to 82 mm);
1 × Antenna adjustment bracket;
1 × Mounting bracket;
1 × Quick start guide;
1 × Legal and regulatory information
