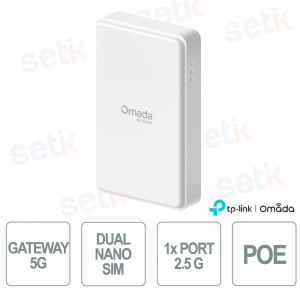

Omada ER701-5G-Outdoor Gateway 5G, fino a 7.01 Gbps, 2.5G PoE, Dual SIM, IP66 Outdoor, Gestione Cloud SDN
ER701-5G-Outdoor è un gateway 5G outdoor professionale progettato per offrire connettività internet ad altissima velocità anche in aree dove la banda cablata non è disponibile. Grazie al supporto 5G NR fino a 7.01 Gbps (SA) e 4.5 Gbps (NSA) garantisce connessioni rapide e affidabili per aziende, cantieri, eventi temporanei e installazioni remote. Integra 9 antenne cellulari interne ad alte prestazioni e 1 antenna Wi-Fi per configurazione rapida, migliorando la ricezione del segnale mobile. La presenza di porta 2.5G PoE In con supporto 802.3at o Passive PoE consente alimentazione e trasmissione dati tramite un unico cavo Ethernet. Il design IP66 resistente alle intemperie con protezione da sovratensioni 6 kV lo rende ideale per installazioni esterne. Supporta inoltre Dual Nano SIM, gestione centralizzata Omada SDN e allineamento antenna guidato tramite app per prestazioni 5G ottimali e gestione remota della rete. Omada
ER701-5G-Outdoor | GATEWAY 5G OUTDOOR

Il TP-Link Omada ER701-5G-Outdoor è un gateway 5G outdoor professionale progettato per fornire connettività internet ultra-veloce anche dove la banda cablata non è disponibile. Grazie al supporto 5G NR fino a 7.01 Gbps (SA) e 4.5 Gbps (NSA) garantisce prestazioni elevate per aziende, cantieri, eventi temporanei e installazioni remote. Integra 9 antenne cellulari interne ad alte prestazioni e 1 antenna Wi-Fi per configurazione rapida, migliorando ricezione e stabilità del segnale. La porta 2.5G PoE In con supporto 802.3at e Passive PoE consente alimentazione e dati tramite un unico cavo Ethernet. Il design IP66 resistente alle intemperie con protezione da sovratensioni 6 kV lo rende ideale per ambienti esterni. Supporta inoltre Dual Nano SIM, gestione centralizzata tramite piattaforma Omada SDN e allineamento antenna guidato tramite app per prestazioni 5G ottimizzate e gestione remota della rete.
Specifiche principali:
- Gateway 5G NR fino a 7.01 Gbps (SA) e 4.5 Gbps (NSA)
- Porta 2.5G Ethernet con alimentazione PoE 802.3at o Passive PoE
- 9 antenne cellulari interne + 1 antenna Wi-Fi per configurazione e setup
- Dual Nano SIM per connettività 5G/4G con ridondanza di rete
- Struttura IP66 resistente alle intemperie con protezione fulmini 6 kV
- Gestione centralizzata tramite Omada SDN, Web e App
- Installazione flessibile a parete, palo o finestra per ambienti outdoor
Ulteriori dettagli
Scheda tecnica
| Model | ER701-5G-Outdoor |
| 5G/4G/3G | |
| Network Mode | 5G NR:N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N75/N76/N77/N78 (2100/1800/850/2600/900/800/850/700/2600/2300/2500/150 0/1450/3700/3500 MHz)§ 4G FDD-LTE: B1/B3/B5/B7/B8/B20/B26/B28/B32 (2100/1800/850/2600/900/800/850/700/1500 MHz)§ 4G TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) 3G WCDMA: B1/B5/B8 (2100/850/900 MHz) |
| Speed | 5G NR Speed SA: Downlink: 7.01 Gbps, Uplink: 1.25 Gbps NSA: Downlink: 4.5 Gbps, Uplink: 730 Mbps LTE Speed Downlink: 1.6 Gbps, Uplink: 211 Mbps |
| SIM Type | Dual Nano SIM |
| SICUREZZA | |
| DPI | Deep Packet Inspection |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | Web Group Filtering (only in Standalone Mode) URL Filtering Web Security (only in Standalone Mode) |
| ARP inspection | Sending GARP Packets ARP Scanning (only in Standalone Mode) IP-MAC Binding |
| Attack defence | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| CARATTERISTICHE HARDWARE | |
| Interfaccia | 1×2.5G RJ45 Port |
| Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Tasto | Reset Button |
| Alimentazione | 802.3at PoE: 42-57V 0.6A Passive PoE: 48V 0.375A |
| Flash | 4GB eMMC Flash |
| DRAM | 2GB LPDDR4x |
| LED | System, Network Type, Signal Strength |
| Dimensioni ( L x P x A ) | 7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm) |
| Antenna | 9× internal Cellular antennas 1× internal Wi-Fi antenna |
| Slot SIM card | 1×Dual Nano SIM slot |
| Tipo di montaggio | Wall/Pole/Window Mounting |
| Max. Power Consumption | 15.3W (802.3at PoE or Passive PoE) |
| PRESTAZIONI | |
| Sessioni concorrenti | 500, 000 |
| New Sessions /Second | 6,100 |
| CARATTERISTICHE WIRELESS | |
| Velocità wireless | 2.4 GHz: 150 Mbps† |
| Wireless | 802.11n: 6.5 Mbps to 150 Mbps (MCS0-MCS7, HT20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps |
| Funzionalità wireless | Wireless Encryption: WPA/WPA2 Personal SSID: 1 Enable/Disable Wireless Radio Enable/Disable SSID Broadcast Automatic Channel Selection Algorithm Transmit Power Control: Adjust transmit Power on dBm |
| FUNZIONI DI BASE | |
| Tipo connessione WAN | 5G/4G/3G |
| DHCP | DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
| Stateful ACL | Yes |
| Quality of Service | Yes |
| Bridge VLAN | Yes |
| SMS | Receive / Send SMS |
| VLAN | 802.1Q VLAN |
| FUNZIONALITA' AVANZATE | |
| Bandwidth control | Multi-Net NAT Virtual Server Port Triggering (only in Standalone Mode) NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Routing | Static Routing OSPF** |
| Session Limit | IP-based Session Limit |
| Bandwidth Control | IP-based Bandwidth Control |
| TRANSMISSION | |
| NAT | IP-based Bandwidth Control |
| NAT | Multi-Net NAT Virtual Server Port Triggering** NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Routing | Static Routing OSPF** |
| Session Limit | IP-based Session Limit |
| AUTHENTICATION | |
| Web Authentication | No Authentication Simple Password△ Hotspot (Local User / Voucher△ / SMS△/ Radius) External Radius Sever External Portal Sever LDAP |
| GESTIONE | |
| Omada App | Yes |
| Centralized Management | Omada Central (Cloud-Based) Omada Hardware Controller Omada Software Controller Omada App |
| Cloud Access | Yes |
| Servizio | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Manutenzione | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) NTP Synchronize Port Mirroring CLI (only in Standalone Mode) Syslog Support |
| Management MAC Access Control | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration |
| ALTRO | |
| Network Services Enabled by Default |
Web Server |
| Certificazione |
CE, NCC, BSMI, RoHS |
| Contenuto della confezione |
ER701-5G-Outdoor Gateway |
| Requisiti di sistema |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 |
| Ambiente |
Operating Temperature: 30 °C to 60 °C (-22 °F to 140 °F) |
