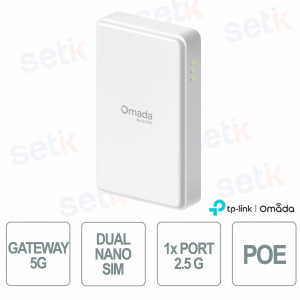

Omada ER701-5G-Outdoor 5G Gateway, up to 7.01 Gbps, 2.5G PoE, Dual SIM, IP66 Outdoor, SDN Cloud Management
The ER701-5G-Outdoor is a professional outdoor 5G gateway designed to offer ultra-high-speed internet connectivity even in areas where wired bandwidth is unavailable . Thanks to 5G NR support up to 7.01 Gbps (SA) and 4.5 Gbps (NSA), it guarantees fast and reliable connections for businesses, construction sites, temporary events and remote installations. It integrates 9 high-performance internal cellular antennas and 1 Wi-Fi antenna for quick configuration , improving mobile signal reception. The presence of a 2.5G PoE In port with 802.3at or Passive PoE support allows power and data transmission via a single Ethernet cable. The IP66 weatherproof design with 6 kV surge protection makes it ideal for outdoor installations. It also supports Dual Nano SIM, Omada SDN centralized management and app-guided antenna alignment for optimal 5G performance and remote network management. Omada
ER701-5G-Outdoor | 5G OUTDOOR GATEWAY

The TP-Link Omada ER701-5G-Outdoor is a professional 5G outdoor gateway designed to provide ultra-fast internet connectivity even where wired bandwidth is unavailable . Thanks to 5G NR support up to 7.01 Gbps (SA) and 4.5 Gbps (NSA), it guarantees high performance for businesses, construction sites, temporary events and remote installations. It integrates 9 high-performance internal cellular antennas and 1 Wi-Fi antenna for quick setup , improving reception and signal stability. The 2.5G PoE In port with 802.3at and Passive PoE support allows power and data via a single Ethernet cable. The IP66 weatherproof design with 6 kV surge protection makes it ideal for outdoor environments. It also supports Dual Nano SIM, centralized management via Omada SDN platform and guided antenna alignment via app for optimized 5G performance and remote network management.
Main specifications:
- 5G NR gateway up to 7.01 Gbps (SA) and 4.5 Gbps (NSA)
- 2.5G Ethernet port with 802.3at PoE or Passive PoE power supply
- 9 internal cellular antennas + 1 Wi-Fi antenna for configuration and setup
- Dual Nano SIM for 5G/4G connectivity with network redundancy
- IP66 weatherproof construction with 6kV lightning protection
- Centralized management via Omada SDN, Web and App
- Flexible installation on wall, pole or window for outdoor environments
Further details
Technical data sheet
| Model | ER701-5G-Outdoor |
| 5G/4G/3G | |
| Network Mode | 5G NR:N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N75/N76/N77/N78 (2100/1800/850/2600/900/800/850/700/2600/2300/2500/150 0/1450/3700/3500 MHz)§ 4G FDD-LTE: B1/B3/B5/B7/B8/B20/B26/B28/B32 (2100/1800/850/2600/900/800/850/700/1500 MHz)§ 4G TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) 3G WCDMA: B1/B5/B8 (2100/850/900 MHz) |
| Speed | 5G NR Speed SA: Downlink: 7.01 Gbps, Uplink: 1.25 Gbps NSA: Downlink: 4.5 Gbps, Uplink: 730 Mbps LTE Speed Downlink: 1.6 Gbps, Uplink: 211 Mbps |
| SIM Type | Dual Nano SIM |
| SAFETY | |
| PPE | Deep Packet Inspection |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | Web Group Filtering (only in Standalone Mode) URL Filtering Web Security (only in Standalone Mode) |
| ARP inspection | Sending GARP Packets ARP Scanning (only in Standalone Mode) IP-MAC Binding |
| Attack defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| HARDWARE FEATURES | |
| Interface | 1×2.5G RJ45 Port |
| Average | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Key | Reset Button |
| Diet | 802.3at PoE: 42-57V 0.6A Passive PoE: 48V 0.375A |
| Flash | 4GB eMMC Flash |
| DRAM | 2GB LPDDR4x |
| LED | System, Network Type, Signal Strength |
| Dimensions (L x W x H) | 7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm) |
| Antenna | 9× internal Cellular antennas 1× internal Wi-Fi antenna |
| SIM card slot | 1×Dual Nano SIM slot |
| Mounting type | Wall/Pole/Window Mounting |
| Max. Power Consumption | 15.3W (802.3at PoE or Passive PoE) |
| PERFORMANCES | |
| Concurrent sessions | 500,000 |
| New Sessions / Second | 6,100 |
| WIRELESS FEATURES | |
| Wireless speed | 2.4 GHz: 150 Mbps† |
| Wireless | 802.11n: 6.5 Mbps to 150 Mbps (MCS0-MCS7, HT20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48,54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps |
| Wireless functionality | Wireless Encryption: WPA/WPA2 Personal SSID: 1 Enable/Disable Wireless Radio Enable/Disable SSID Broadcast Automatic Channel Selection Algorithm Transmit Power Control: Adjust transmit Power on dBm |
| BASIC FUNCTIONS | |
| WAN Connection Type | 5G/4G/3G |
| DHCP | DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
| Stateful ACL | Yes |
| Quality of Service | Yes |
| VLAN Bridge | Yes |
| SMS | Receive / Send SMS |
| VLAN | 802.1Q VLAN |
| ADVANCED FEATURES | |
| Bandwidth control | Multi-Net NAT Virtual Server Port Triggering (only in Standalone Mode) NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Routing | Static Routing OSPF** |
| Session Limit | IP-based Session Limit |
| Bandwidth Control | IP-based Bandwidth Control |
| TRANSMISSION | |
| NAT | IP-based Bandwidth Control |
| NAT | Multi-Net NAT Virtual Server Port Triggering** NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Routing | Static Routing OSPF** |
| Session Limit | IP-based Session Limit |
| Authentication | |
| Web Authentication | No Authentication Simple Password△ Hotspot (Local User / Voucher△ / SMS△/ Radius) External Radius Sever External Portal Server LDAP |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Central (Cloud-Based) Omada Hardware Controller Omada Software Controller Omada App |
| Cloud Access | Yes |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) NTP Synchronize Port Mirroring CLI (only in Standalone Mode) Syslog Support |
| MAC Access Control Management | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration |
| OTHER | |
| Network Services Enabled by Default |
Web Server |
| Certification |
CE, NCC, BSMI, RoHS |
| Package Contents |
ER701-5G-Outdoor Gateway |
| System requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 |
| Environment |
Operating Temperature: 30 °C to 60 °C (-22 °F to 140 °F) |
