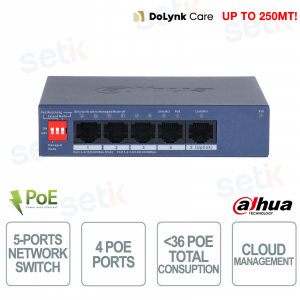

Switch PoE CS4005-4ET1GT-36 Cloud Managed 5 Porte con 4 PoE 36W, VLAN, 250m Long Distance e Watchdog - Dahua
CS4005-4ET1GT-36 - switch è una soluzione professionale per reti IP con gestione cloud tramite piattaforma DoLynk, ideale per videosorveglianza e infrastrutture IT, grazie al controllo remoto in tempo reale e monitoraggio della topologia di rete. Integra 4 porte PoE 10/100 Mbps + 1 porta Gigabit uplink con budget totale 36W, supportando standard IEEE 802.3af/at e trasmissione fino a 250 metri in modalità Long Distance PoE. La presenza del PoE Watchdog automatico garantisce continuità operativa riavviando le porte in errore, mentre la protezione contro sovratensioni fino a 6kV assicura elevata affidabilità. Il design compatto in metallo consente un’operatività stabile con temperature da -10°C a +55°C e funzioni avanzate come VLAN e loop protection, rendendolo perfetto per ambienti business. Dahua
CS4005-4ET1GT-36 | SWITCH DI RETE CLOUD MANAGED 5 PORTE CON 4 PORTE POE - DAHUA

Lo switch Dahua CS4005-4ET1GT-36 è una soluzione avanzata per reti professionali che combina gestione cloud DoLynk con monitoraggio in tempo reale e topologia di rete, ideale per sistemi CCTV e infrastrutture IT. Dotato di 5 porte totali con 4 porte PoE 10/100 Mbps e 1 porta Gigabit uplink, garantisce alimentazione efficiente fino a 36W e trasmissione estesa fino a 250 metri con Long Distance PoE. Integra funzioni intelligenti come PoE Watchdog per il riavvio automatico delle porte e protezione avanzata contro sovratensioni fino a 6kV, assicurando continuità operativa. Il design in metallo e l’ampio range di temperatura lo rendono affidabile in contesti business e industriali, con supporto VLAN e gestione web/cloud.
Specifiche principali:
- Gestione cloud DoLynk con monitoraggio in tempo reale
- 4 porte PoE + 1 porta Gigabit con budget totale 36W
- PoE Watchdog per riavvio automatico delle porte
- Trasmissione PoE fino a 250 metri (Long Distance)
- Protezione contro sovratensioni fino a 6 kV
- Supporto VLAN e loop protection per reti sicure
Ulteriori dettagli
Offre prestazioni elevate con switching capacity di 2.8 Gbps e forwarding rate di 2.08 Mpps, supporto VLAN fino a 32 gruppi e componentistica affidabile, garantendo trasmissione dati fluida e gestione efficiente del traffico.
Scheda tecnica
| PRODUCT | CS4005-4ET1GT-36 |
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 2.8 Gbps |
| Packet Forwarding Rate | 2.08 Mpps |
| Description of Function Slots | Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External power supply: 53 VDC, 0.8 A |
| Power Consumption | Idling: 3 W Full load: 42.4 W |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lighting Protection | Common mode: 6 kV |
| Net Weight | 0.2 kg (0.44 lb) |
| Gross Weight | 0.72 kg (1.59 lb) |
| Product Dimensions | 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H) |
| Packaging Dimensions | 195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
| PoE | |
| PoE | Yes |
| PoE Power | Port 1-4 ≤ 30 W, total ≤ 36 W |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at |
| PoE Power Consumption Management | PoE power consumption management PoE power on/off turns off PoE if overload is detected |
| PoE Pin Assignment | 1, 2, 4, 5(V+), 3, 6, 7, 8(V-) |
| Long Distance PoE Transmission | Yes |
| Hardware | |
| DIP Switch | Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode. PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off) Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off) |
| Reset Button | 1 |
| Performance | |
| MTBF | 232.62 years |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 2K |
| Communication Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az |
| VLAN Number | 32 |
| Feature | |
| VLAN Function | IEEE 802.1Q VLAN |
| Link Aggregation | Static Aggregation |
| Port Feature | IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control MAC+Port Binding Loop Prevention |
| Mirror | Local Port Mirroring N:1 Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation |
| Equipment Management | Web Management Cloud Management Logs Fault Alarm |
| General | |
| Packing List | 1 × Quick Start Guide 1 × Legal and Regulatory Information 1 × Power Cord 1 × Power Adapter |
