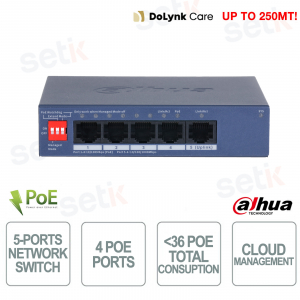

PoE Switch CS4005-4ET1GT-36 Cloud Managed 5 Ports with 4 PoE 36W, VLAN, 250m Long Distance and Watchdog - Dahua

PoE Switch CS4005-4ET1GT-36 Cloud Managed 5 Ports with 4 PoE 36W, VLAN, 250m Long Distance and Watchdog - Dahua

 
-56%

CS4005-4ET1GT-36 - switch is a professional solution for IP networks with cloud management via DoLynk platform , ideal for video surveillance and IT infrastructures, thanks to real-time remote control and network topology monitoring . It integrates 4 10/100 Mbps PoE ports + 1 Gigabit uplink port with a total budget of 36W , supporting IEEE 802.3af/at standards and transmission up to 250 meters in Long Distance PoE mode . The presence of the automatic PoE Watchdog guarantees operational continuity by restarting the faulty ports, while the protection against surges up to 6kV ensures high reliability. The compact metal design allows stable operation with temperatures from -10°C to +55°C and advanced functions such as VLAN and loop protection, making it perfect for business environments. Dahua

Technical Data Sheet

Artikel-Nr.: CS4005-4ET1GT-36

Marke: Dahua

EAN: 6939554913051

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

CS4005-4ET1GT-36 | 5 PORT CLOUD MANAGED NETWORK SWITCH WITH 4 POE PORTS - DAHUA


Dahua

The Dahua CS4005-4ET1GT-36 switch is an advanced solution for professional networks that combines DoLynk cloud management with real-time monitoring and network topology , ideal for CCTV systems and IT infrastructures. Equipped with a total of 5 ports including 4 10/100 Mbps PoE ports and 1 Gigabit uplink port , it guarantees efficient power supply up to 36W and extended transmission up to 250 meters with Long Distance PoE . It integrates intelligent functions such as PoE Watchdog for automatic port restart and advanced protection against surges up to 6kV, ensuring business continuity. The metal design and wide temperature range make it reliable in business and industrial contexts, with VLAN support and web/cloud management.

Main specifications:

- DoLynk cloud management with real-time monitoring

- 4 PoE ports + 1 Gigabit port with a total budget of 36W

- PoE Watchdog for automatic port reboot

- PoE transmission up to 250 meters (Long Distance)

- Surge protection up to 6 kV

- VLAN and loop protection support for secure networks

Further details

✅ Number of doors:
The switch features a total of 5 ports , including 4 10/100 Mbps PoE ports to directly power devices such as IP cameras and 1 Gigabit uplink port , ensuring stable connectivity and efficient network deployment even in professional environments.
✅ Cloud Management:
Thanks to cloud management via the DoLynk platform , it allows real-time monitoring , remote configuration and automatic notifications, improving network control and maintenance even remotely.
✅ Network Topology Management:
It supports LLDP to visualize the complete network topology , allowing you to quickly identify problems and efficiently manage connected devices and infrastructure.
✅ PoE Watchdog :
It integrates the intelligent PoE Watchdog function that monitors the port status and automatically reboots the connected devices in case of malfunctions, reducing manual interventions and downtime.
✅ Loop Protection :
The automatic loop protection system detects network anomalies and activates blocking mechanisms to avoid broadcast storms , ensuring stability and business continuity.
✅ Performance :
 It offers high performance with 2.8 Gbps switching capacity and 2.08 Mpps forwarding rate , VLAN support for up to 32 groups and reliable components, ensuring smooth data transmission and efficient traffic management.

Technical data sheet

PRODUCT CS4005-4ET1GT-36
Basic
Layer Layer 2
Switching Capacity 2.8 Gbps
Packet Forwarding Rate 2.08 Mpps
Description of Function Slots Port 1-4: 4 × RJ-45 10/100 Mbps (PoE)
Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External power supply: 53 VDC, 0.8 A
Power Consumption Idling: 3 W
Full load: 42.4 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV
Net Weight 0.2 kg (0.44 lb)
Gross Weight 0.72 kg (1.59 lb)
Product Dimensions 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Packaging Dimensions 195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
PoE
PoE Yes
PoE Power Port 1-4 ≤ 30W, total ≤ 36W
PoE Protocol IEEE 802.3af; IEEE 802.3at
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment 1, 2, 4, 5（V+）, 3, 6, 7, 8（V-）
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 232.62 years
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 2K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
VLAN Number 32
Feature
VLAN Function IEEE 802.1Q VLAN
Link Aggregation Static Aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
