DS-P8000-X2 è un OLT chassis professionale progettato per reti PON ad alta capacità, con supporto completo Layer 2 e funzionalità Layer 3 avanzate. Offre un’architettura distribuita ad alte prestazioni con capacità di switching fino a 200 Gbit/s per slot di servizio, supporto a schede GPON e XGS-PON/GPON Combo e fino a 32 porte GPON o 32 porte Combo XGS-PON/GPON. La ridondanza con doppia Main Control Unit e doppia alimentazione AC/DC assicura elevata affidabilità, mentre la gestione centralizzata tramite DPMS, SNMP, CLI e Web UI semplifica configurazione, aggiornamenti e monitoraggio multi-sito. Omada

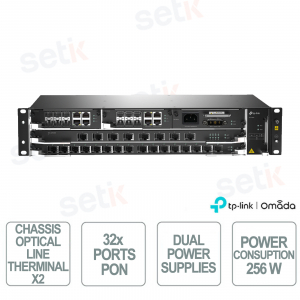

DS-P8000-X2 | DELTA STREAM CHASSIS OPTICAL LINE TERMINAL-X2

Il TP-Link DeltaStream DS-P8000-X2 è un OLT chassis GPON/XGS-PON professionale progettato per reti PON ad alta capacità, con funzionalità Layer 2 complete e Layer 3 avanzate. Supporta fino a 200 Gbit/s di capacità di switching per ogni service slot e consente un’evoluzione flessibile da GPON a XGS-PON tramite sostituzione delle schede di servizio. La struttura ridondata con doppia Main Control Unit e doppia alimentazione AC/DC migliora l’affidabilità e la continuità operativa, mentre la gestione tramite DPMS, SNMP, CLI e Web UI semplifica configurazione, aggiornamenti e monitoraggio centralizzato.
Specifiche principali:
- Switching: fino a 200 Gbit/s per slot
- PON: GPON / XGS-PON Combo
- Porte PON: fino a 32
- Uplink: 6× SFP+ 10G
- Ridondanza: doppia MCU + doppia alimentazione
- Gestione: DPMS, SNMP, CLI, Web UI
- QoS: 802.1p/DSCP, Voice VLAN
- Sicurezza: ACL, 802.1X, IP Source Guard
Ulteriori dettagli
Scheda tecnica
| Model | DS-P8000-X2 |
| CARATTERISTICHE HARDWARE | |
| Interfaccia | 2× Service Boards up to 32× GPON Ports or 32× XGS-PON & GPON Combo Ports* Dual Main Control Unit: Each with 6× 10G SFP+ 1× 1000M RJ45 Port 1× RJ45 Console Port 1× RJ45 Management Port 1× Alarm Port |
| Tasto | Reset Button |
| Alimentazione | Dual Power Supply, AC+DC AC: 100V~240V, 50/60Hz DC: -38.4V~-57.6V |
| Consumo energetico | 2× DS-MCUA + 2× DS-LGPA-16 + DS-PSUA + DS-FANA: Max 262W |
| Dimensioni ( L x P x A ) | Without angle iron and fiber manager: 443 × 271.3 × 88 mm With angle iron, without fiber manager: 446 × 271.3 × 88 mm (excluding angle iron mounting ears) 483 × 271.3 × 88 mm (including angle iron mounting ears) With angle iron and fiber manager: 447.2 × 271.3 × 88 mm (excluding angle iron mounting ears) 484.2 × 271.3 × 88mm (including angle iron mounting ears) |
| CARATTERISTICHE SOFTWARE | |
| Sicurezza | ACL |
| DHCP | DHCP Server DHCP Relay |
| OMCI | Standard OMCI Management |
| ONU Authentication | ONU Auto Authentication |
| ONU Security | Rouge ONU Detection and Isolation |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| QoS | IEEE 802.1p/DSCP QoS Voice VLAN Auto VoIP |
| Routing | Static Routing |
| Mulitcast | IGMP Snooping MLD Snooping |
| Centralized Management | Large-Scale Devices Management OLT Batch Configure, Upgrade, Reboot Multi-Site Management Intelligent Network Monitoring Real-time Network Overview |
| COMBO PON PORT ATTRIBUTE | |
| Max. Splitting Ratio | GPON: 1:128 XGS-PON: 1:256 |
| Transmission distance | 20 km |
| Data rate | GPON Downstream: 2.5 Gbps, Upstream: 1.25 Gbps XGS-PON Downstream: 9.953 Gbps, Upstream: 9.953 Gbps |
| Wave Length | Tx: 1490 nm Rx: 1310 nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| Tx power | Class C+ |
| GPON port attribute | |
| Max. Splitting Ratio | GPON: 1:128 XGS-PON: 1:256 |
| Transmission distance | 20 km |
| Data rate | GPON Downstream: 2.5 Gbps, Upstream: 1.25 Gbps XGS-PON Downstream: 9.953 Gbps, Upstream: 9.953 Gbps |
| Wave Length | Tx: 1490 nm Rx: 1310 nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| Tx power | Class C+ |
| ALTRO | |
| Certificazione |
CE, RoHS |
| Contenuto della confezione |
|
| Ambiente |
|
