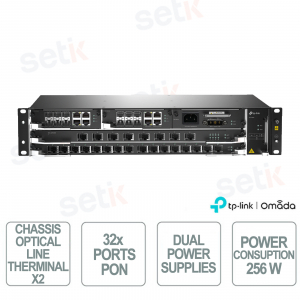

TP-Link DeltaStream DS-P8000-X2 32-Port GPON XGS-PON OLT Chassis with Centralized Management

TP-Link DeltaStream DS-P8000-X2 32-Port GPON XGS-PON OLT Chassis with Centralized Management

Neu

DS-P8000-X2 is a professional OLT chassis designed for high-capacity PON networks, with full Layer 2 support and advanced Layer 3 features . It offers a high-performance distributed architecture with up to 200 Gbit/s switching capacity per service slot , support for GPON and XGS-PON/GPON Combo cards, and up to 32 GPON ports or 32 XGS-PON/GPON Combo ports . Redundancy with dual Main Control Units and dual AC/DC power supplies ensures high reliability, while centralized management via DPMS, SNMP, CLI, and Web UI simplifies multi-site configuration, upgrades, and monitoring. Omada

Technical Data Sheet

Artikel-Nr.: DS-P8000-X2

Marke: OMADA

EAN: 4897098689363

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Ein Schlüsselaspekt von OMADA ist die Fähigkeit, eine zentrale Verwaltung anzubieten. Dies kann über einen dedizierten Hardware-Controller, einen Software-Controller oder den Omada SDN-Cloud-Service erfolgen, der eine zentralisierte Verwaltung von Netzwerken ermöglicht. Die angebotenen Lösungen sind skalierbar und flexibel, so dass sie sich sowohl für kleine Unternehmensnetzwerke als auch für große Implementierungen an mehreren Standorten eignen.

OMADA umfasst Wireless-Lösungen mit leistungsstarken Wi-Fi-Zugangspunkten, die eine zuverlässige Hochgeschwindigkeitsabdeckung gewährleisten. Darüber hinaus bietet das Unternehmen verwaltete Switches und Gateway-Router mit fortschrittlichen Funktionen für Datenverkehrsmanagement, Sicherheit und Quality of Service (QoS).

Sicherheit ist eine weitere Stärke der OMADA-Lösungen, die fortschrittliche Funktionen wie Firewalls, VPNs und Zugriffskontrolle zum Schutz von Unternehmensnetzwerken umfassen. Darüber hinaus ermöglicht die Cloud-Plattform von OMADA die Fernkonfiguration und -überwachung von Netzwerken und bietet damit große Flexibilität beim IT-Management.

Für Unternehmen bietet OMADA eine Lösung, mit der die Betriebskosten durch ein zentrales Management gesenkt und die Netzwerkwartung vereinfacht werden kann. Hochwertige Hardware-Komponenten sorgen für eine stabile und zuverlässige Leistung, während intuitive Schnittstellen und Management-Tools die Netzwerkadministration auch für technisch nicht versiertes Personal erleichtern.

Zu den Kernprodukten von OMADA gehören Access Points für den Innen- und Außenbereich mit fortschrittlichen Technologien wie Wi-Fi 6, verwaltete Switches mit Layer 2- und Layer 3-Funktionen sowie Sicherheits- und Routing-Geräte für die Verwaltung des Netzwerkverkehrs und den Schutz vor Bedrohungen. OMADA-Lösungen werden häufig in Unternehmen zur Verwaltung interner Netzwerke, in Schulen und Universitäten zur Bereitstellung von Wi-Fi-Verbindungen für Studenten und Mitarbeiter und in Hotels zur Bereitstellung einer stabilen und schnellen Internetverbindung für Gäste eingesetzt.

[short_description] =>

Tp-Link Omada

OMADA ist eine Marke von TP-Link für Netzwerkmanagement-Lösungen für Unternehmen. Das OMADA-System umfasst sowohl Hardware als auch Software zur Zentralisierung der Verwaltung von drahtlosen Netzwerken, Switching und Gateways. Dieser Ansatz wurde entwickelt, um die Kontrolle und Verwaltung von Netzwerkinfrastrukturen zu verbessern, insbesondere in Unternehmensumgebungen.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DS-P8000-X2 | DELTA STREAM CHASSIS OPTICAL LINE TERMINAL-X2


Made Omada

The TP-Link DeltaStream DS-P8000-X2 is a professional GPON/XGS-PON OLT chassis designed for high-capacity PON networks, with comprehensive Layer 2 and advanced Layer 3 functionality . It supports up to 200 Gbps of switching capacity for each service slot and enables flexible evolution from GPON to XGS-PON by replacing service cards. The redundant structure with dual Main Control Units and dual AC/DC power supplies improves reliability and business continuity, while management via DPMS, SNMP, CLI and Web UI simplifies configuration, upgrades and centralized monitoring.

Main specifications:

  • Switching: up to 200 Gbit/s per slot
  • PON: GPON / XGS-PON Combo
  • PON ports: up to 32
  • Uplink: 6× SFP+ 10G
  • Redundancy: Dual MCU + Dual Power Supply
  • Management: DPMS, SNMP, CLI, Web UI
  • QoS: 802.1p/DSCP, Voice VLAN
  • Security: ACL, 802.1X, IP Source Guard

Further details

Switching:
The high-performance distributed architecture supports up to 200 Gbit/s switching capacity for each service slot , enabling the system to handle high traffic volumes in fiber access networks.
PON:
It supports GPON and XGS-PON & GPON Combo service boards , allowing the OLT to be adapted to different network needs and flexibly upgraded from GPON to XGS-PON by replacing the Service Board.
PON ports:
The DS-P8000-X2 can support up to 32 GPON ports or 32 XGS-PON & GPON Combo ports , providing high access capacity for ONU management in fiber infrastructure.
Uplink:
The DS-MCUA Main Control Unit provides 6 x 10Gbps SFP+ ports and 1 x 10/100/1000Mbps RJ45 port , providing high-speed interfaces for connecting the OLT to the upstream network.
Redundancy:
The Carrier-Class design integrates dual Main Control Units and dual redundant power supplies , helping to maintain service continuity during upgrades or in the event of a single component failure; Load Balance, Link Backup and ISSU are also supported.
Management:
It offers centralized management via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI , with large-scale management, OLT configuration, batch upgrade and reboot, multi-site management , intelligent monitoring and real-time network overview.
QoS:
It integrates IEEE 802.1p/DSCP QoS , Voice VLAN , and Auto VoIP capabilities , allowing you to classify and prioritize network traffic and optimize the management of latency-sensitive services, such as VoIP communications.

Technical data sheet

Model DS-P8000-X2
HARDWARE FEATURES
Interface 2× Service Boards up to 32× GPON Ports or 32× XGS-PON & GPON Combo Ports*
Dual Main Control Unit:
Each with
6× 10G SFP+
1× 1000M RJ45 Port
1× RJ45 Console Port
1× RJ45 Management Port
1× Alarm Port
Key Reset Button
Diet Dual Power Supply, AC+DC
AC: 100V~240V, 50/60Hz
DC: -38.4V~-57.6V
Energy consumption 2× DS-MCUA + 2× DS-LGPA-16 + DS-PSUA + DS-FANA: Max 262W
Dimensions (L x W x H) Without angle iron and fiber manager:
443 × 271.3 × 88 mm
With angle iron, without fiber manager:
446 × 271.3 × 88 mm (excluding angle iron mounting ears)
483 × 271.3 × 88 mm (including angle iron mounting ears)
With angle iron and fiber manager:
447.2 × 271.3 × 88 mm (excluding angle iron mounting ears)
484.2 × 271.3 × 88mm (including angle iron mounting ears)
SOFTWARE FEATURES
Safety ACL
DHCP DHCP Server
DHCP Relay
OMCI OMCI Management Standard
UN Authentication UN Auto Authentication
UN Security Rouge ONU Detection and Isolation
Multi-Service Multi-Service Traffic Identify and Rate Limit
QoS IEEE 802.1p/DSCP QoS
Voice VLAN
Auto VoIP
Routing Static Routing
Multicast IGMP Snooping
MLD Snooping
Centralized Management Large-Scale Devices Management
OLT Batch Configure, Upgrade, Reboot
Multi-Site Management
Intelligent Network Monitoring
Real-time Network Overview
COMBO PON PORT ATTRIBUTE
Max. Splitting Ratio GPON: 1:128
XGS-PON: 1:256
Transmission distance 20 km
Data rate GPON
Downstream: 2.5 Gbps, Upstream: 1.25 Gbps
XGS-PON
Downstream: 9.953 Gbps, Upstream: 9.953 Gbps
Wave Length Tx: 1490 nm
Rx: 1310 nm
Interface type SC/UPC
Fiber type 9/125μm SMF (Single Mode Fiber)
Tx power Class C+
GPON port attribute
Max. Splitting Ratio GPON: 1:128
XGS-PON: 1:256
Transmission distance 20 km
Data rate GPON
Downstream: 2.5 Gbps, Upstream: 1.25 Gbps
XGS-PON
Downstream: 9.953 Gbps, Upstream: 9.953 Gbps
Wave Length Tx: 1490 nm
Rx: 1310 nm
Interface type SC/UPC
Fiber type 9/125μm SMF (Single Mode Fiber)
Tx power Class C+
OTHER
Certification

CE, RoHS

Package Contents
  • Chassis Optical Line Terminal DS-P8000-X2
  • AC Power Cord
  • DC Power Cord
  • Console Cable
  • Installation Guide
  • Fiber Manager and Ground Wire
  • Mouting Brackets, Screws and Rubber Feet
  • ESD-Preventive Wrist Wrap
Environment
  • Operating Temperature: 0℃–50℃ (32℉–122℉)
  • Storage Temperature: -40°C–70°C (-40°F–158°F)
  • Operating Humidity: 10%–90% non-condensing
  • Storage Humidity: 5%–90% non-condensing
