DS-LGPA-16 è una scheda di servizio GPON a 16 porte progettata per OLT chassis TP-Link, con velocità per porta fino a 2,488 Gbps in downstream e 1,244/1,25 Gbps in upstream. Supporta un rapporto di splitting fino a 1:128 per porta e una distanza di trasmissione fino a 20 km, offrendo elevata scalabilità nelle infrastrutture in fibra. Integra hot swapping, funzionalità Layer 2 e Layer 3 avanzate, QoS 802.1p/DSCP, Voice VLAN e Auto VoIP. La gestione centralizzata tramite DPMS, SNMP, CLI e Web UI semplifica configurazione, monitoraggio e amministrazione delle reti GPON professionali. Omada
Scheda Tecnica non disponibile

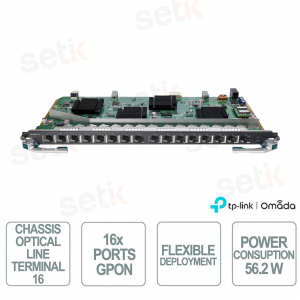

DS-LGPA-16 | DELTA STREAM CHASSIS OPTICAL LINE TERMINAL 16 GPON SERVICE BOARD

La TP-Link DeltaStream DS-LGPA-16 è una scheda di servizio GPON a 16 porte per OLT chassis TP-Link, progettata per infrastrutture in fibra professionali ad alta scalabilità. Ogni porta offre velocità fino a 2,488 Gbps in downstream e 1,25 Gbps in upstream, con splitting 1:128 e trasmissione fino a 20 km. Supporta hot swapping, funzioni Layer 2 e Layer 3 avanzate, autenticazione automatica ONU e QoS 802.1p/DSCP. La gestione centralizzata tramite DPMS, SNMP, CLI e Web UI facilita configurazione, monitoraggio e amministrazione della rete.
Specifiche principali:
- Porte: 16× GPON
- Velocità: 2,488/1,25 Gbps
- Splitting: fino a 1:128
- Distanza: fino a 20 km
- Installazione: Hot Swappable
- QoS: IEEE 802.1p/DSCP
- ONU: autenticazione automatica
- Gestione: DPMS, SNMP, CLI, Web UI
Ulteriori dettagli
Scheda tecnica
| Model | DS-LGPA-16 |
| CARATTERISTICHE HARDWARE | |
| Interfaccia | 16× GPON Ports |
| Alimentazione | Power Supplies: via DS-PSUA Module DC: -38.4V~-57.6V |
| Consumo energetico | Max. 56.2W |
| Hot Swappable | Yes |
| Dimensioni ( L x P x A ) | 15.4 × 10.1 × 0.9 in (390.8 mm × 257.5 mm × 22.5 mm) |
| CARATTERISTICHE SOFTWARE | |
| Sicurezza | ACL 802.1x Authentication |
| DHCP | DHCP Server DHCP Relay |
| OMCI | Standard OMCI Management Supported |
| ONU Authentication | ONU Auto Authentication |
| ONU Security | Rouge ONU Detection and Isolation |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| QoS | IEEE 802.1p/DSCP QoS Voice VLAN Auto VoIP |
| Routing | Static Routing |
| Mulitcast | IGMP Snooping MLD Snooping |
| Centralized Management | Large-Scale Devices Management OLT Batch Configure, Upgrade, Reboot Multi-Site Management Intelligent Network Monitoring Real-time Network Overview |
| COMBO PON PORT ATTRIBUTE | |
| Max. Splitting Ratio | GPON: 1:128 |
| Transmission distance | 20 km |
| Data rate | GPON Downstream: 2.488 Gbps, Upstream: 1.25 Gbps *Per Port |
| Wave Length | Tx: 1490 nm Rx: 1310 nm |
| ALTRO | |
| Certificazione |
CE, RoHS |
| Contenuto della confezione | GPON Service Board DS-LGPA-16 |
| Ambiente |
|
