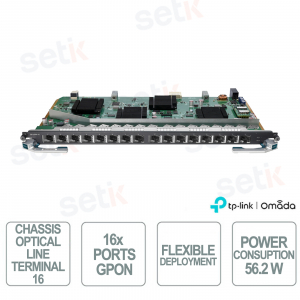

TP-Link DeltaStream DS-LGPA-16 GPON Card 16 Ports 20 km Split 1:128 for OLT Chassis

TP-Link DeltaStream DS-LGPA-16 GPON Card 16 Ports 20 km Split 1:128 for OLT Chassis

Neu

DS-LGPA-16 is a 16-port GPON service card designed for TP-Link OLT chassis, with per-port speeds of up to 2.488 Gbps downstream and 1.244/1.25 Gbps upstream . It supports a splitting ratio of up to 1:128 per port and a transmission distance of up to 20 km , providing high scalability in fiber infrastructures. It integrates hot swapping , advanced Layer 2 and Layer 3 features, 802.1p/DSCP QoS , Voice VLAN and Auto VoIP. Centralized management via DPMS, SNMP, CLI and Web UI simplifies the configuration, monitoring and administration of professional GPON networks. Omada

Technical data sheet not available

Artikel-Nr.: DS-LGPA-16

Marke: OMADA

EAN: 4897098689462

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Ein Schlüsselaspekt von OMADA ist die Fähigkeit, eine zentrale Verwaltung anzubieten. Dies kann über einen dedizierten Hardware-Controller, einen Software-Controller oder den Omada SDN-Cloud-Service erfolgen, der eine zentralisierte Verwaltung von Netzwerken ermöglicht. Die angebotenen Lösungen sind skalierbar und flexibel, so dass sie sich sowohl für kleine Unternehmensnetzwerke als auch für große Implementierungen an mehreren Standorten eignen.

OMADA umfasst Wireless-Lösungen mit leistungsstarken Wi-Fi-Zugangspunkten, die eine zuverlässige Hochgeschwindigkeitsabdeckung gewährleisten. Darüber hinaus bietet das Unternehmen verwaltete Switches und Gateway-Router mit fortschrittlichen Funktionen für Datenverkehrsmanagement, Sicherheit und Quality of Service (QoS).

Sicherheit ist eine weitere Stärke der OMADA-Lösungen, die fortschrittliche Funktionen wie Firewalls, VPNs und Zugriffskontrolle zum Schutz von Unternehmensnetzwerken umfassen. Darüber hinaus ermöglicht die Cloud-Plattform von OMADA die Fernkonfiguration und -überwachung von Netzwerken und bietet damit große Flexibilität beim IT-Management.

Für Unternehmen bietet OMADA eine Lösung, mit der die Betriebskosten durch ein zentrales Management gesenkt und die Netzwerkwartung vereinfacht werden kann. Hochwertige Hardware-Komponenten sorgen für eine stabile und zuverlässige Leistung, während intuitive Schnittstellen und Management-Tools die Netzwerkadministration auch für technisch nicht versiertes Personal erleichtern.

Zu den Kernprodukten von OMADA gehören Access Points für den Innen- und Außenbereich mit fortschrittlichen Technologien wie Wi-Fi 6, verwaltete Switches mit Layer 2- und Layer 3-Funktionen sowie Sicherheits- und Routing-Geräte für die Verwaltung des Netzwerkverkehrs und den Schutz vor Bedrohungen. OMADA-Lösungen werden häufig in Unternehmen zur Verwaltung interner Netzwerke, in Schulen und Universitäten zur Bereitstellung von Wi-Fi-Verbindungen für Studenten und Mitarbeiter und in Hotels zur Bereitstellung einer stabilen und schnellen Internetverbindung für Gäste eingesetzt.

[short_description] =>

Tp-Link Omada

OMADA ist eine Marke von TP-Link für Netzwerkmanagement-Lösungen für Unternehmen. Das OMADA-System umfasst sowohl Hardware als auch Software zur Zentralisierung der Verwaltung von drahtlosen Netzwerken, Switching und Gateways. Dieser Ansatz wurde entwickelt, um die Kontrolle und Verwaltung von Netzwerkinfrastrukturen zu verbessern, insbesondere in Unternehmensumgebungen.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DS-LGPA-16 | DELTA STREAM CHASSIS OPTICAL LINE TERMINAL 16 GPON SERVICE BOARD


Made Omada

The TP-Link DeltaStream DS-LGPA-16 is a 16-port GPON service card for TP-Link OLT chassis, designed for highly scalable professional fiber infrastructures. Each port offers speeds of up to 2.488 Gbps downstream and 1.25 Gbps upstream , with 1:128 splitting and transmission distances of up to 20 km . It supports hot swapping , advanced Layer 2 and Layer 3 functions, automatic ONU authentication and 802.1p/DSCP QoS . Centralized management via DPMS, SNMP, CLI and Web UI facilitates network configuration, monitoring and administration.

Main specifications:

  • Ports: 16× GPON
  • Speed: 2.488/1.25 Gbps
  • Splitting: up to 1:128
  • Distance: up to 20 km
  • Installation: Hot Swappable
  • QoS: IEEE 802.1p/DSCP
  • UN: Automatic Authentication
  • Management: DPMS, SNMP, CLI, Web UI

Further details

Number of doors:
The TP-Link DeltaStream DS-LGPA-16 integrates 16 GPON ports , designed to provide high-capacity fiber connectivity within compatible TP-Link OLT chassis.
Speed:
Each GPON port supports data rates up to 2.488 Gbps downstream and 1.25 Gbps upstream , providing high performance for fiber optic network service deployment .
Splitting:
It supports a maximum splitting ratio of 1:128 for each GPON port , allowing the optical link to be distributed to a large number of ONUs and making the infrastructure easily scalable.
Distance:
It allows a transmission distance of up to 20 km , a feature that allows the creation of extended GPON infrastructures to connect users and devices distributed over large geographical areas.
QoS:
It integrates IEEE 802.1p/DSCP QoS , Voice VLAN and Auto VoIP , features dedicated to traffic classification and prioritization for optimized management of different network services.
Management:
It supports centralized management with large-scale management functions, OLT configuration, batch upgrade and reboot, multi-site management , intelligent monitoring and real-time network overview; the card can be administered via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI .

Technical data sheet

Model DS-LGPA-16
HARDWARE FEATURES
Interface 16× GPON Ports
Diet Power Supplies: via DS-PSUA Module
DC: -38.4V~-57.6V
Energy consumption Max. 56.2W
Hot Swappable Yes
Dimensions (L x W x H) 15.4 × 10.1 × 0.9 in (390.8 mm × 257.5 mm × 22.5 mm)
SOFTWARE FEATURES
Safety ACL
802.1x Authentication
DHCP DHCP Server
DHCP Relay
OMCI OMCI Management Supported Standard
UN Authentication UN Auto Authentication
UN Security Rouge ONU Detection and Isolation
Multi-Service Multi-Service Traffic Identify and Rate Limit
QoS IEEE 802.1p/DSCP QoS
Voice VLAN
Auto VoIP
Routing Static Routing
Multicast IGMP Snooping
MLD Snooping
Centralized Management Large-Scale Devices Management
OLT Batch Configure, Upgrade, Reboot
Multi-Site Management
Intelligent Network Monitoring
Real-time Network Overview
COMBO PON PORT ATTRIBUTE
Max. Splitting Ratio GPON: 1:128
Transmission distance 20 km
Data rate GPON
Downstream: 2.488 Gbps, Upstream: 1.25 Gbps
*For Port
Wave Length Tx: 1490 nm
Rx: 1310 nm
OTHER
Certification

CE, RoHS

Package Contents GPON Service Board DS-LGPA-16
Environment
  • Operating Temperature: 0℃–50℃ (32℉–122℉)
  • Storage Temperature: -40°C–70°C (-40°F–158°F)
  • Operating Humidity: 10%–90% non-condensing
  • Storage Humidity: 5%–90% non-condensing
