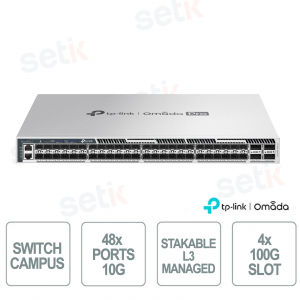

S7500-48XF4C è uno switch L3 gestito e impilabile progettato per reti enterprise e campus ad alte prestazioni, con 48 slot SFP+ 1/10G e 4 slot QSFP28 40/100G. Offre una capacità di switching fino a 1,36 Tbps e supporta lo stacking fisico per realizzare infrastrutture scalabili e ad alta disponibilità. Integra funzionalità Layer 3 avanzate per il routing dinamico, sistemi di ridondanza per garantire continuità operativa e funzionalità di sicurezza enterprise. La gestione centralizzata tramite Omada Pro SDN semplifica configurazione, monitoraggio e amministrazione della rete. Omada
Scheda Tecnica non disonibile
S7500-48XF4C | SWITCH 48 PORTE 10G STACKABLE

L’Omada S7500-48XF4C è uno switch L3 managed stackable progettato per i livelli aggregation e core di reti enterprise, campus e ISP. Integra 48 slot SFP+ 1/10G e 4 slot QSFP28 40/100G, con una capacità di switching fino a 1,76 Tbps e forwarding di 600 Mpps. Supporta stacking fisico fino a 12 unità, routing avanzato con OSPF, BGP, IS-IS, VRF, VRRP, ECMP e PBR, oltre a M-LAG e alimentazione ridondante Hot-Swap. La gestione centralizzata tramite Omada Pro SDN completa una soluzione scalabile, sicura e ad alte prestazioni.
Specifiche principali:
- Porte: 48× SFP+ + 4× QSFP28
- Velocità: fino a 100 Gbps
- Switching: 1,76 Tbps
- Forwarding: 600 Mpps
- Stacking: fino a 12 unità
- Layer 3: routing avanzato
- Ridondanza: M-LAG + PSU Hot-Swap
- Gestione: Omada Pro SDN
Ulteriori dettagli
Scheda tecnica
| Model | S7500-48XF4C |
| CARATTERISTICHE HARDWARE | |
| Interfaccia |
|
| Numero ventole | Five Field-replaceable and Hot-swappable Fans |
| Alimentazione | Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz) *Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately. |
| Dimensioni ( L x P x A ) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
| Tipo di montaggio | Rackmountable |
| Max. Power Consumption | 105.7 W (110 V/60 Hz) 109.3 W (220 V/50 Hz) |
| Max. Heat Dissipation | 360.7 BTU/hr (110 V/60 Hz) 372.9 BTU/hr (220 V/50 Hz) |
| PRESTAZIONI | |
| Buffer (pacchetti) | 10 MB |
| Jumbo frame | 9 KB |
| Stacking |
|
| Capacità di switching | 1760 Gbps per Unit |
| Packet Forwarding Rate | 600 Mpps |
| Tabella ARP | 128 K |
| CARATTERISTICHE SOFTWARE | |
| QoS (Quality of Service) |
|
| Caratteristiche L3 |
|
| Funzionalità L2 e L2+ |
|
| Caratteristiche avanzate |
|
| VLAN |
|
| Sicurezza |
- ARP Scanning - Manual Binding - DHCP Snooping
- DHCPv6 Snooping - Manual Binding - ND Snooping
- Radius Accounting - Radius Server Load Balancing - RADSEC - Guest VLAN - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support
|
| GESTIONE | |
| Omada App | Yes, through Omada Pro Controller |
| Centralized Management |
|
| Cloud Access | Yes, through Omada Pro Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Pro Cloud-Based Controller. |
| Management Features |
- RMON (1, 2, 3, 9 groups)
|
| ALTRO | |
| Contenuto della confezione |
|
| Requisiti di sistema | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Ambiente |
-5 ℃ to 40 ℃ (23 ℉ to 104 ℉) @ 2,000 meters -5 ℃ to 35 ℃ (23 ℉ to 95 ℉) @ 3,000 meters
|
