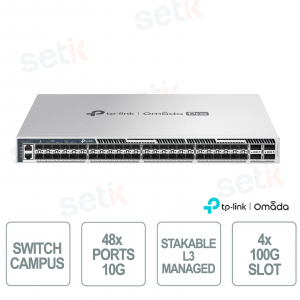

Omada S7500-48XF4C Switch L3 48 SFP+ 10G and 4 QSFP28 100G

Omada S7500-48XF4C Switch L3 48 SFP+ 10G and 4 QSFP28 100G

 
New

The S7500-48XF4C is a stackable, managed L3 switch designed for high-performance enterprise and campus networks, with 48 1/10G SFP+ slots and 4 40/100G QSFP28 slots . It offers up to 1.36 Tbps of switching capacity and supports physical stacking to build scalable, highly available infrastructures. It integrates advanced Layer 3 features for dynamic routing, redundancy systems to ensure business continuity, and enterprise security features. Centralized management via Omada Pro SDN simplifies network configuration, monitoring, and administration. Omada

Technical data sheet not available

Reference: S7500-48XF4C

Brand: OMADA

EAN: 4895252505375

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

A key aspect of OMADA is its ability to offer centralised management. This can be done through a dedicated hardware controller, a software controller, or the Omada SDN cloud service, which enables centralised management of networks. The solutions offered are scalable and flexible, making them suitable for both small corporate networks and large multi-site deployments.

OMADA includes wireless solutions with high-performance Wi-Fi access points, ensuring reliable, high-speed coverage. In addition, it offers managed switches and gateway routers with advanced traffic management, security and quality of service (QoS) features.

Security is another strong point of OMADA's solutions, which include advanced features such as firewalls, VPNs and access control to protect corporate networks. In addition, OMADA's cloud platform enables remote configuration and monitoring of networks, offering great flexibility in IT management.

For businesses, OMADA provides a solution that can reduce operating costs through centralised management that simplifies network maintenance. High-quality hardware components ensure stable and reliable performance, while intuitive interfaces and management tools make network administration easier even for non-technical staff.

OMADA's core products include indoor and outdoor access points with advanced technologies such as Wi-Fi 6, managed switches with Layer 2 and Layer 3 capabilities, and security and routing devices for network traffic management and threat protection. OMADA solutions are commonly used in corporate offices to manage internal networks, in schools and universities to provide Wi-Fi connections for students and staff, and in hotels to offer a stable and fast Internet connection to guests.

[short_description] =>

Tp-Link Omada

OMADA is a TP-Link brand of enterprise network management solutions. The OMADA system includes both hardware and software designed to centralise the management of wireless networks, switching and gateways. This approach is designed to improve the control and management of network infrastructures, particularly in enterprise environments.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


S7500-48XF4C | 48 PORT 10G STACKABLE SWITCH


Made Omada

The Omada S7500-48XF4C is a stackable L3 managed switch designed for the aggregation and core layers of enterprise, campus, and ISP networks. It integrates 48 1/10G SFP+ slots and 4 40/100G QSFP28 slots , with a switching capacity of up to 1.76 Tbps and forwarding of 600 Mpps . It supports physical stacking of up to 12 units , advanced routing with OSPF, BGP, IS-IS, VRF, VRRP, ECMP, and PBR , as well as M-LAG and hot-swappable redundant power. Centralized management via Omada Pro SDN completes a scalable, secure, and high-performance solution.

Main specifications:

  • Ports: 48× SFP+ + 4× QSFP28
  • Speed: up to 100 Gbps
  • Switching: 1.76 Tbps
  • Forwarding: 600 Mpps
  • Stacking: up to 12 units
  • Layer 3: Advanced Routing
  • Redundancy: M-LAG + Hot-Swap PSU
  • Management: Omada Pro SDN

Further details

✅ Number of doors:
The Omada S7500-48XF4C integrates 48 1/10 Gbps SFP+ slots and 4 40/100 Gbps QSFP28 slots , as well as dedicated USB, console and management ports, providing high-density connectivity for aggregation and core networks .
✅ Speed:
It supports connections up to 10 Gbps on SFP+ ports and up to 100 Gbps on QSFP28 ports , enabling ultra-high-speed uplinks for enterprise, campus, and ISP network backbones.
✅ Switching:
It offers a switching capacity of 1760 Gbps (1.76 Tbps) per unit , designed to handle high volumes of traffic in professional network infrastructures.
✅ Forwarding:
It achieves a Packet Forwarding Rate of 600 Mpps , ensuring high packet processing and forwarding capacity in high-performance networks.
✅ Stacking:
It supports physical stacking of up to 12 units in standalone mode , using 100G QSFP28 slots , with a stack bandwidth of up to 800 Gbps via four stacking ports.
✅ Layer 3:
It integrates advanced L3 routing capabilities with protocols and technologies such as OSPFv2/v3, BGP, IS-IS, VRF, VRRP, ECMP, PBR and PIM , enabling the creation of dynamic, scalable and complex networks.
✅ Redundancy:
It supports M-LAG, VRRP, ERPS and BFD and features two replaceable and hot-swappable power modules , increasing reliability and operational continuity; the second redundant power supply must be purchased separately.
✅ Security:
It offers enterprise features such as Secure Boot, RADSEC, 802.1X, Dynamic ARP Inspection, IP-MAC-Port Binding, DoS Defend, Port Security, AAA and SSHv2 , dedicated to protecting access, devices and network infrastructure.

Technical data sheet

Model S7500-48XF4C
HARDWARE FEATURES
Interface
  • 48× 1/10Gbps SFP+ Slots**
  • 4× 40/100Gbps QSFP28 Slots
  • 2× USB 3.0 Ports
  • 1× RJ45 Console Port
  • 1× USB Type-C Console Port
  • 1× RJ45 Management Port
Number of fans Five Field-replaceable and Hot-swappable Fans
Diet Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz)
*Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
Dimensions (L x W x H) 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting type Rackmountable
Max. Power Consumption 105.7 W (110 V/60 Hz)
109.3 W (220 V/50 Hz)
Max. Heat Dissipation 360.7 BTU/hr (110V/60Hz)
372.9 BTU/hr (220V/50Hz)
PERFORMANCES
Buffer (packets) 10 MB
Jumbo frame 9 KB
Stacking
  • Stacking Number: 12 (standalone mode)
  • Stacking Port: 100G QSFP28 Slot (all uplink ports can be used as stacking ports)***
  • Stack Bandwidth: Up to 800 Gbps (4 stacking ports)
Switching capacity 1760 Gbps per Unit
Packet Forwarding Rate 600 Mpps
ARP Table 128 K
SOFTWARE FEATURES
QoS (Quality of Service)
  • Class of Service
  • Priority Queues: 8 Queues
  • Port Priority
  • IEEE 802.1p Priority
  • DSCP Priority
  • Queue Min-Bandwidth
  • Schedule Mode (SP, WRR, SP+WRR)
  • Bandwidth Control
  • Rate Limit
  • Storm Control
  • Voice VLAN
  • User-Defined OUI
  • Smoother Performance
  • Action for Flows
  • QoS remark (802.1P Remark, DSCP Remark)
L3 Features
  • L3 Interface: 256 (IPv4,IPv6)
  • Static Routes: 2,048 IPv4, 1,024 IPv6
  • Host Route Table: Max 22,528 entries
  • IPv4 Network Router Entries: Max 40,960 (shared with IPv6 Network Router entries)
  • IPv6 Network Router Entries: Max 40,960 (shared with IPv4 Network Router entries)
  • ECMP: 768 entries, max 32 ECMP Nexthops per Destination
  • Static ARP: 1,024 static entries
  • Dynamic ARP: 45,056 dynamic entries
  • ND: 45,056
  • DHCP Server: Max 64 IP pools, Max 8,000 IP entries
  • DHCPv4/v6 Relay
  • VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance
  • OSPFv2
  • OSPF Instance: 16
  • Network Entries: 256 entries
  • Area Entries for Stub or NSSA: 16 per instance
  • Area Range Entries: 16 per instance
  • Virtual-link Entries: 16 per instance
  • OSPFv3
  • Area Entries for Stub or NSSA: 16 per instance
  • Area Range Entries: 16 per instance
  • RIPv1/v2
  • Network Entries: 256
  • Redistribute Entries: 20
  • RIPng
  • IS-IS
  • IS-IS Interfaces: 128
  • IS-IS Area Numbers: 3
  • Max Redistribute Configs: 10
  • IS-IS IPV6
  • IS-IS BFD
  • BGP: Max 20 redistribute configs
  • PIM-SM/PIM-DM/PIM-SSM
  • IP Multicast Route Entries: 1K
  • PIM Neighbors: 256
  • Max PIM Interfaces: 128
  • IGMP: Version v1/v2/v3, Max 2,048 multicast groups
  • BFD: 16 template numbers, 8 session numbers
  • PBR
  • uRPF
L2 and L2+ functionality
  • Link Aggregation
  • Spanning Tree Protocol
  • Port-based and VLAN-based Loopback Detection
  • 802.3x Flow Control
  • ERPS
  • Mirroring
  • RSPAN
  • MAC Address Table
  • Multicast
  • IGMP Snooping
  • MLD Snooping
  • Multicast VLAN Registration (MVR)
  • Max Multicast Table: 4K (IPv4, IPv6)
  • Fast Leave
  • Static Multicast Groups
  • Multicast Filtering
  • IGMP Snooping Authentication
Advanced Features
  • Automatic Device Discovery‡
  • Batch Configuration‡
  • Batch Firmware Upgrading‡
  • Intelligent Network Monitoring‡
  • Abnormal Event Warnings‡
  • Unified Configuration‡
  • Reboot Schedule‡
ISP Features:
  • 802.3ah Ethernet Link OAM
  • L2PT (Layer 2 Protocol Tunneling)
  • Device Link Detect Protocol (DLDP)
  • DDM
  • sFlow
VLAN
  • 802.1Q VLAN(802.1q): 4K VLANs
  • MAC VLAN: 200 entries
  • Protocol VLAN (IEEE 802.1v)
  • 16 Protocol VLAN Templates
  • 12 Protocol VLAN Groups
  • QinQ(VLAN VPN): 256 entries
  • Private VLAN
  • GVRP
Safety
  • Port Isolation
  • CPU-Defend
  • ARP Inspection (Dynamic ARP Inspection)
  • DoS Defend
  • IP-MAC-Port Binding
-1,024 Entries
- ARP Scanning
- Manual Binding
- DHCP Snooping
  • IPv6-MAC-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- Manual Binding
- ND Snooping
  • ARP Inspection (Dynamic ARP Inspection)
  • ND Detection
  • IP Source Guard
  • IPv6 Source Guard
  • RA Guard: 30 entries
  • DoS Defend
  • DHCP Filter
  • 802.1X
- Radius Authentication
- Radius Accounting
- Radius Server Load Balancing
- RADSEC
- Guest VLAN
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
  • AAA (including TACACS+)
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv2
  • IP/Port/MAC-based access control
  • Secure boot
  • RADSEC
MANAGEMENT
Omada App Yes, through Omada Pro Controller
Centralized Management
  • Omada Pro Cloud-Based Controller
  • Omada Pro Hardware Controller
  • Omada Pro Software Controller
Cloud Access Yes, through Omada Pro Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features
  • Web-based GUI
  • Command Line Interface (CLI) through console port, telnet
  • SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP Auto Install
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Password Recovery
  • SNTP
  • System Log
OTHER
Package Contents
  • S7500-48XF4C Switch
  • Power Cord
  • RJ45 Console Cable
  • Locking Strap
  • Rackmount Kit
  • Rubber Feet
  • Quick Installation Guide
System requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
  • Operating Temperature:
-5 ℃ to 45 ℃ (23 ℉ to 113 ℉) @ 300 meters
-5 ℃ to 40 ℃ (23 ℉ to 104 ℉) @ 2,000 meters
-5 ℃ to 35 ℃ (23 ℉ to 95 ℉) @ 3,000 meters
  • Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
