Il LR2226-24ET-360-V2 di Dahua, è uno switch di rete industriale 26 Porte (16 PoE + 8 porte ePoE). Potenza totale massima 360W, trasmissioni veloci a tassi di 10 / 100 / 1000 Mbps anche fino a 800metri di distanza, ideale per estendere la rete domestica o aziendale. Supporto PoE, PoE+, Hi-PoE. LR2226-24ET-360-V2
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

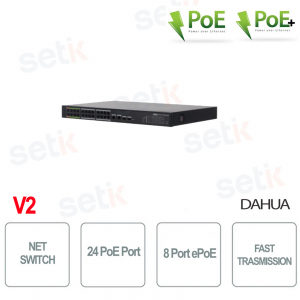

SWITCH DI RETE INDUSTRIALE 16 PORTE POE + 8 PORTE ePOE - DAHUA

16 Porte PoE + 8 Porte ePoE - Trasmissioni veloci 10 / 100 / 1000 Mbps fino a 800metri
Presenti 2 porte arancioni (tra le 24 PoE) utili per dispositivi Hi-PoE - Potenza totale 360W max
Dettagli prodotto
- Switch di rete industriale PoE - Dahua
- 26 Porte (16 PoE + 8 porte ePoE)
- 8 Porte ePoE
- Trasmissioni veloci a tassi di 10 / 100 / 1000 Mbps
- Trasmissioni PoE anche fino a 800metri di distanza
- Standard supportati: IEEE802.3af, IEEE802.3at, Hi-PoE
- Potenza totale massima 360W
- Gestione PoE, Impostazioni PoE / Statistiche eventi / Green PoE
- Protocolli Supportati: PoE, PoE+, Hi-PoE
- Supporta gestione web
- Compatibile con Moduli Fibra: PFT3950 - PFT3960 - PFT3970
- Alta protezione contro i fulmini
- Alimentatore incluso
- Trasmissioni video senza interruzioni
Scheda tecnica
| Model | LR2226-24ET-360-V2 | |||
| Hardware | ||||
| Included Power Adapter |
Yes |
|||
| PoE | Yes | |||
| Ethernet Port | 24 | |||
| Ethernet Port Speed | 10/100 Mbps | |||
| Ethernet Port Uplink Speed | 10/100/1000 Mbps | |||
| Optical Port Uplink Speed | 1 Gbps | |||
| Description of Function Slots | Port 1–24: 24 × RJ-45 10/100 Mbps Port 25–26: 2 × RJ-45 10/100/1000 Mbps Port 25–26: 2 × SFP 1000 Mbps (combo) |
|||
| Debugging | 1 × Console port | |||
| Reset Button |
1 |
|||
| Power Supply |
Built-in power supply: 100–240 VAC, 50/60 Hz, 6 A |
|||
| Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
|||
| Operating Humidity |
5%–95% (RH) |
|||
| Storage Temperature |
–20 °C to +70 °C (–4 °F to +158 °F) |
|||
| Storage Humidity |
5%–95% (RH) |
|||
| Power Consumption |
Full load: 360 W |
|||
| Performance | ||||
| Layer |
Layer 2 |
|||
| Management Type |
Yes |
|||
| Switching Capacity |
8.8 Gbps |
|||
| Packet Forwarding Rate |
6.55 Mpps |
|||
| Packet Buffer Size |
2.75 Mbit |
|||
| MAC Table Size |
4K |
|||
| VLAN Number |
31 |
|||
| Communication Standard |
IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE 802.3z |
|||
| Feature | ||||
| PoE Protocol |
IEEE802.3af; IEEE802.3at; Hi-PoE |
|||
| PoE Power |
Port 1–2 ≤60 W; |
|||
| PoE Power Consumption Management |
PoE power consumption management; |
|||
| PoE Pin Assignment |
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
|||
| ePoE |
Yes |
|||
| Spanning Tree Protocol |
STP/RSTP |
|||
| VLAN Function |
Port-based VLAN |
|||
| Link Aggregation |
Static link aggregation |
|||
| IEEE 802.3x Flow Control |
Yes |
|||
| Multicast |
IGMP Snooping v1/v2 |
|||
| DHCP Function |
DHCP Client |
|||
| Security |
Multi-level user management and password; protection; |
|||
| QoS/ACL |
SP/WRR queue scheduling |
|||
| Equipment Management |
SNMPv1/v2/v3; |
|||
| General | ||||
| Statics Protection | Air discharge: 8 kV; contact discharge: 6 kV |
|||
| Lighting Protection | Common mode: 4 kV; differential mode: 2 kV |
|||
| Net Weight | 3.44 kg (7.58 lb) | |||
| Gross Weight | 4.42 kg (9.74 lb) | |||
| Product Dimensions | 440 mm × 300 mm × 44 mm (17.32"" × 11.81"" × 1.73"") (L × W × H) | |||
| Packaging Dimensions | 565 mm × 530 mm × 415 mm (22.24" × 20.87" × 16.34") (L × W × H) | |||
| Casing Material | Sheet metal | |||
| Installation | Desktop mount; rack mount | |||
| Certifications | CE; FCC | |||
| Transmission Performance: | ||||
| ePoE Power Supply Specifications (CAT) | ||||
| Cable (m) | Bandwidth (Mbps) | PoE Load Capacity (W) | Hi-PoE Load Capacity (W) | Working Mode |
| 100 | 100 | 25.5 | 53 | IEEE/E100 |
| 200 | 100 | 25.5 | 47 | E100 |
| 300 | 100 | 25.5 | 32 | E100 |
| 400 | 10 | 23 | 26 | E10 |
| 500 | 10 | 20 | 20 | E10 |
| 800 | 10 | 13 | 13 | E10 |
| ePoE switch power supply voltage 51V CAT5E/CAT6, max. DC resistance < 10Ω/100m |
||||
| ePoE Power Supply Specifications (RG59 Coaxial Cable) | ||||
| Cable (m) | Bandwidth (Mbps) | PoE Load Capacity (W) | Hi-PoE Load Capacity (W) | Working Mode |
| 100 | 100 | 25.5 | 52 | IEEE/E100 |
| 200 | 100 | 25.5 | 48 | E100 |
| 300 | 100 | 25.5 | 30 | E100 |
| 400 | 10 | 20 | 23 | E10 |
| 500 | 10 | 16 | 16 | E10 |
| 800 | 10 | 10 | 10 | E10 |
| 1000 | 10 | 8 | 8 | E10 |
| ePoE switch power supply voltage 51V. RG-59, max. DC resistance < 5Ω/100m. |
||||
