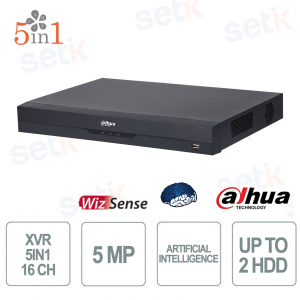

XVR5216AN-I3-16P | XVR 16 CANALI ONVIF® POC DAHUA - 5MP - H.265+ - INTELLIGENZA ARTIFICIALE

Il videoregistratore Dahua XVR5216AN-I3-16P è un DVR penta-brid a 16 canali con supporto fino a 5MP, pensato per la sicurezza avanzata di impianti professionali. Grazie all’intelligenza artificiale WizSense, integra funzioni come Face Recognition, protezione perimetrale e SMD Plus per distinguere con precisione persone e veicoli, riducendo i falsi allarmi. Supporta fino a 24 canali IP, compressione Smart H.265+ e la funzione QuickPick 2.0 per ricerche rapide, mentre la tecnologia PoC semplifica l’installazione riducendo tempi e costi.
Specifiche principali:
- 16 canali analogici + fino a 24 canali IP (128 Mbps)
- Risoluzione fino a 5MP con compressione Smart H.265+
- Face Recognition con database fino a 10.000 immagini
- Protezione perimetrale AI con rilevamento intrusioni
- SMD Plus per distinguere persone e veicoli
- QuickPick 2.0 per ricerca eventi rapida
- Tecnologia PoC per alimentazione e video su unico cavo
- Intelligenza artificiale WizSense integrata
Ulteriori dettagli
✅ Face Recognition:

Scheda tecnica
XVR5216AN-I3-16P | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface |
Web, Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QuickPick 2.0 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QuickPick 2.0 AI by Recorder (Number of Channels) |
2 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance AI by Recorder (Number of Channels) |
Advanced Mode: 2 channels, 10 IVS rules for each channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Attributes |
6 attributes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance of AI by Recorder (Number of Channels) |
2 channels (up to 12 face images/s each channel) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Database Capacity |
Up to 10 face databases with 10,000 images. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Performance of AI by Recorder (Number of Channels) |
2 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder |
16 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD by Camera |
24 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Video Quality Analytics |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Video Quality Analytics by Recorder |
16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Changing |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Changing by Recorder |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Irregular Black Block Masking |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Irregular Black Block Masking by Recorder |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Camera Input |
16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera Input |
1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Camera Input |
Up to 24 channels of IPC access |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encoding Capacity |
Encode Enhancement disabled: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual-stream |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
32 kbps–6144 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Sampling |
8 kHz, 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate |
64 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output | 1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Displa | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression Standard |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF 24.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
Chrome; IE; Safari; Edge; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode |
General, motion detection; intelligent; alarm; POS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
1/4/9/16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Method |
USB device and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Mode |
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm |
Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm |
Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Alarm |
Face detection; face recognition; perimeter protection; SMD Plus |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CVBS Output |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1-channel RCA (external) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1-channel RCA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Talk |
Yes (share the same audio input with the first channel) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Disk Interface |
2 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 (10/100/1000 Mbps Ethernet port, RJ-45) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
100–240 VAC, 50±2% Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
<15 W (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
2.74 kg (6.04 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
3.86 kg (8.51 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |

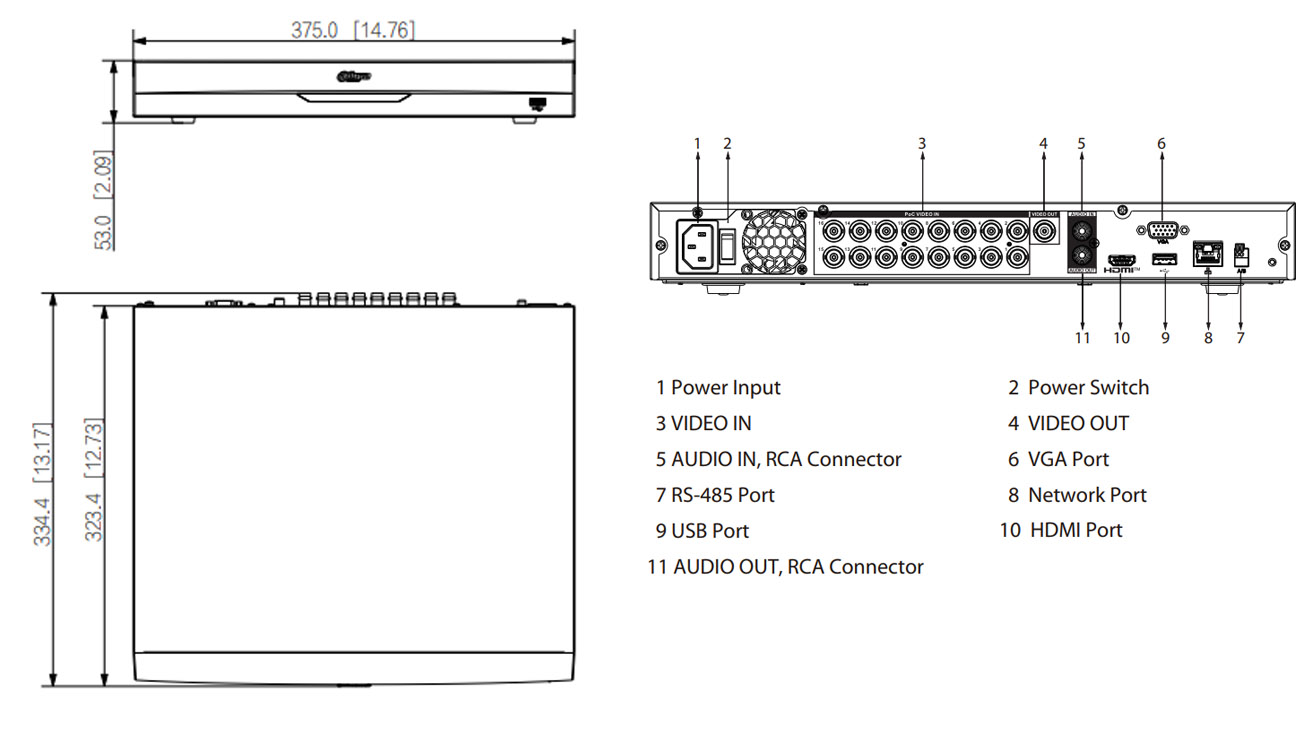

375.0 mm × 334.4 mm × 53.0 mm (14.76" × 13.17" × 2.09") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
449.0 mm × 170.0 mm × 421.0 mm (17.68" × 6.69" × 16.57") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–93% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
