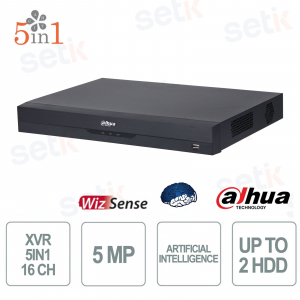

XVR5216AN-I3-16P | XVR 16 CHANNELS ONVIF® POC DAHUA - 5MP - H.265+ - ARTIFICIAL INTELLIGENCE

The Dahua XVR5216AN-I3-16P video recorder is a 16-channel penta-brid DVR with support for up to 5MP, designed for advanced security in professional systems. Thanks to WizSense artificial intelligence, it integrates functions such as Face Recognition, perimeter protection and SMD Plus to accurately distinguish people and vehicles, reducing false alarms. It supports up to 24 IP channels, Smart H.265+ compression and the QuickPick 2.0 function for quick searches, while PoC technology simplifies installation, reducing time and costs.
Main specifications:
- 16 analog channels + up to 24 IP channels (128 Mbps)
- Resolution up to 5MP with Smart H.265+ compression
- Face Recognition with database of up to 10,000 images
- AI perimeter protection with intrusion detection
- SMD Plus to distinguish people and vehicles
- QuickPick 2.0 for quick event search
- PoC technology for power and video on a single cable
- Built-in WizSense AI
Further details
✅ Face Recognition:

Technical data sheet
XVR5216AN-I3-16P | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface |
Web, Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QuickPick 2.0 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QuickPick 2.0 AI by Recorder (Number of Channels) |
2 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance AI by Recorder (Number of Channels) |
Advanced Mode: 2 channels, 10 IVS rules for each channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Attributes |
6 attributes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance of AI by Recorder (Number of Channels) |
2 channels (up to 12 face images/s each channel) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Database Capacity |
Up to 10 face databases with 10,000 images. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Performance of AI by Recorder (Number of Channels) |
2 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder |
16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD by Camera |
24 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Video Quality Analytics |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Video Quality Analytics by Recorder |
16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Changing |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Changing by Recorder |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Irregular Black Block Masking |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Irregular Black Block Masking by Recorder |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Camera Input |
16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera Input |
1. CVI: 5MP@25fps; 5MP@20fps; 5MP@10/12.5fps; 4MP@25/30fps; 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Camera Input |
Up to 24 channels of IPC access |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encoding Capacity |
Encode Enhancement disabled: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual-stream |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
32 kbps–6144 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Sampling |
8 kHz, 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate |
64 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output | 1 HDMI, 1 VGA HDMI: 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression Standard |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF 24.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
Chrome; IE; Safari; Edge; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode |
General, motion detection; intelligent; alarm; POS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
1/4/9/16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Method |
USB device and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Mode |
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm |
Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm |
Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Alarm |
Face detection; face recognition; perimeter protection; SMD Plus |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Record; snapshot (panoramic); IPC external alarm output; audio; buzzers; log; presets; e-mail |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CVBS Output |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1-channel RCA (external) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1-channel RCA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Talk |
Yes (share the same audio input with the first channel) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Disk Interface |
2 SATA ports, up to 16 TB. This limit varies depending on the environment temperature. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 (10/100/1000 Mbps Ethernet port, RJ-45) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
100–240 VAC, 50±2% Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
2.74 kg (6.04 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
3.86 kg (8.51 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |

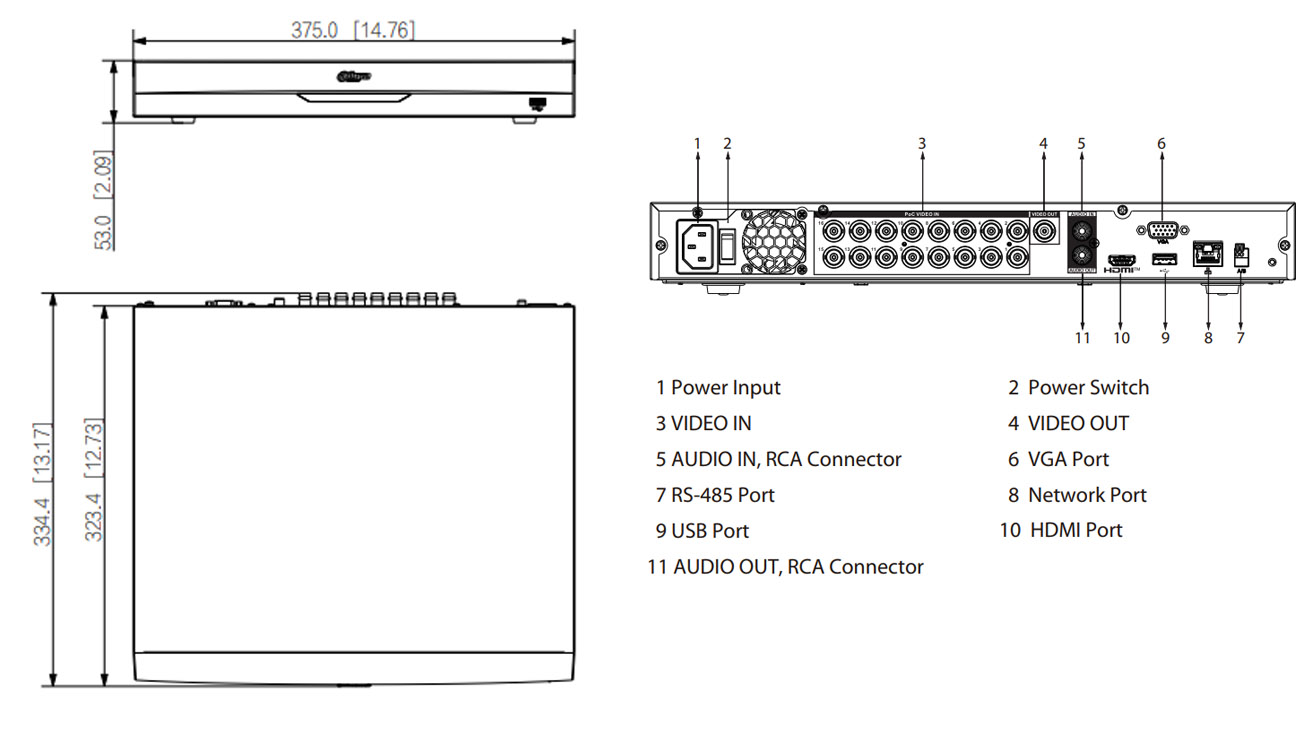

375.0 mm × 334.4 mm × 53.0 mm (14.76" × 13.17" × 2.09") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
449.0 mm × 170.0 mm × 421.0 mm (17.68" × 6.69" × 16.57") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–93% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
