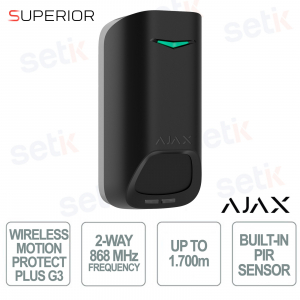

Ajax MotionProtect Plus G3 Jeweller Nero Rilevatore Movimento PIR e Microonde con Anti-Masking e SmartDetect fino a 15 m
169169.02.BL1 #169169 - Ajax Superior MotionProtect Plus G3 Jeweller nero è un rilevatore di movimento professionale progettato per sistemi di sicurezza avanzati, che combina sensore PIR con tecnologia microonde K-band per una rilevazione estremamente precisa fino a 15 metri e una riduzione efficace dei falsi allarmi. Grazie al sistema anti-masking e protezione contro sabotaggi, rileva tentativi di manomissione come copertura o oscuramento del sensore. L’algoritmo intelligente SmartDetect analizza i segnali distinguendo movimenti reali da interferenze ambientali. Il dispositivo offre angolo di rilevazione fino a 90° e copertura ampia, garantendo sicurezza in ambienti residenziali e commerciali. Dotato di autodiagnosi continua e segnalazione immediata di anomalie, assicura affidabilità costante nel tempo. Ideale per installazioni professionali, unisce prestazioni elevate e protezione avanzata. Ajax
169169.02.BL1 | RILEVATORE DI MOVIMENTO PIR WIRELESS CON UN SENSORE A MICROONDE IN BANDA K AGGIUNTIVO E UN SISTEMA ANTIMASCHERAMENTO

Ajax Superior MotionProtect Plus G3 Jeweller, 169169.02.BL1, nero è un rilevatore di movimento avanzato progettato per applicazioni professionali, che combina sensore PIR con microonde K-band per una rilevazione precisa fino a 15 metri e una drastica riduzione dei falsi allarmi. Grazie all’algoritmo intelligente SmartDetect, identifica con precisione movimenti reali distinguendoli da interferenze ambientali. Il dispositivo integra sistema anti-masking e protezione anti-sabotaggio, rilevando tentativi di copertura o manomissione. Offre ampio angolo di rilevazione fino a 90° e monitoraggio continuo con autodiagnosi per garantire massima affidabilità. Ideale per ambienti residenziali e commerciali, assicura prestazioni elevate e sicurezza costante nel tempo.
Specifiche principali:
- Rilevazione doppia PIR + microonde K-band
- Portata fino a 15 metri con copertura a 90°
- Algoritmo intelligente SmartDetect anti falsi allarmi
- Sistema anti-masking e protezione anti-sabotaggio
- Autodiagnosi e supervisione continua del dispositivo
- Installazione professionale semplice e configurazione rapida
Ulteriori dettagli
Scheda tecnica
| 169169.02.BL1 | |
| Wireless communication | Superior Jeweller communication technology Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweller is an upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3). Key features:
865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Maximum effective radiated power (ERP) up to 20 mW Automatic power control to reduce power consumption and radio interference. Radio signal modulation GFSK Radio communication range Up to 3.500 m Up to 11.400 ft Encrypted communication All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. Frequency hopping To prevent radio interference and jamming. Wings communication technology Proprietary wireless communication technology for uploading firmware updates. Key features:
865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Radio communication range Up to 2.000 m Up to 6.550 ft Encrypted communication All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. Frequency hopping To prevent radio interference and jamming. |
| Detection | Sensitive elements 1 PIR sensor microwave sensor K-band microwave sensor to prevent false alarms caused by thermal interference. Motion detection distance up to 15 m up to 49 ft When installed at a height of 2.4 m. When installed at a height of 7,9 ft. Reduced blind zone up to 30 cm up to 11.8" Detects a crawling person at a distance of 30 cm from the detector. Detects a crawling person at a distance of 11.8" from the detector. Motion detection angles horizontal: 90° vertical: 71° Motion detection speed TBC The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility. Sensitivity 3 levels Adjusted by PRO or user with admin rights in the Ajax app. False alarm prevention SmartDetect Software algorithm. Temperature compensation Effective motion detection at temperatures from −10 °C to +40 °C. Effective motion detection at temperatures from 14 °F to 104 °F. |
| Recommendations | It is recommended to install the detector at a height of 2.4 m. It is recommended to install the detector at a height of 7.9 ft. The pet immunity feature is not available for this device. The device is designed for indoor use only. |
| Sabotage protection | Tamper alarm 3 tampers Notifications on attempts to detach the detector from the surface or unlock the SmartBracket lock and remove the detector from the mounting panel Protection against spoofing device authentication Anti-masking system detects attempts to block the detector view Lock for SmartBracket To secure the detector on SmartBracket. Communication loss detection after 36 s Detection time depends on the Jeweller/Fibra settings. |
| Power supply | Battery 4 × CR123A 3 V⎓ lithium battery Pre-installed. Type type C Manufacturer Panasonic |
| Enclosure | Dimensions dimensions 135 × 66 × 60 mm 5.31" × 2.60" × 2.36" Weight of the detector 304 g 10.72 oz Operating temperature range from −10 °C to +40 °C from 14 °F to 104 °F Operating humidity up to 75% Protection class IP30 |
| Color | Black |
| Complete set | Superior MotionProtect Plus G3 Jeweller SmartBracket mounting panel 4xCR123A battery (pre-installed) Installation kit Quick start guide |
| Warranty | 24 months |
