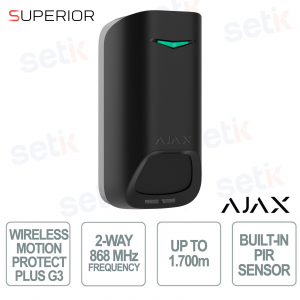

Ajax MotionProtect Plus G3 Jeweler Black PIR and Microwave Motion Detector with Anti-Masking and SmartDetect up to 15 m

Ajax MotionProtect Plus G3 Jeweler Black PIR and Microwave Motion Detector with Anti-Masking and SmartDetect up to 15 m

 
ANKÜNDIGUNGEN Neu

169169.02.BL1 # 169169 - Ajax Superior MotionProtect Plus G3 Jeweler black is a professional motion detector designed for advanced security systems, combining a PIR sensor with K-band microwave technology for extremely precise detection up to 15 meters and effective reduction of false alarms. Thanks to the anti-masking system and sabotage protection , it detects tampering attempts such as covering or obscuring the sensor. The intelligent SmartDetect algorithm analyzes signals, distinguishing real movements from environmental interference. The device offers a detection angle of up to 90° and wide coverage , ensuring safety in residential and commercial environments. Equipped with continuous self-diagnosis and immediate reporting of anomalies , it ensures constant reliability over time. Ideal for professional installations, it combines high performance and advanced protection. Ajax

Technical Data Sheet

Artikel-Nr.: 169169.02.BL1

Marke: Ajax Systems

EAN: 4823114090738

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

169169.02.BL1 | WIRELESS PIR MOTION DETECTOR WITH AN ADDITIONAL K-BAND MICROWAVE SENSOR AND ANTI-MASKING SYSTEM

Ajax

Ajax Superior MotionProtect Plus G3 Jeweler , 169169.02.BL1 , black is an advanced motion detector designed for professional applications, combining a PIR sensor with K-band microwaves for precise detection up to 15 meters and a drastic reduction in false alarms. Thanks to the intelligent SmartDetect algorithm, it accurately identifies real movements, distinguishing them from environmental interference. The device integrates an anti-masking system and anti-sabotage protection , detecting attempts to cover or tamper. It offers a wide detection angle of up to 90° and continuous monitoring with self-diagnosis to ensure maximum reliability. Ideal for residential and commercial environments, it ensures high performance and constant security over time.

Main specifications:

- Dual PIR + K-band microwave detection

- Range up to 15 meters with 90° coverage

- SmartDetect intelligent algorithm against false alarms

- Anti-masking system and anti-sabotage protection

- Self-diagnosis and continuous supervision of the device

- Easy professional installation and quick setup

Further details

✅ Jeweler Connection :
The detector uses encrypted Jeweller radio technology, designed to ensure stable, secure, two-way transmission with the control unit, with constant monitoring of the device's status and immediate reporting of any anomalies or loss of connection.
✅ Detection:
The system combines PIR and K-band microwave sensors for advanced detection up to 15 metres , with intelligent movement analysis via the SmartDetect algorithm, capable of distinguishing between real presence and interference, drastically reducing false alarms.
✅ Sabotage Resistance:
The device integrates a complete security system with advanced anti-masking and tamper protection , detecting attempts at cover-up, obscuring or sabotage thanks to dedicated sensors and immediate reporting to the control panel.
✅ Power supply:
Designed to ensure operational continuity, the detector offers efficient power supply and intelligent power management , ensuring consistent performance over time and reducing the need for frequent maintenance.

Technical data sheet

169169.02.BL1
Wireless communication Superior Jeweler communication technology
Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweler is an upgraded version of the Jeweler radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3).
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Enhanced block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
Up to 3,500 m
Up to 11,400 ft
Encrypted communication
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping
To prevent radio interference and jamming.
Wings communication technology
Proprietary wireless communication technology for uploading firmware updates.
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Block encryption featuring a dynamic key.
  • Data packet reload in case of transmission errors.
  • Data packets delivery check.
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Radio communication range
Up to 2,000 m
Up to 6,550 ft
Encrypted communication
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping
To prevent radio interference and jamming.
Detection Sensitive elements
1 PIR sensor
microwave sensor
K-band microwave sensor to prevent false alarms caused by thermal interference.
Motion detection distance
up to 15 m
up to 49 ft
When installed at a height of 2.4 m.
When installed at a height of 7.9 ft.
Reduced blind zone
up to 30 cm
up to 11.8"
Detects a crawling person at a distance of 30 cm from the detector.
Detects a crawling person at a distance of 11.8" from the detector.
Motion detection angles
horizontal: 90°
vertical: 71°
Motion detection speed
TBC
The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility.
Sensitivity
3 levels
Adjusted by PRO or user with admin rights in the Ajax app.
False alarm prevention
SmartDetect
Software algorithm.
Temperature compensation
Effective motion detection at temperatures from −10 °C to +40 °C.
Effective motion detection at temperatures from 14 °F to 104 °F.
Recommendations It is recommended to install the detector at a height of 2.4 m.
It is recommended to install the detector at a height of 7.9 ft.
The pet immunity feature is not available for this device.
The device is designed for indoor use only.
Sabotage protection Tamper alarm
3 tampers
Notifications on attempts to detach the detector from the surface or unlock the SmartBracket lock and remove the detector from the mounting panel
Protection against spoofing
device authentication
Anti-masking system
detects attempts to block the detector view
Lock for SmartBracket
To secure the detector on SmartBracket.
Communication loss detection
after 36 s
Detection time depends on the Jeweller/Fiber settings.
Power supply Battery
4 × CR123A 3V⎓ lithium battery
Pre-installed.
Type
type C
Manufacturer
Panasonic
Enclosure Dimensions dimensions
135 × 66 × 60 mm
5.31" × 2.60" × 2.36"
Weight of the detector
304 g
10.72 oz
Operating temperature range
from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity
up to 75%
Protection class
IP30
Color Black
Complete set Superior MotionProtect Plus G3 Jeweller
SmartBracket mounting panel
4xCR123A battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
