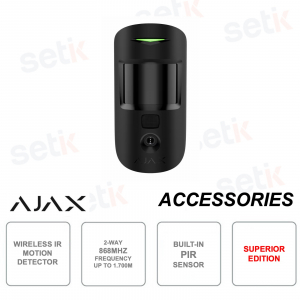

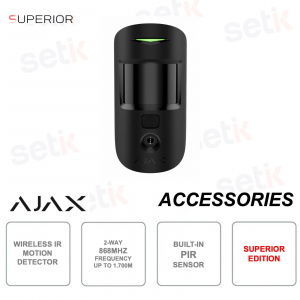

133215.120.BL1 | RILEVATORE DI MOVIMENTO IR WIRELESS CON POSSIBILITA' DI FOTO-VERIFICA ESTESA
Ajax Superior MotionCam (PhOD) Jeweller, 133215.120.BL1 (ex 67730.120.BL1), nero è un rilevatore di movimento PIR wireless di livello professionale, progettato per sistemi di sicurezza evoluti che richiedono verifica fotografica immediata e su richiesta. Il dispositivo garantisce un rilevamento accurato fino a 12 metri con angolo di 88,5°, riducendo i falsi allarmi grazie a SmartDetect e compensazione termica intelligente. La fotocamera integrata consente foto on demand, per allarme, scenario o programmazione, con immagini chiare anche in condizioni di buio tramite illuminazione a infrarossi. La comunicazione radio Jeweller e Wings criptata fino a 1.700 metri, unita alla protezione antisabotaggio avanzata e a un’autonomia fino a 4 anni, rende il sensore ideale per installazioni wireless professionali affidabili e sicure.
Specifiche principali:
- Rilevatore di movimento PIR wireless con fotocamera integrata
- Verifica fotografica avanzata Photo on Demand
- Portata di rilevamento fino a 12 m con angolo di 88,5°
- Illuminazione a infrarossi per immagini in condizioni di scarsa luce
- Comunicazione radio Jeweller e Wings criptata fino a 1.700 m
- Algoritmi SmartDetect e compensazione termica
- Protezione antisabotaggio con tamper e autenticazione dispositivo
- Autonomia della batteria fino a 4 anni con CR123A
Ulteriori dettagli
Scheda tecnica
| 133215.120.BL1 | |
| Communication | |
| Jeweller communication technology | Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. Key features:
|
| Frequency bands | 868.0–868.6 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation | GFSK |
| Radio signal range | up to 1,700 m up to 5,600 ft Between detector and control panel (or range extender) in an open space. |
| Encrypted communication | All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping | Radio communication uses frequency hopping to prevent interception and jamming. |
| Wings communication technology | Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. Key features:
|
| Frequency bands | 868.0–868.6 MHz |
| Radio signal range | up to 1,700 m up to 5,600 ft Between detector and control panel (or range extender) in an open space. |
| Encrypted communication | All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping | Radio communication uses frequency hopping to prevent interception and jamming. |
| Detection | |
| Sensitive element | PIR sensor microwave sensor K-band microwave sensor to prevent false alarms caused by thermal interference. Operation frequency: 24 GHz. |
| Motion detection distance | up to 12 meters up to 39 ft When installed at the height of 2.4 meters When installed at the height of 7.9 ft |
| Motion detection angles | horizontal — 88.5° |
| Motion detection speed | from 0.3 to 2.0 m/s from 1 to 6.6 ft/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the room |
| Sensitivity | 3 levels Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app. |
| Pet immunity | weight: up to 20 kg weight: up to 44 lb height: up to 50 cm height: up to 1.6 ft |
| False alarm prevention | SmartDetect Software algorithm |
| Temperature compensation | Effective motion detection at temperatures from −10°C to +40°C. from 14°F to 104°F. |
| Photo verification | |
| Photo by alarm | The built-in camera is activated if the detector is armed and motion is detected. |
| Photo on demand | The user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default. |
| Photo by scenario | The detector’s camera takes pictures automatically when other Ajax detectors are triggered. The feature is disabled by default |
| Photo by schedule | The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher. |
| Photo by arming/disarming | The detector automatically takes photos when the security state is changed. |
| Adjustable photo resolution | 640 × 480 px 320 × 240 px (default) 160 × 120 px Adjusted by a PRO or user with admin rights in the Ajax app |
| IR backlight | For night photography and low light conditions. |
| Series of pictures | from 1 to 5 snapshots Adjusted by a PRO or user with admin rights in an Ajax app |
| Photo delivery | up to 7 s — 160 × 120 px resolution up to 9 s — 320 × 240 px resolution up to 20 s — 640 × 480 px resolution Photo delivery time depends on the image resolution selected in the device settings |
| Recommendations | It is recommended to install the detector at the height of 2.4 meters. It is recommended to install the detector at a height of 7.9 ft. The device is designed for indoor use only. |
| Sabotage protection | |
| Tamper alarm | Notifications on attempts to detach the detector from the surface or remove it from the mounting panel |
| Holding screw | to secure the detector on SmartBracket |
| Protection against forgery | devices authentication |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings |
| Power supply | |
| Battery | 2 × CR123A Pre-installed. |
| Type | Type C |
| Calculated battery life | up to 4 years |
| Detector’s operating voltage range | 4.2−6.2 V⎓ |
| Detector’s nominal operating voltage | 6 V⎓ |
| Quiescent detector’s current consumption at nominal voltage | 0.058 mA |
| Maximum detector’s current consumption at nominal voltage | 18 mA |
| Full capacity | 3,300 mAh |
| Low battery voltage | 4.55 V⎓ |
| Low battery recovery voltage | 4.9 V⎓ |
| End of life battery voltage | 4.2 V⎓ Device is switched off |
| End of life battery capacity | 600 mAh |
| Manufacturer | Panasonic |
| Enclosure | |
| Color | Black |
| Dimension | 135 × 70 × 60 mm 5.31" × 2.75" × 2.60" |
| Weight | 167 g 5.29 oz |
| Operating temperature range | from −10 °C to +40 °C from 14 °F to 104 °F |
| Operating humidity | up to 75% |
| Casing protection class | IP50 |
| Complete set | Superior MotionCam (PhOD) Jeweller SmartBracket mounting panel with holding screw 2 x CR123A battery (pre-installed) Installation kit Quick start guide |
| Warranty | 24 months |
