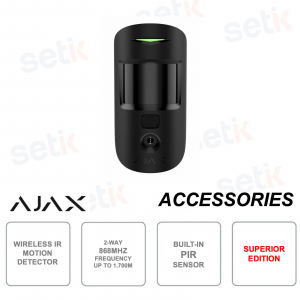

Ajax Superior MotionCam (PhOD) Jeweler Black – Wireless PIR Sensor with Photo On Demand

Ajax Superior MotionCam (PhOD) Jeweler Black – Wireless PIR Sensor with Photo On Demand

 
NEW

AJAX SUPERIOR | 133215.120.BL1 (ex 67730.120.BL1) #133215 | Ajax Superior MotionCam (PhOD) Jeweller black is a wireless PIR motion detector designed for professional security systems that require advanced photo verification on demand . The device guarantees precise detection up to 12 meters with an 88.5° angle , reducing false alarms thanks to SmartDetect and intelligent temperature compensation . The integrated camera allows photos on demand, by alarm or scenario , with clear images even in the dark via infrared illumination . Encrypted Jeweller and Wings radio communication up to 1,700 meters , combined with anti-sabotage protection with tamper and authentication , ensures reliability, total control and continuous security, with up to 4 years of battery life . Ajax

Technical Data Sheet

Reference: 133215.120.BL1

Brand: Ajax Systems

EAN: 4823114075445

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

FREE TVCC SIGN!×

With all >> AJAX KITS

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

133215.120.BL1 | WIRELESS IR MOTION DETECTOR WITH EXTENDED PHOTO VERIFICATION

Ajax

Ajax Superior MotionCam (PhOD) Jeweller, 133215.120.BL1 (formerly 67730.120.BL1), black is a professional-grade wireless PIR motion detector, designed for advanced security systems that require immediate and on-demand photo verification . The device ensures accurate detection up to 12 meters with an 88.5° angle , reducing false alarms thanks to SmartDetect and intelligent temperature compensation . The integrated camera enables photos on demand, by alarm, scenario or schedule , with clear images even in the dark via infrared illumination . Encrypted Jeweller and Wings radio communication up to 1,700 meters , combined with advanced sabotage protection and a battery life of up to 4 years , makes the sensor ideal for reliable and secure professional wireless installations.

Main specifications:

- Wireless PIR motion detector with built-in camera

- Advanced Photo Verification Photo on Demand

- Detection range up to 12 m with an 88.5° angle

- Infrared illumination for low-light imaging

- Jeweller and Wings radio communication encrypted up to 1,700 m

- SmartDetect algorithms and thermal compensation

- Anti-tamper protection with device tamper and authentication

- Battery life up to 4 years with CR123A

Further details

✅ Jeweler Communication :
Ajax Jeweller technology ensures stable radio transmission up to 1,700 meters in open field , with end-to-end encryption , frequency hopping , jamming detection and constant monitoring of device status for secure and reliable communication.
✅ Wings Communication :
The Ajax Wings protocol is optimized for fast and reliable image transmission , with data backup and automatic retransmission in case of interference, ensuring stable photo-verification even in critical radio conditions .
✅ Detection :
The intelligent temperature-compensated PIR sensor offers motion detection up to 12 meters at an 88.5° angle , reducing false alarms thanks to SmartDetect and ensuring pet immunity up to 20 kg.
✅ Photo verification :
The integrated camera allows photographic verification by alarm, scenario, programming or on request , with images up to 640×480 px , up to 5 photos per event and infrared illumination for clear shots even in the absence of light.
✅ Anti-sabotage protection:
The device integrates anti-opening and anti-tear tamper , authentication against spoofing and protection against radio interference, ensuring continuous security against tampering attempts .
✅ Power supply:
Ajax Superior MotionCam (PhOD) Jeweller is powered by 2 pre-installed CR123A batteries , providing up to 4 years of battery life , low battery notifications and continuous operation without frequent maintenance .

Technical data sheet

133215.120.BL1
Communication
Jeweler communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Frequency bands 868.0–868.6 MHz
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Radio signal range up to 1,700 m
up to 5,600 ft
Between detector and control panel (or range extender) in an open space.
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Wings communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Block encryption featuring a dynamic key.
  • Advanced sabotage protection.
  • Reloading the data packages in case of transmission errors
  • Remote configuration via the Ajax apps.
Frequency bands 868.0–868.6 MHz
Radio signal range up to 1,700 m
up to 5,600 ft
Between detector and control panel (or range extender) in an open space.
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Detection
Sensitive element PIR sensor
microwave sensor
K-band microwave sensor to prevent false alarms caused by thermal interference.
Operating frequency: 24 GHz.
Motion detection distance up to 12 meters
up to 39 ft
When installed at the height of 2.4 meters
When installed at the height of 7.9 ft
Motion detection angles horizontal — 88.5°
Motion detection speed from 0.3 to 2.0 m/s
from 1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the room
Sensitivity 3 levels
Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
Pet immunity weight: up to 20 kg
weight: up to 44 lb
height: up to 50 cm
height: up to 1.6 ft
False alarm prevention SmartDetect
Software algorithm
Temperature compensation Effective motion detection at temperatures
from −10°C to +40°C.
from 14°F to 104°F.
Photo verification
Photo by alarm The built-in camera is activated if the detector is armed and motion is detected.
Photo on demand The user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default.
Photo by scenario The detector's camera takes pictures automatically when other Ajax detectors are triggered. The feature is disabled by default
Photo by schedule The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher.
Photo by arming/disarming The detector automatically takes photos when the security state is changed.
Adjustable photo resolution 640 × 480 px
320 × 240 px (default)
160 × 120 px
Adjusted by a PRO or user with admin rights in the Ajax app
IR backlight For night photography and low light conditions.
Series of pictures from 1 to 5 snapshots
Adjusted by a PRO or user with admin rights in an Ajax app
Photo delivery up to 7 s — 160 × 120 px resolution
up to 9 s — 320 × 240 px resolution
up to 20 s — 640 × 480 px resolution
Photo delivery time depends on the image resolution selected in the device settings
Recommendations It is recommended to install the detector at the height of 2.4 meters.
It is recommended to install the detector at a height of 7.9 ft.
The device is designed for indoor use only.
Sabotage protection
Tamper alarm Notifications on attempts to detach the detector from the surface or remove it from the mounting panel
Holding screw to secure the detector on SmartBracket
Protection against forgery devices authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings
Power supply
Battery 2 × CR123A
Pre-installed.
Type Type C
Calculated battery life up to 4 years
Detector's operating voltage range 4.2−6.2 V⎓
Detector's nominal operating voltage 6 V⎓
Quiescent detector's current consumption at nominal voltage 0.058 mA
Maximum detector's current consumption at nominal voltage 18 mA
Full capacity 3,300 mAh
Low battery voltage 4.55 V⎓
Low battery recovery voltage 4.9 V⎓
End-of-life battery voltage 4.2 V⎓
Device is switched off
End-of-life battery capacity 600 mAh
Manufacturer Panasonic
Enclosure
Color Black
Dimension 135 × 70 × 60 mm
5.31" × 2.75" × 2.60"
Weight 167 g
5.29 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP50
Complete set Superior MotionCam (PhOD) Jeweller
SmartBracket mounting panel with holding screw
2 x CR123A battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
