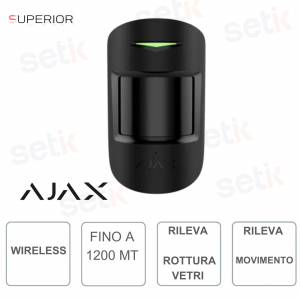

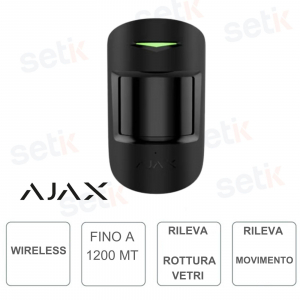

Ajax Superior CombiProtect Jeweller Nero – Sensore Wireless PIR + Rottura Vetri con Pet Immunity e Portata 1.200 m
AJAX SUPERIOR |133191.06.BL1 (ex 67728.06.BL1) #133191 | Ajax Superior MotionCam HD (PhOD) Jeweller nero è un rilevatore di movimento PIR wireless con foto-verifica avanzata in HD fino a 960×720 px, ideale per confermare gli allarmi con immagini chiare e dettagliate. Supporta foto su richiesta (PhOD), per allarme, scenario, pianificazione e arm/disarm, con invio fino a 5 foto in sequenza e consegna rapida (circa 4,5 s a 320×240). Offre rilevamento fino a 12 m con angolo orizzontale 88,5°, compensazione della temperatura e 4 livelli di sensibilità per ridurre i falsi allarmi, inclusa l’immunità ai piccoli animali. La comunicazione Jeweller + TurboWings assicura portata fino a 1.700 m, dati crittografati e protezione da interferenze. Completa la sicurezza con protezione antisabotaggio (tamper e autenticazione anti-spoofing) e autonomia fino a 4 anni con batterie preinstallate. Ajax
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
133191.06.BL1 | RILEVATORE DI MOVIMENTO IR E ROTTURA VETRO WIRELESS CON MICROFONO

Ajax Superior CombiProtect Jeweller, 133191.06.BL1 (ex 67728.06.BL1), nero è un sensore wireless 2-in-1 che combina rilevamento movimento PIR e rilevamento rottura vetri con microfono, ideale per aumentare la protezione degli ambienti con una sola installazione. Il motion detector offre copertura fino a 12 m con angolo 88,5°, includendo SmartDetect, compensazione della temperatura e pet immunity per limitare i falsi allarmi. La rilevazione vetri arriva fino a 9 m con angolo 180°, grazie all’algoritmo DualTone che verifica le frequenze basse e alte e al filtro contro rumori come abbaio o passaggio di camion. La comunicazione Jeweller garantisce portata fino a 1.200 m, crittografia completa e controllo periodico dello stato. Completa la sicurezza con protezione antisabotaggio (tamper, anti-spoofing, rilevamento jamming) e autonomia fino a 5 anni con batteria CR123A preinstallata.
Specifiche principali:
- Sensore 2-in-1 PIR + rottura vetri con microfono integrato
- Rilevamento movimento fino a 12 m con angolo 88,5°, SmartDetect e pet immunity
- Rilevamento rottura vetri fino a 9 m con angolo 180° e algoritmo DualTone
- Filtro anti falsi allarmi per rumori come abbaio e passaggio camion
- Comunicazione Jeweller fino a 1.200 m con dati crittografati e polling costante
- Protezione antisabotaggio con tamper, anti-spoofing e jamming detection
- Autonomia fino a 5 anni con batteria CR123A preinstallata
Ulteriori dettagli
Scheda tecnica
| 133191.06.BL1 | |
| Communication | |
| Jeweller communication technology | Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. Key features:
|
| Frequency bands | 868.0–868.6 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation | GFSK |
| Radio signal range | up to 1,700 m up to 5,600 ft Between detector and control panel (or range extender) in an open space. |
| Encrypted communication | All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping | Radio communication uses frequency hopping to prevent interception and jamming. |
| Detection | |
| Sensitive element | PIR sensor |
| Motion detection distance | up to 12 meters up to 39 ft When installed at the height of 2.4 meters When installed at the height of 7.9 ft |
| Motion detection angles | horizontal — 88.5° |
| Motion detection speed | from 0.3 to 2.0 m/s from 1 to 6.6 ft/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the room |
| Sensitivity | 3 levels Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app. |
| Pet immunity | weight: up to 20 kg weight: up to 44 lb height: up to 50 cm height: up to 1.6 ft |
| False alarm prevention | SmartDetect Software algorithm |
| Temperature compensation | Effective motion detection at temperatures from −10°C to +40°C. from 14°F to 104°F. |
| Recommendations | It is recommended to install the detector at the height of 2.4 meters. It is recommended to install the detector at a height of 7.9 ft. The device is designed for indoor use only. |
| Glass break detection | |
| Sensitive elements | electret microphone |
| Glass break detection distance | from 0.3 up to 9 m from 1 up to 29.5 ft |
| Glass break detection angles | horizontal: 180° vertical: N/A |
| Sensitivity | 3 levels Adjusted by PRO or user with admin rights in the Ajax app |
| False alarm prevention | DualTone Two-factor glass break verification software algorithm: by low and high frequencies. |
| Glass break characteristics | |
| Min size of the glass | 400 × 400 mm 15.7″ × 15.7″ Detection distance up to 9 m for all glass types when the High sensitivity level is selected. 29.5 ft |
| Type of glass and its thickness: | standard pane — 4 mm 0.16″ insulated glass — 4 mm 0.16″ |
| Sabotage protection | |
| Tamper alarm | Notifications on attempts to detach the detector from the surface or remove it from the mounting panel |
| Holding screw | to secure the detector on SmartBracket |
| Protection against forgery | devices authentication |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings |
| Power supply | |
| Battery | 1 × CR123A Pre-installed. |
| Type | Type C |
| Calculated battery life | up to 5 years With Photo on demand toggle disabled. |
| Detector’s operating voltage range | 2.1−3.3 V⎓ |
| Detector’s nominal operating voltage | 3 V⎓ |
| Quiescent detector’s current consumption at nominal voltage | 0.034 mA |
| Maximum detector’s current consumption at nominal voltage | 58 mA |
| Full capacity | 1,600 mAh |
| Low battery voltage | 2.5 V⎓ |
| Low battery recovery voltage | 2.7 V⎓ |
| End of life battery voltage | 2.1 V⎓ |
| End of life battery capacity | 300 mAh |
| Manufacturer | Panasonic |
| Enclosure | |
| Color | Black |
| Dimension | 110 × 65 × 50 mm 4.33″ × 2.56″ × 1.97″ |
| Weight | 92 g 3.24 oz |
| Operating temperature range | from −10 °C to +40 °C from 14 °F to 104 °F |
| Operating humidity | up to 75% |
| Casing protection class | IP50 |
| Complete set | Superior CombiProtect Jeweller SmartBracket mounting panel with holding screw CR123A battery (pre-installed) Installation kit Quick start guide |
| Warranty | 24 months |
