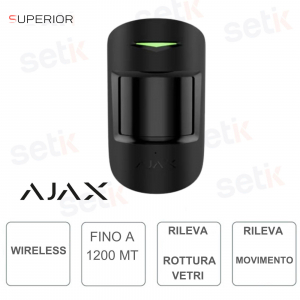

Ajax Superior CombiProtect Jeweler Black – Wireless PIR + Glass Break Sensor with Pet Immunity and 1,200 m Range

Ajax Superior CombiProtect Jeweler Black – Wireless PIR + Glass Break Sensor with Pet Immunity and 1,200 m Range

 
NEW

AJAX SUPERIOR | 133191.06.BL1 (ex 67728.06.BL1) #133191 | Ajax Superior MotionCam HD (PhOD) Jeweller black is a wireless PIR motion detector with advanced photo verification in HD up to 960×720 px , ideal for confirming alarms with clear and detailed images. It supports photo on demand (PhOD) , for alarm, scenario, schedule and arm/disarm, with sending up to 5 photos in sequence and fast delivery (approx. 4.5 s at 320×240). It offers detection up to 12 m with 88.5° horizontal angle, temperature compensation and 4 sensitivity levels to reduce false alarms, including immunity to small animals. Jeweller + TurboWings communication ensures range up to 1,700 m , encrypted data and protection from interference. Complete security with anti-sabotage protection (tamper and anti-spoofing authentication) and up to 4 years of battery life with pre-installed batteries. Ajax

Technical Data Sheet

Reference: 133191.06.BL1

Brand: Ajax Systems

EAN: 4823114075209

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

FREE TVCC SIGN!×

With all >> AJAX KITS

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

CHRISTMAS WEEK 2025 ×

FREE SHIPPING ON THE ENTIRE CATALOGUE!
Minimum purchase €249
   CHRISTMAS-FREE-E

133191.06.BL1 | Wireless IR Motion and Glass Break Detector with Microphone

Ajax

Ajax Superior CombiProtect Jeweller, 133191.06.BL1 (formerly 67728.06.BL1), black is a 2-in-1 wireless sensor that combines PIR motion detection and glass break detection with microphone, ideal for increasing the protection of environments with a single installation. The motion detector offers coverage of up to 12 m with an 88.5° angle, including SmartDetect , temperature compensation and pet immunity to limit false alarms. Glass detection reaches up to 9 m with a 180° angle, thanks to the DualTone algorithm that checks low and high frequencies and the filter against noises such as barking or passing trucks. Jeweller communication guarantees a range of up to 1,200 m , full encryption and periodic status check. Complete security with anti-sabotage protection (tamper, anti-spoofing, jamming detection) and battery life of up to 5 years with pre-installed CR123A battery.

Main specifications:

- 2-in-1 PIR + glass break sensor with built-in microphone

- Motion detection up to 12 m with 88.5° angle, SmartDetect and pet immunity

- Glass break detection up to 9 m with 180° angle and DualTone algorithm

- False alarm filter for noises such as barking and passing trucks

- Jeweler communication up to 1,200 m with encrypted data and constant polling

- Anti-sabotage protection with tamper, anti-spoofing and jamming detection

- Battery life up to 5 years with pre-installed CR123A battery

Further details

✅ Jeweler Communication :
It uses Jeweller radio technology for a stable and secure connection up to 1,200m in open space, with data encrypted throughout transmission and regular polling to show device status in real time, improving reliability and app control.
✅ Detection :
The PIR sensor guarantees coverage up to 12 m with an 88.5° horizontal angle, integrating the SmartDetect algorithm to prevent false alarms, temperature compensation for constant performance and pet immunity for animals up to 20 kg and 50 cm in height.
✅ Glass break detection :
The microphone detects glass breakage up to 9 m with a 180° angle, thanks to the DualTone algorithm that checks two frequencies (low and high) and a dedicated filter against false alarms generated by barking or truck noises , ensuring more selective checking.
✅ Anti-sabotage protection:
It offers a tamper alarm against opening or removal, device authentication to prevent spoofing and jamming detection to identify intentional interference, as well as a security screw for fixing on SmartBracket , increasing resistance to tampering and attacks.
✅ Power supply:
It operates with 1 CR123A battery (pre-installed) and ensures up to 5 years of battery life , with low battery notifications for programmable maintenance and operational continuity, ideal for professional installations without wiring.

Technical data sheet

133191.06.BL1
Communication
Jeweler communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Frequency bands 868.0–868.6 MHz
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Radio signal range up to 1,700 m
up to 5,600 ft
Between detector and control panel (or range extender) in an open space.
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Detection
Sensitive element PIR sensor
Motion detection distance up to 12 meters
up to 39 ft
When installed at the height of 2.4 meters
When installed at the height of 7.9 ft
Motion detection angles horizontal — 88.5°
Motion detection speed from 0.3 to 2.0 m/s
from 1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the room
Sensitivity 3 levels
Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
Pet immunity weight: up to 20 kg
weight: up to 44 lb
height: up to 50 cm
height: up to 1.6 ft
False alarm prevention SmartDetect
Software algorithm
Temperature compensation Effective motion detection at temperatures
from −10°C to +40°C.
from 14°F to 104°F.
Recommendations It is recommended to install the detector at the height of 2.4 meters.
It is recommended to install the detector at a height of 7.9 ft.
The device is designed for indoor use only.
Glass break detection
Sensitive elements electret microphone
Glass break detection distance from 0.3 up to 9 m
from 1 to 29.5 ft
Glass break detection angles horizontal: 180°
vertical: N/A
Sensitivity 3 levels
Adjusted by PRO or user with admin rights in the Ajax app
False alarm prevention DualTone
Two-factor glass break verification software algorithm: by low and high frequencies.
Glass break characteristics
Minimum glass size 400 × 400 mm
15.7″ × 15.7″
Detection distance up to 9 m for all glass types when the High sensitivity level is selected.
29.5 ft
Type of glass and its thickness: bread standard — 4 mm 0.16″
insulated glass — 4 mm 0.16″
Sabotage protection
Tamper alarm Notifications on attempts to detach the detector from the surface or remove it from the mounting panel
Holding screw to secure the detector on SmartBracket
Protection against forgery devices authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings
Power supply
Battery 1 × CR123A
Pre-installed.
Type Type C
Calculated battery life up to 5 years
With Photo on demand toggle disabled.
Detector's operating voltage range 2.1−3.3 V⎓
Detector's nominal operating voltage 3 V⎓
Quiescent detector's current consumption at nominal voltage 0.034 mA
Maximum detector's current consumption at nominal voltage 58 mA
Full capacity 1,600 mAh
Low battery voltage 2.5 V⎓
Low battery recovery voltage 2.7 V⎓
End-of-life battery voltage 2.1 V⎓
End-of-life battery capacity 300 mAh
Manufacturer Panasonic
Enclosure
Color Black
Dimension 110 × 65 × 50 mm
4.33″ × 2.56″ × 1.97″
Weight 92 g
3.24 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP50
Complete set Superior CombiProtect Jeweller
SmartBracket mounting panel with holding screw
CR123A battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
