Il SG4010P di Dahua, è uno switch di rete gestito Layer 2, con 10 porte: 8 porte PoE & 2 porte RJ45 - MAC Table Size 8K - Packet Buffer Memory 4 Mbit - Switching Capacity 20Gbps - A prova di fulmini 4kV - Potenza PoE 110W - dimensioni 190 mm × 106 mm × 30 mm
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

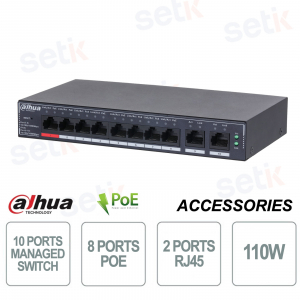

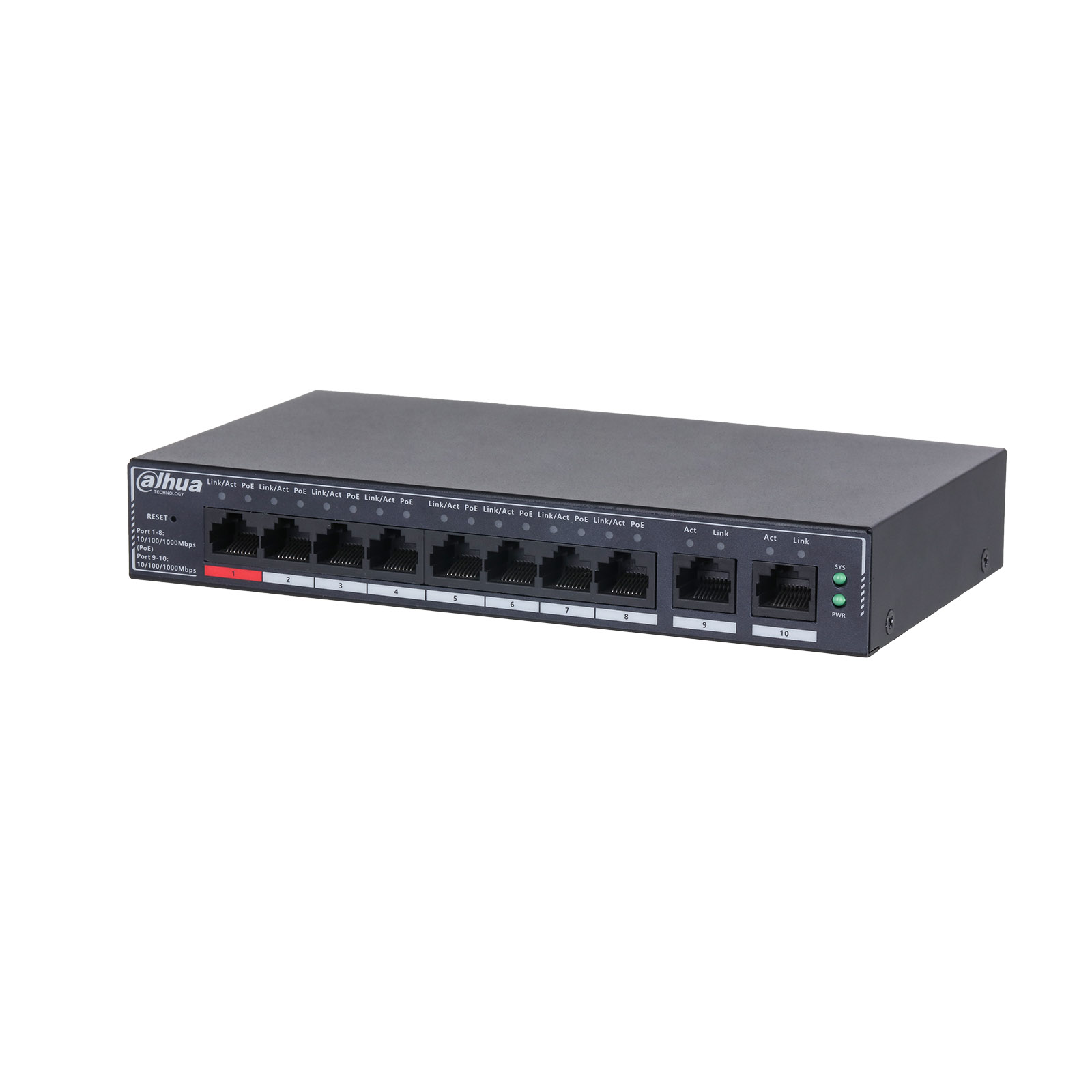

SWITCH DI RETE NON GESTITO POE DA 10 PORTE + THUNDERPROOF 4KV - DAHUA - SG4010P

Switch di rete gestito Layer 2, con 10 porte: 8 porte PoE & 2 porte RJ45 - MAC Table Size 8K - Packet Buffer Memory 4 Mbit - Switching Capacity 20Gbps - A prova di fulmini 4kV - Potenza PoE 110W - dimensioni 190 mm × 106 mm × 30 mm

- Switch di rete - Dahua - SG4010P
- 10 Porte: 8 × RJ-45 10/100/1000 Mbps (PoE), 2 × RJ-45 10/100/1000 Mbps(uplink)
- Gestito
- Layer 2
- Packet Buffer size 4 Mb
- MAC Table SIze 8K
- Capacità di switching 20Gbps
- Consumi: Idling: 3.5W Full load: 110W
- PoE Power: Port 1 ≤ 90 W, Port 2-8 ≤ 30 W, total ≤ 110 W
- Protezione dai fulmini: 4kV Common / 2kV differenziale
- Dimensioni: 190 mm × 106 mm × 30 mm
- Peso: 0.55 kg
- Temperatura di funzionamento supportata:–10 °C a 55 °C
Scheda tecnica
Model | SG4010P |
Basic | |
Layer | Layer 2 |
Switching Capacity | 20 Gbps |
Packet Forwarding Rate | 14.88 Mpps |
Description of Function Slots | Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps(uplink) |
Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
Operating Humidity | 5% –95% (RH), non-condensing |
Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
Storage Humidity | 5%–95% (RH), non-condensing |
Power Supply | External power supply: 54 VDC, 2.22 A |
Power Consumption | Idling: ≤6 W; Full load: 110 W |
Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
Lightning Protection | Common mode: 4 kV; Differential mode: 2 kV |
Net Weight | 0.55 kg (1.21 lb) |
Gross Weight | 1.3 kg (2.87 lb) |

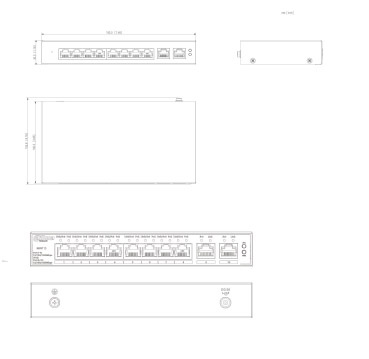

Product Dimensions | 190 mm × 106 mm × 30 mm (7.48" × 4.17" × 1.18") (L × W × H) |
Packaging Dimensions | 256 mm × 244 mm × 87 mm (10.07" × 9.61" × 3.43") (L × W × H) |
Casing Material | Sheet metal |
Installation | Desktop mount; wall mount |
Certifications | CE |
PoE | |
PoE | Yes |
PoE Power | Port 1 ≤ 90 W, Port 2-8 ≤ 30 W, total ≤ 110 W |
PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
PoE Power Consumption Management | Yes |
PoE Pin Assignment | 1,2,4,5(V+),3,6,7,8(V-) |
Long Distance PoE Transmission | Yes |
PoE | |
PoE Standard | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
PoE Budget | Port 1 ≤ 90 W, Port 2-8 ≤ 30 W, total ≤ 110 W |
PoE Power Consumption Management | Yes |
PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–) |
Long Distance PoE Transmission | Yes |
Hardware | |
Reset Button | 1 |
Performance | |
MTBF | 127.3 years |
Packet Buffer Size | 4 Mbit |
Jumbo Frame | 15K Byte |
MAC Table Size | 8K |
Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab |
VLAN Number | 32 |
Feature | |
Ethernet Loop Protection | STP/RSTP |
VLAN Function | Port-based VLAN |
Link Aggregation | Yes |
DHCP Function | DHCP Client |
Equipment Management | Web management; App management |
General | |
Packing List | Quick Start Guide × 1; Legal and Regulatory Information × 1;Power adapter × 1; Power cord × 1 |
