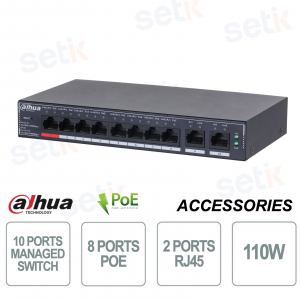

Dahua SG4010P is a Layer 2 managed network switch with 10 ports: 8 PoE ports & 2 RJ45 ports - MAC Table Size 8K - Packet Buffer Memory 4 Mbit - Switching Capacity 20Gbps - Lightning proof 4kV - PoE power 110W - Dimensions 190 mm × 106 mm × 30 mm



Reference: SG4010P

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

10-PORT POE UNMANAGED NETWORK SWITCH + THUNDERPROOF 4KV - DAHUA - SG4010P

Dahua Technology
Network switch with 10 ports 8 PoE ports & 2 RJ45 ports - Dahua - SG4010P
Layer 2 Managed Network Switch, 10 Ports: 8 PoE Ports & 2 RJ45 Ports - MAC Table Size 8K - Packet Buffer Memory 4 Mbit - Switching Capacity 20Gbps - Lightning Proof 4kV - PoE Power 110W - Dimensions 190mm × 106mm × 30mm
Product details
SG4010P
  • Network Switch - Dahua - SG4010P
  • 10 Ports: 8 × RJ-45 10/100/1000 Mbps (PoE), 2 × RJ-45 10/100/1000 Mbps(uplink)
  • Managed
  • Layer 2
  • Packet buffer size 4 Mb
  • MAC Table Size 8K
  • 20Gbps switching capacity
  • Consumption: Idling: 3.5W Full load: 110W
  • PoE Power: Port 1 ≤ 90W, Port 2-8 ≤ 30W, total ≤ 110W
  • Lightning protection: 4kV Common / 2kV Differential
  • Size: 190mm × 106mm × 30mm
  • Weight: 0.55 kg
  • Supported operating temperature: –10°C to 55°C

Technical data sheet

Model SG4010P
Basic
Layer Layer 2
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
Description of Function Slots Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE);
Port 9-10: 2 × RJ-45 10/100/1000 Mbps(uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 5% –95% (RH), non-condensing
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External power supply: 54 VDC, 2.22 A
Power Consumption Idling: ≤6W;
Full load: 110W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6kV
Lightning Protection Common mode: 4 kV;
Differential mode: 2kV
Net Weight 0.55 kg (1.21 lb)
Gross Weight 1.3 kg (2.87 lb)
Product Dimensions 190 mm × 106 mm × 30 mm (7.48" × 4.17" × 1.18") (L × W × H)
Packaging Dimensions 256 mm × 244 mm × 87 mm (10.07" × 9.61" × 3.43") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 1 ≤ 90W, Port 2-8 ≤ 30W, total ≤ 110W
PoE Protocol IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power Consumption Management Yes
PoE Pin Assignment 1,2,4,5(V+),3,6,7,8(V-)
Long Distance PoE Transmission Yes
PoE
PoE Standard IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Budget Port 1 ≤ 90W, Port 2-8 ≤ 30W, total ≤ 110W
PoE Power Consumption Management Yes
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
Long Distance PoE Transmission Yes
Hardware
Reset Button 1
Performance
MTBF 127.3 years
Packet Buffer Size 4 Mbit
Jumbo Frame 15K Bytes
MAC Table Size 8K
Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
VLAN Number 32
Feature
Ethernet Loop Protection STP/RSTP
VLAN Function Port-based VLAN
Link Aggregation Yes
DHCP Function DHCP Client
Equipment Management Web management;
App management
General
Packing List Quick Start Guide × 1; Legal and Regulatory Information × 1; Power adapter × 1; Power cord × 1

Further details

SG4010P dimensions
