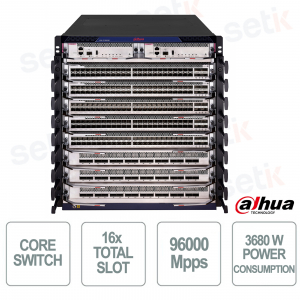

S10508 | CORE SWITCH 16 SLOT - 40GE

Il Dahua S10508 è uno switch core modulare ad alte prestazioni ideale per reti aziendali complesse e ad alta affidabilità. Grazie alla compatibilità con 40GE Ethernet e alla crittografia MACsec, garantisce sicurezza avanzata e stabilità di connessione. Il design scalabile semplifica la gestione e riduce i costi operativi, offrendo un controllo completo e performance di livello enterprise.
Specifiche principali:
- 16 slot modulabili per Supervisor Engine, Line Card e Switch Fabric
- Virtual Stack per alta disponibilità e gestione centralizzata
- QoS avanzato per priorità e qualità del traffico di rete
- Gestione intelligente con porte multiple e analisi in tempo reale
- Prestazioni elevate fino a 512 Tbps di capacità di switching e 96.000 Mpps
Ulteriori dettagli

Scheda tecnica
| Model | S10508 |
| Hardware | |
| PoE |
No |
| Total Slots |
16 |
| Supervisor Engine Module |
2 |
| Line Card |
8 |
| Switch Fabric Card |
6 |
| Debugging |
1 × Console port |
| Hot Plug |
Yes |
| Power Supply |
6 × Power supply, 100-240 VAC, 50/60 Hz |
| Operating Temperature |
0 °C to +45 °C (+32 °F to +113 °F) |
| Operating Humidity |
5%–95% (RH), non-condensing |
| Storage Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity |
5%–95% (RH), non-condensing |
| Power Consumption |
Full load: 3680 W |
|
Performance |
|
| Layer |
Layer 3 |
| Management Type |
Yes |
| Switching Capacity |
512 Tbps |
| Packet Forwarding Rate |
96000 Mpps |
| Packet Buffer Size |
288 Mbit |
| Jumbo Frame |
13312 Byte |
| MAC Table Size |
498K |
| VLAN Number |
4094 |
| VLAN Interface |
4094 |
| IPv4 Routes |
512K |
| Dynamic ARP |
88K |
| Communication Standard |
IEEE802.3; IEEE802.3u; IEEE802.3ab; IEEE802.3z; IEEE802.3x |
|
Feature |
|
| Ethernet Loop Protection |
STP/RSTP/MSTP/ERPS/PVST |
| VLAN Function | Yes |
| Link Aggregation | Static link aggregation Dynamic link aggregation Multi-chassis link aggregation |
| IEEE 802.3x Flow Control | IEEE 802.3x flow control Priority-based flow control |
| Multicast | IGMPv1/v2/v3 IGMP Snooping v1/v2/v3; PIM-SM/PIM-DM/PIM-SSM MSDP |
| Reliability | virtual stack VRRP DLDP |
| ARP | ARP Dynamic ARP source detection ARP anti-attack ARP source-suppression ARP Detection |
| DHCP Function | DHCP Client DHCP Snooping; DHCP Relay DHCP Server; |
| Security | Hierarchical user management and password protection AAA authentication support RADIUS authentication HWTACACS; SSH2.0 Port security IP Source Guard; 802.1X authentication and centralized MAC address authentication Portal authentication DHCP snooping Dynamic ARP detection BPDU guard and root guard uRPF IP/Port/MAC binding Plaintext authentication and MD5 authentication for OSPF and RIPv2 packets Public Key Infrastructure (PKI) |
| QoS/ACL | QoS/ACL |
| IPv6 | Yes |
| Equipment Management | FTP; TFTP; Xmodem SNMPv1/v2/v3; RMON |
| General | |
| Statics Protection |
Air discharge: 8 kV |
| Lighting Protection |
Common mode: 2 kV |
| Net Weight |
46.5 kg (102.51 lb) |
| Gross Weight |
80.5 kg (177.47 lb) |

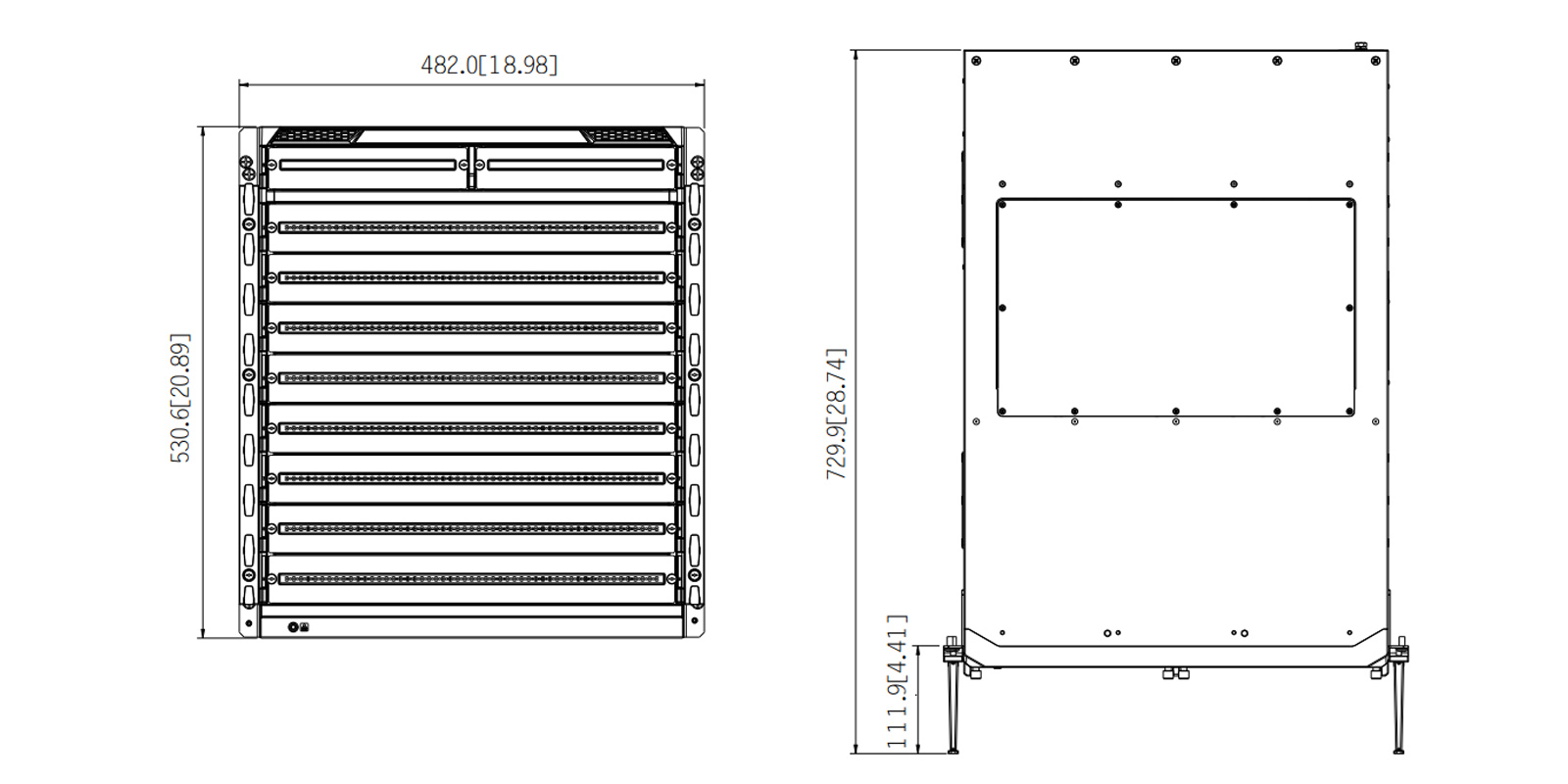

| Product Dimensions |
440 mm × 640 mm × 531 mm (17.32" × 25.20" × 20.91") (L × W × H) |
| Packaging Dimensions |
950 mm × 750 mm × 890 mm (37.40" × 29.53" × 35.04") (L × W × H) |
| Installation |
Rack mount |
