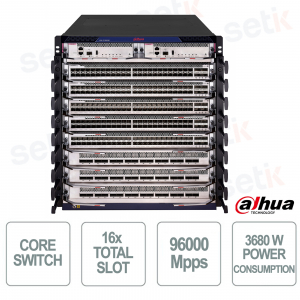

S10508 | CORE SWITCH 16 SLOT - 40GE


Dahua

The Dahua S10508 is a high-performance modular core switch ideal for complex, highly reliable enterprise networks. With 40GE Ethernet compatibility and MACsec encryption, it ensures advanced security and connection stability. The scalable design simplifies management and reduces operating costs, offering comprehensive control and enterprise-level performance.

Main specifications:

- 16 modular slots for Supervisor Engine, Line Card and Switch Fabric

- Virtual Stack for high availability and centralized management

- Advanced QoS for network traffic priority and quality

- Intelligent management with multiple ports and real-time analysis

- High performance up to 512 Tbps switching capacity and 96,000 Mpps

Further details

Slots:
Equipped with 16 modular slots , including 2 Supervisor Engine Modules , 8 Line Cards , and 6 Switch Fabric Cards , it allows for flexible and customizable expansion. This modular architecture makes it easy to upgrade the network and deploy resources as your business grows, while maintaining high performance and reliability .
Virtual Stack:
Virtual Stack technology allows you to virtualize multiple switches into a single logical system. It ensures high availability (HA) with data backup and continuous forwarding, eliminates single points of failure, and improves redundancy with multi-chassis link aggregation . It also simplifies management with a single IP address, reducing complexity and operating costs .
Abundant QoS Features:
The S10508 integrates advanced QoS features for intelligent network traffic management. It offers filters up to Layer 4 (MAC, IP, TCP/UDP, VLAN), scheduling algorithms such as Strict Priority (SP) and Weighted Round Robin (WRR) , as well as SP+WRR support for optimized bandwidth distribution. The port mirroring function simplifies network monitoring and troubleshooting .
Outstanding Management Capacity :
It features multiple management interfaces (console, USB, out-of-band Ethernet port) and advanced tools for real-time traffic monitoring and analysis . Thanks to local and remote Layer 2 mirroring, it allows you to generate detailed reports, optimize resource allocation, and maintain high operational efficiency. Redundant power supplies ensure continuity even in the event of a module failure.
Performance :
Enterprise-grade performance with up to 512 Tbps switching capacity and 96,000 Mpps throughput, capable of supporting high traffic volumes without interruption. It supports up to 4094 VLANs , a 498K-entry MAC table, 13,312-byte jumbo frames, and built-in security features such as Dynamic ARP Inspection and AAA/SSH authentication.
S10508 dimensions

Technical data sheet

Model S10508
Hardware
PoE

No

Total Slots

16

Supervisor Engine Module

2

Line Card

8

Switch Fabric Card

6

Debugging

1 × Console port
1 × USB port
1 × RJ-45 port
1 × SFP port

Hot Plug

Yes

Power Supply

6 × Power supply, 100-240 VAC, 50/60 Hz

Operating Temperature

0 °C to +45 °C (+32 °F to +113 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Consumption

Full load: 3680 W

Performance

Layer

Layer 3

Management Type

Yes

Switching Capacity

512 Tbps

Packet Forwarding Rate

96000 Mpps

Packet Buffer Size

288 Mbit

Jumbo Frame

13312 Bytes

MAC Table Size

498K

VLAN Number

4094

VLAN Interface

4094

IPv4 Routes

512K

Dynamic ARP

88K

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3ab; IEEE802.3z; IEEE802.3x

Feature

Ethernet Loop Protection

STP/RSTP/MSTP/ERPS/PVST

VLAN Function Yes
Link Aggregation Static link aggregation
Dynamic link aggregation
Multi-chassis link aggregation
IEEE 802.3x Flow Control IEEE 802.3x flow control
Priority-based flow control
Multicast IGMPv1/v2/v3
IGMP Snooping v1/v2/v3;
PIM-SM/PIM-DM/PIM-SSM
MSDP
Reliability virtual stack
VRRP
DLDP
ARP ARP
Dynamic ARP source detection
ARP anti-attack
ARP source suppression
ARP Detection
DHCP Function DHCP Client
DHCP Snooping;
DHCP Relay
DHCP Server;
Security Hierarchical user management and password protection
AAA authentication support
RADIUS authentication
HWTACACS;
SSH2.0
Port security
IP Source Guard;
802.1X authentication and centralized MAC address authentication
Portal authentication
DHCP snooping
Dynamic ARP detection
BPDU guard and root guard
uRPF
IP/Port/MAC binding
Plaintext authentication and MD5 authentication for OSPF and RIPv2 packets
Public Key Infrastructure (PKI)
QoS/ACL QoS/ACL
IPv6 Yes
Equipment Management FTP; TFTP; Xmodem
SNMPv1/v2/v3;
RMON
General
Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV
Differential mode: 1 kV

Net Weight

46.5 kg (102.51 lb)

Gross Weight

80.5 kg (177.47 lb)

Product Dimensions

440 mm × 640 mm × 531 mm (17.32" × 25.20" × 20.91") (L × W × H)

Packaging Dimensions

950 mm × 750 mm × 890 mm (37.40" × 29.53" × 35.04") (L × W × H)

Installation

Rack mount
