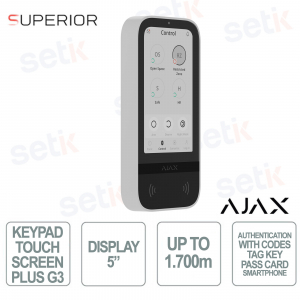

Tastiera Ajax G3 Jeweller: KeyPad TouchScreen Wireless con Autenticazione Smart e Funzioni di Sicurezza Evolute - Bianca
149672.148.WH1 #149672 Ajax Superior KeyPad TouchScreen G3 Jeweller è una tastiera wireless bianca di ultima generazione con display touch da 5", progettata per una gestione intelligente e sicura dei sistemi antifurto. Offre autenticazione avanzata tramite pass, tag, smartphone e codici, con interfaccia intuitiva, notifiche sonore/LED e protezioni anti-manomissione. Grazie alle tecnologie Superior Jeweller e Wings garantisce comunicazioni radio fino a 3.500 m, crittografia avanzata e aggiornamenti OTA. Include funzioni di emergenza, gestione dei dispositivi domotici, luminosità automatica e compatibilità con fino a 50 pass e smartphone. Una soluzione professionale, elegante e ad alta affidabilità per la sicurezza moderna. Ajax
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
BLACK WEEKEND 2025 ×
SPEDIZIONE GRATUITA
SU TUTTO IL CATALOGO!
Spesa minima: 149€
Codice: BLACK-FREE
Solo fino alle 10:00 del 1 dicembre
149672.148.WH1 | TASTIERA WIRELESS CON TOUCH SCREEN CHE SUPPORTA L'AUTENTICAZIONE TRAMITE PASS, TAG, SMARTPHONE E CODICI

Il Ajax Superior KeyPad TouchScreen G3 Jeweller, 149672.148.WH1, è una tastiera wireless bianca evoluta con display touch da 5", progettata per garantire un controllo intuitivo e sicuro dei sistemi di allarme grazie a autenticazione via pass, tag, smartphone e codici. La sua interfaccia moderna, le notifiche LED/sonore e le tecnologie radio Superior Jeweller & Wings assicurano comunicazioni stabili fino a 3.500 metri, mentre le avanzate funzioni anti-manomissione e di emergenza la rendono ideale per installazioni professionali ad alta affidabilità.
Specifiche principali:
- Schermo touch 5" (480×854 px) con regolazione automatica della luminosità
- Autenticazione tramite pass, tag, smartphone (BLE) e codici
- Comunicazione radio fino a 3.500 m con crittografia avanzata
- Protezioni anti-manomissione, anti-jamming e anti-spoofing
- Pulsanti di emergenza: panico, incendio e allarme ausiliario
- Notifiche su malfunzionamenti, eventi recenti e stato del sistema
- Installazione semplice tramite QR, batteria fino a 1,5 anni e aggiornamenti OTA
Ulteriori dettagli
Scheda tecnica
| 149672.148.WH1 | |
| Wireless communication | Superior Jeweller communication technology Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweller is an upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3). Key features:
865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Maximum effective radiated power (ERP) up to 20 mW Automatic power control to reduce power consumption and radio interference. Radio signal modulation GFSK Radio communication range Up to 1,700 m Up to 5,600 ft Encrypted communication All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. Frequency hopping Wings communication technology Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweller is an upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3). Key features:
865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Up to 1,700 m Up to 5,600 ft Encrypted communication All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. Frequency hopping |
| Display | Diagonal 5" Matrix type IPS Resolution 480 × 854 px Sensor capacitive Brightness settings
Backlight lifetime 30,000 hours Guaranteed backlight lifetime when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected. User interface |
| Key features | Panic buttons
Control
DESFire® EV1, EV2, EV3 ISO 14443-А (13.56 MHz) Access codes up to 200 personal codes One code per each user. The number of personal access codes depends on the hub model. 1 keypad code Per each Superior KeyPad TouchScreen G3 Jeweller. Duress codes up to 200 personal codes One code per each user. The number of personal duress codes depends on the hub model. 1 keypad code Per each Superior KeyPad TouchScreen G3 Jeweller. Codes for unregistered people up to 99 personal codes For people who are not registered in the Ajax system. The number of such codes depends on the hub model. Arming without entering a code The enabled feature allows the user to arm the system without entering a code or presenting the access device Group management Changing the security mode of the groups to which the user has access from the keypad’s display. Scenarios management A separate keypad tab contains up to 6 buttons, and each one can control one automation device or a group of devices. Indication of malfunctions and security mode
Fire alarm muting Turns off the fire detectors alarm, including the interconnected alarm. User pre-authorization When the feature is enabled, viewing the current system status and control screen is unavailable. For access, the user must pre-authorize: enter a code or present a personal access device to the keypad. Contactless authorization with a smartphone A smartphone with the installed Ajax app and Bluetooth Low Energy (BLE) support can be used instead of Tag or Pass to authorize a user. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and higher. Auto screen wakeup The keypad wakes up automatically when approaching it. The approaching distance can be adjusted in the app. Remote firmware update When a new firmware is available, an admin or PRO with the rights to configure the system can run the update in Ajax apps. The keypad must be connected to an external power supply to update the firmware. ACE Type type B |
| Recommendations | The device is designed for indoor use only. Please note that the keypad must be connected to an external power supply to update the firmware and keep the screen always active. |
| Sabotage protection | Unauthorized access auto-lock The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock duration can be adjusted by a PRO or user with admin rights in an Ajax app. Tamper alarm The system sends notifications about attempts to detach the keypad from the surface or remove it from the mounting panel. Holding screw Secures the device on SmartBracket. Protection against spoofing Ensures device authentication during communication with a hub. Communication loss detection after 36 s Detection time depends on Jeweller or Jeweller/Fibra settings. |
| Power supply | Battery 6 × AA Pre-installed. Type type C Calculated battery life up to 1.5 years With default settings and up to 4 interactions with a keypad per day. Operating voltage range 10.5–14 V⎓, up to 0.4 A The batteries serve as a backup when the external power supply is connected. Nominal operating voltage 12 V⎓ Quiescent current consumption at nominal voltage 46 μA Maximum current consumption at nominal voltage 1.5 mA Full battery capacity 2.650 mAh Low battery voltage 6.6 V⎓ Low battery recovery voltage 8.1 V⎓ End-of-life battery voltage 4.92 V⎓ The device switches off. End-of-life battery capacity 350 mAh |
| Enclosure | Dimensions dimensions 172 × 82 × 26 mm 6.77″ × 3.23″ × 1.02″ Weight 327 g 11.54 oz Operating temperature range from −10 °C to +40 °C from 14 °F to 104 °F Operating humidity up to 75% |
| Color | White |
| Complete set | Superior KeyPad TouchScreen G3 Jeweller SmartBracket mounting panel 6 × AA battery (pre-installed) Installation kit Quick start guide |
| Warranty | 24 months |
