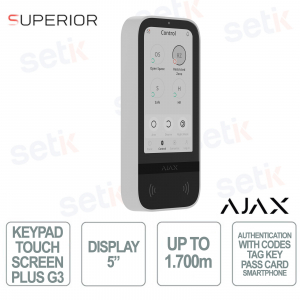

Ajax G3 Jeweler Keypad: Wireless Touchscreen Keypad with Smart Authentication and Advanced Security Features - White
149672.148.WH1 #149672 Ajax Superior KeyPad TouchScreen G3 Jeweler is a latest-generation white wireless keypad with a 5" touch display, designed for intelligent and secure management of burglar alarm systems. It offers advanced authentication via pass, tag, smartphone, and codes, with an intuitive interface, sound/LED notifications, and tamper protection. Thanks to Superior Jeweler and Wings technologies, it guarantees radio communication up to 3,500 m, advanced encryption, and OTA updates. It includes emergency functions, home automation device management, automatic brightness, and compatibility with up to 50 passes and smartphones. A professional, elegant, and highly reliable solution for modern security. Ajax
TOTALER AUSVERKAUF ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
BLACK WEEKEND 2025 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
Minimum purchase: 249€
Code: BLACK-FREE-E
Only until 10:00 a.m. on 1 December
149672.148.WH1 | WIRELESS TOUCH SCREEN KEYBOARD SUPPORTING PASS, TAG, SMARTPHONE, AND CODES AUTHENTICATION

The Ajax Superior KeyPad TouchScreen G3 Jeweler, 149672.148.WH1, is an advanced white wireless keypad with a 5" touch display, designed to ensure intuitive and secure control of alarm systems thanks to authentication via passcode, tag, smartphone, and codes. Its modern interface, LED/audible notifications, and Superior Jeweler & Wings radio technologies ensure stable communications up to 3,500 meters, while the advanced tamper and emergency functions make it ideal for highly reliable professional installations.
Main specifications:
- 5" touch screen (480×854 px) with automatic brightness adjustment
- Authentication via pass, tag, smartphone (BLE) and codes
- Radio communication up to 3,500 m with advanced encryption
- Anti-tampering, anti-jamming and anti-spoofing protections
- Emergency buttons: panic, fire and auxiliary alarm
- Notifications about malfunctions, recent events and system status
- Easy installation via QR code, up to 1.5 years battery life and OTA updates
Further details
Technical data sheet
| 149672.148.WH1 | |
| Wireless communication | Superior Jeweler communication technology Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweler is an upgraded version of the Jeweler radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3). Key features:
865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Maximum effective radiated power (ERP) up to 20 mW Automatic power control to reduce power consumption and radio interference. Radio signal modulation GFSK Radio communication range Up to 1,700 m Up to 5,600 ft Encrypted communication All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. Frequency hopping Wings communication technology Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweler is an upgraded version of the Jeweler radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3). Key features:
865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Up to 1,700 m Up to 5,600 ft Encrypted communication All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. Frequency hopping |
| Display | Diagonal 5" Matrix type IPS Resolution 480 × 854 px Sensor capacitive Brightness settings
Backlight lifetime 30,000 hours Guaranteed lifetime backlight when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected. User interface |
| Key features | Panic buttons
Control
DESFire® EV1, EV2, EV3 ISO 14443-A (13.56 MHz) Access codes up to 200 personal codes One code for each user. The number of personal access codes depends on the hub model. 1 keypad code For each Superior KeyPad TouchScreen G3 Jeweller. Duress codes up to 200 personal codes One code for each user. The number of personal toughness codes depends on the hub model. 1 keypad code For each Superior KeyPad TouchScreen G3 Jeweller. Codes for unregistered people up to 99 personal codes For people who are not registered in the Ajax system. The number of such codes depends on the hub model. Arming without entering a code The enabled feature allows the user to arm the system without entering a code or presenting the access device Group management Changing the security mode of the groups to which the user has access from the keypad's display. Scenarios management A separate keypad tab contains up to 6 buttons, and each one can control one automation device or a group of devices. Indication of malfunctions and security mode
Fire alarm muting Turns off the fire detectors alarm, including the interconnected alarm. User pre-authorization When the feature is enabled, viewing the current system status and control screen is unavailable. For access, the user must pre-authorize: enter a code or present a personal access device to the keypad. Contactless authorization with a smartphone A smartphone with the installed Ajax app and Bluetooth Low Energy (BLE) support can be used instead of Tag or Pass to authorize a user. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and higher. Auto screen wakeup The keypad wakes up automatically when approaching it. The approaching distance can be adjusted in the app. Remote firmware update When a new firmware is available, an admin or PRO with the rights to configure the system can run the update in Ajax apps. The keypad must be connected to an external power supply to update the firmware. ACE Type type B |
| Recommendations | The device is designed for indoor use only. Please note that the keypad must be connected to an external power supply to update the firmware and keep the screen always active. |
| Sabotage protection | Unauthorized access auto-lock The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock duration can be adjusted by a PRO or user with admin rights in an Ajax app. Tamper alarm The system sends notifications about attempts to detach the keypad from the surface or remove it from the mounting panel. Holding screw Secures the device on SmartBracket. Protection against spoofing Ensures device authentication during communication with a hub. Communication loss detection after 36 s Detection time depends on Jeweler or Jeweler/Fibra settings. |
| Power supply | Battery 6 × AA Pre-installed. Type type C Calculated battery life up to 1.5 years With default settings and up to 4 interactions with a keypad per day. Operating voltage range 10.5–14 V⎓, up to 0.4 A The batteries serve as a backup when the external power supply is connected. Nominal operating voltage 12 V⎓ Quiescent current consumption at nominal voltage 46 μA Maximum current consumption at nominal voltage 1.5 mA Full battery capacity 2,650 mAh Low battery voltage 6.6 V⎓ Low battery recovery voltage 8.1 V⎓ End-of-life battery voltage 4.92 V⎓ The device switches off. End-of-life battery capacity 350 mAh |
| Enclosure | Dimensions dimensions 172 × 82 × 26 mm 6.77″ × 3.23″ × 1.02″ Weight 327 g 11.54 oz Operating temperature range from −10 °C to +40 °C from 14 °F to 104 °F Operating humidity up to 75% |
| Color | White |
| Complete set | Superior KeyPad TouchScreen G3 Jeweller SmartBracket mounting panel 6 × AA battery (pre-installed) Installation kit Quick start guide |
| Warranty | 24 months |
