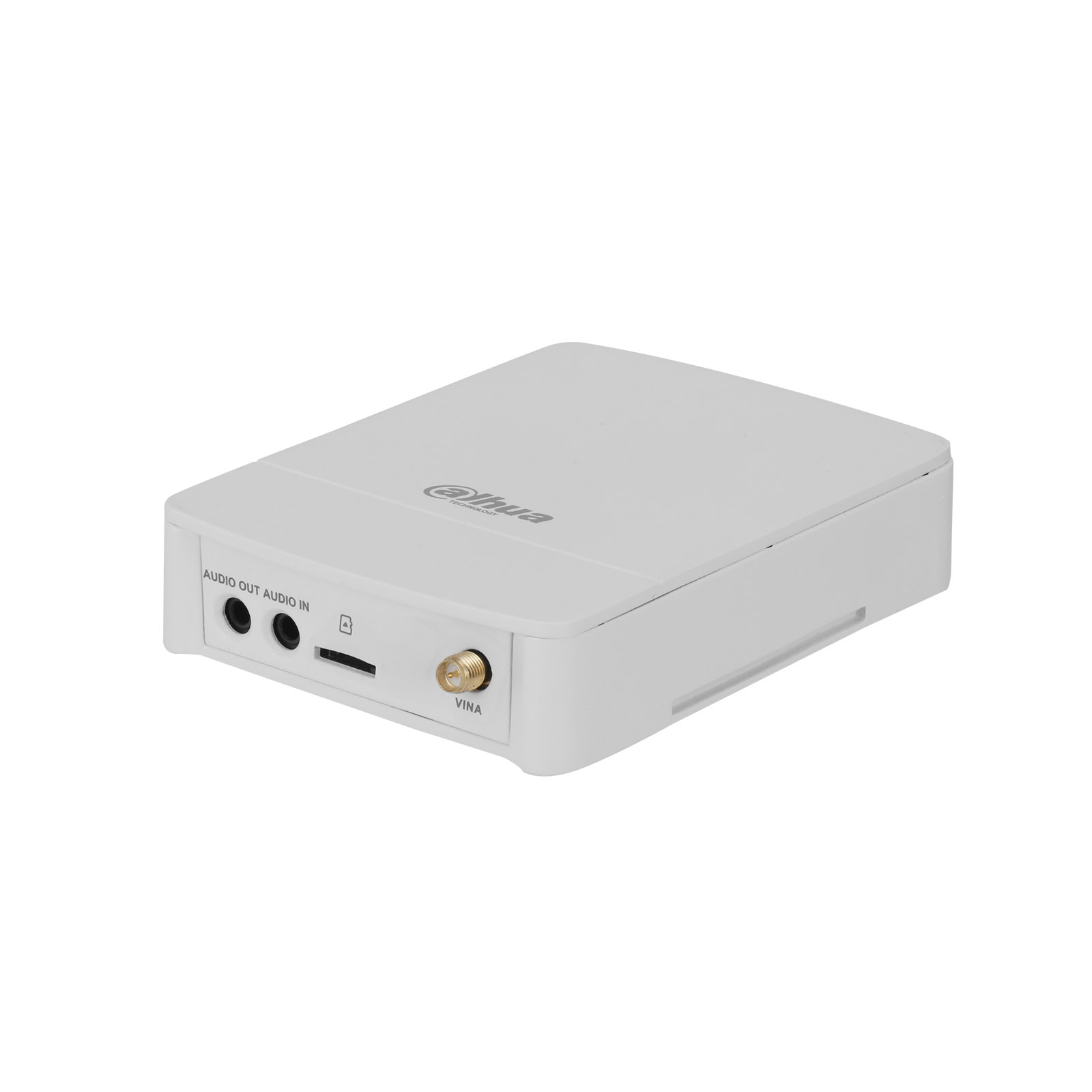

IPC-HUM8241E-E1 - Mini Telecamera IP da sorveglianza 2MP, ONVIF PoE, Compressione fino a H.265+, Triplo Stream, Rilevamento Intelligente (IVS) e Rilevamento Facciale, Smart Search, ROI, Day/Night, BLC, HLC, WDR 120dB, ROI, defog AUDIO 1in&out e Allarme 2 in&out. Slot MicroSD 512GB (non incluso). Dahua
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>
MINI TELECAMERA IP ONVIF® POE DAHUA 2 MEGAPIXEL - VIDEO ANALISI - RILEVAMENTO FACCIALE - AUDIO e ALLARME

Risoluzione 2 Megapixel - Rilevamento Volto e Protezione perimetro (IVS)
- Day/Night - ROI / WDR 120 dB / BLC / HLC / Defog - Audio (Ingresso/Uscita) - Allarme (Ingresso/Uscita)
Dettagli prodotto

- Mini Telecamera IP ONVIF® PoE Dahua
 - Triplo Stream
 - Comprensione video fino a H.265+
 - Risoluzione 2MP
 - Day/Night(Elettronico) BLC, HLC, WDR real 120dB, Defog
 - Video Analisi: Attraversamento Linea, Intresuione
 - Rilevamento Facciale
 - Cloud P2P con applicazione Easy4ip
 - Audio: 1 entrata / 1 uscita
 - Allarme: 2 ingressi / 2 entrate
 - Sprovvista di ottica - Richiede mini unità sensore fotocamera
 - Slot Micro SD (massimo 512GB - Non Inclusa)

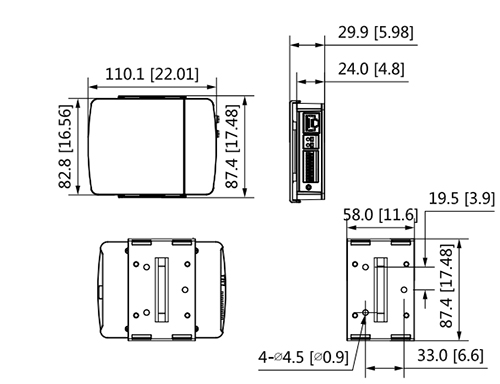

 - Dimensioni: 110 mm × 83 mm × 24 mm

Scheda tecnica
| Model | IPC-HUM8241E-E1 |
| Camera | |
| Image Sensor | 1/2.7” |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM / RAM | 256 MB / 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 Lux@F2.0 (Color,30 IRE)  0.0005 Lux@F2.0 (B/W,30 IRE)  |
| S/N Ratio | >56 dB |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Smart Object Detection | Smart abandoned object; smart missing object |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and 8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); face snapshot set as face or one-inch photo; 3 snapshot strategies (real-time snapshot, optimization snapshot, and quality priority); face angle filter; optimization time setting |
| People Counting | Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management; 4 rules can be set for tripwire, people counting in area and queue management. |
| Privacy Protection | Mosaics can be automatically placed over the face or body of a person to protect their privacy |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video(working together with lens unit) | |
| Video Compression |
 H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)  |
| AI Codec |
 AI H.265; AI H.264  |
| Video Frame Rate | Main stream: 1920 × 1080@(1–50/60 fps)  Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080 @25/30 fps *High frame rate of main stream is supported under monitoring mode only Note: AI/WDR cannot be enabled at the same time as high frame rate.  |
| Stream Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720) ; D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR;ABR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps  |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Manual; auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Audio Compression |
 G.711a; G.711Mu; PCM; G.726; G.723  |
| Alarm | |
| Alarm |
 No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, fast moving, missing object, abandoned object, parking detection, loitering detection, people gathering; scene changing, audio detection, voltage detection, external alarm, face detection , and security exception  |
| Network | |
| Ethernet |
 RJ-45 (10/100 Base-T)  |
| SDK and API |
 Yes  |
| Network Protocol |
 IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration  |
| Interoperability |
 ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec  |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 G); NAS |
| Browser | IE: IE8, IE9, and IE11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS; DoLynk Care |
| Mobile Client | IOS; Android |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Certifications | |
| Certifications |
 CE-LVD:EN62368-1;   |
| Port | |
| Audio Input | 1 channel (3.5 mm JACK port) |
| Audio Output | 1 channel (3.5 mm JACK port) |
| Alarm Input | 2 channels in: 5 mA 3V–5V DC |
| Alarm Output | 2 channels out: 1,000 mA 30V DC/500mA 50V DC |
| Power | |
| Power Supply | 12V DC/PoE(802.3af) |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4 W (12 VDC); 5.6 W (PoE); Max.: 5.7 W (12 VDC); 6.7 W (PoE) (High frame rate + Intelligence on + WDR)  |
| Environmental | |
| Operating Temperature | –40°C to +60°C (–40°F to 140°F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40°C to +60°C (–40°F to 140°F) |
| Storage Humidity | ≤95% (RH) , non-condensing |
| Construction | |
| Casing | Metal |
| Dimensions | 110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94") |
| Net Weight | 210 g (0.5 lb) |
| Gross Weight | 376 g (0.8 lb) |
Ulteriori dettagli
![]()  |
Il Vantaggio di una telecamera PoE è evidente, permette di essere alimentata con lo stesso cavo con la quale si comunica senza portare ulteriori cavi d'alimentazione e senza dover installare un sistema di alimentazione separato, una telecamera PoE garantisce tensioni costanti ed installazione semplice |
![]()  |
Onvif, lo standard in assoluto per le telecamere IP. Essere Onvif garantisce compatibilità con qualsiasi sistema di registrazione moderno. NON essere Onvif, significa avere una telecamera fine a se stessa che non potrà mai essere utilizzata insieme a sistemi di registrazione. |
![]()  |
Questa telecamera presenta una risoluzione di 2Megapixel: 2MP |
|

    |
 Smart H.265+ Smart H.265+ è l'implementazione ottimizzata del codec H.265 che utilizza una strategia di codifica adattiva alla scena, GOP dinamico, ROI dinamico, struttura di riferimento multi-frame flessibile e riduzione del rumore intelligente utile per fornire video di alta qualità senza affaticare la rete. Smart H.265+ riduce di molto il bit rate e i requisiti di archiviazione rispetto alla compressione H.265 standard
  |
![]()  |
Main stream: 1920 × 1080@(1–50/60 fps) Sub Stream: 1920 × 1080@(1–25/30 fps) Third Stream: 1920 × 1080 @25/30 fps  |
|
 Funzione Cloud con Easy4IP
  |
|
![]()  |
 Questa telecamera prevede funzioni intelligenti avanzate: - Rilevamento Volto
  |
 ![]()  |
 Questa telecamera prevede funzioni di la VIDEO ANALISI (SMART DETECTION):

  |
![]()  |
 ULTRA WDR fino a 120dB WDR (Wide Dynamic Range): E' la soluzione professionale nei casi in cui si deve operare in condizioni di alto contrasto luce/ombra. Fondamentale in caso di riprese dall'interno verso l'esterno, targhe, punti in ombra o tutte le situazioni dove non è presente omogeneità di luce. ![]()  |
![]()  |
Day/Night: permette di adattare la lente alla visione notte/giorno, e la relativa gestione automatica dell'Illuminatore IR, quando presente.![]()  |
![]()  |
 BLC (Back Light Compensation): è uno dei 3 passaggi possibili nella gestione delle immagini con contrasto, situazioni tipiche sono: entrate o uscite da parcheggi, targhe, luci particolari, ingressi con riprese dall'interno verso l'esterno, ecc. La compensazione della luce è una delle operazioni più complesse possibili, la funzione BLC permette un discreto adattamento a queste situazioni ![]()  |
|


  |
 Questa telecamera è dotata di: 1 ingresso + 1 uscita audio 2 ingresso + 2 uscita allarme  |
|
 Possibilità di inserire Micro SD fino a massimo 512Gb (Non Inculusa)  |
|
![]()  |
 Alimentatore 12V DC NON incluso!
  |
| Questo prodotto è coperto da Garanzia di 24 mesi. |
