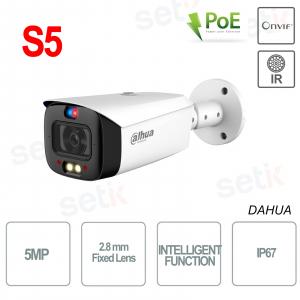

IPC-HFW3549T1-AS-PV-S5 Dahua Wizsense Telecamera Bullet IP esterno Onvif PoE, 5 Megapixel 5MP, sensore CMOS 1/2.7" Deterrenza attiva, Ottica fissa 2.8mm, Doppio illuminatore IR 30MT, compressione smart H.265+, 1x ingresso + 1x uscita audio, 1x ingresso + 1x uscita allarme, Day/Night, BLC, HLC, 3D NDR, WDR 120dB, Protezione perimetro, ROI, Slot MicroSD, Protezione IP67. Versione S5
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
TELECAMERA BULLET IP ONVIF POE DA ESTERNO - 5 MEGAPIXEL CON INTELLIGENZA ARTIFICIALE LITE - AUDIO / ALLARME - VIDEO ANALISI - S5 - DAHUA

Risoluzione 5Megapixel - Ottica fissa 2.8mm - CMOS 1/2.7" Deterrenza attiva - Doppio illuminatore IR 30MT, - Compressione smart H.265+, 1x ingresso + 1x uscita audio, 1x ingresso + 1x uscita allarme, Day/Night, BLC, HLC, 3D NDR, WDR 120dB, Protezione perimetro, ROI, Slot MicroSD, Protezione IP67. Versione S5
|
TECNOLOGIA AI | INTELLIGENZA ARTIFICIALE: |
Dettagli prodotto

- Telecamera Bullet AI IP esterno PoE - Dahua
- Versione S5
- Risoluzione 5Megapixel 5MP
- Ottica fissa 2.8mm
- Sensore 1/2.7”
- Deterrenza Attiva
- Video compressione smart H.265+
- Triplo Stream
- WDR 120dB - Day/Night - 3DNR,AWB,AGC,BLC, ROI,
- Audio: 1 In - 1 Out
- Allarme: 1 in - 1 Out
- Intelligenza Artificiale: Protezione Perimetro, Intrusione
- Slot per memoria Micro SD (Fino a 256GB - non inclusa)
- Protezione IP67
- Materiale: Metallo + Plastica
- Alimentatore NON incluso
- Garanzia 24 mesi
Scheda tecnica
| Model | IPC-HFW3549T1-AS-PV-S5 |
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Effective Pixel | 2960 (H) × 1668 (V) |
| ROM/RAM | 256 MB/1 GB |
| Scanning System | Progressive |
| Electronic Shutter speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.003 lux@F1.0 (Color, 30 IRE) |
| S/N Ratio |
>56 dB |
| Illumination Distance |
Up to 30 m (98.43 ft) (IR) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number |
2 (IR LED) 2 (warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 97°; V: 70°; D: 128° |
| Iris Type | Fixed |
| Close Focus Distance | 1.5 m (4.92 ft) |
| Professional, Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Codec | AI H.265 (Compression rate ≥25%) AI H.264 (Compression rate ≥25%) |
| Video Frame Rate | Main stream: 2880 × 1620/2960 × 1668 @(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Stream Capability | 3 streams |
| Resolution | 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA(640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR; ABR |
| Video Bit Rate |
H.264: 3 kbps–16384 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-Adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage |
FTP; SFTP; Micro SD card (support max. 512 G); NAS |
| Browser | IE: IE 11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Smartphone | iOS; Android |
| Cyber security | Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
| Certifications | |
| Certifications |
CE-LVD: EN 62368-1; |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption |
Basic: 3.7 W (12 VDC); 4.8 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Ingress Protection | IP67 |
| Structure | |
| Casing | Metal + plastic |
| Dimensions | 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72"× 3.33")(L × W × H) |
| Net Weight | 1.0 kg (2.20 lb) |
| Gross Weight | 1.23 kg (2.71 lb) |
Ulteriori dettagli
![]() |
Onvif: Tutte Onvif, lo standard in assoluto per le telecamere IP, essere Onvif garantisce compatibilità con qualsiasi sistema di registrazione moderno. NON essere Onvif, significa avere una telecamera fine a se stessa che non potrà mai essere utilizzata insieme a sistemi di registrazione
Questa telecamera è compatibile ONVIF® |
![]() |
PoE (Power Over Ethernet): Il Vantaggio di una telecamera PoE è evidente, permette di essere alimentata con lo stesso cavo con la quale si comunica senza portare ulteriori cavi d'alimentazione e senza dover installare un sistema di alimentazione separato, una telecamera PoE garantisce tensioni costanti ed installazione semplice |
|
|
AI Intelligenza artificiale: Questa telecamera presenta Intelligenza Artificiale a bordo - Protezione perimetro: Intrusione, Attraversamento linea (classificazione persone&veicoli) - Motion Detection - Audio Detection
|
|
|
Smart H.265+ Smart H.265+ è l'implementazione ottimizzata del codec H.265 che utilizza una strategia di codifica adattiva alla scena, GOP dinamico, ROI dinamico, struttura di riferimento multi-frame flessibile e riduzione del rumore intelligente utile per fornire video di alta qualità senza affaticare la rete. Smart H.265+ riduce di molto il bit rate e i requisiti di archiviazione rispetto alla compressione H.265 standard
|
![]() |
Risoluzione: Questa telecamera presenta una risoluzione di 5Megapixel |
![]() |
Ottica: Questa telecamera presenta ottica fissa 2.8mm |
![]() |
Stream: |
![]() |
BLC (Back Light Compensation): |
![]() |
WDR (Wide Dynamic Range): WDR (Wide Dynamic Range): E' la soluzione professionale nei casi in cui si deve operare in condizioni di alto contrasto luce/ombra. Fondamentale in caso di riprese dall'interno verso l'esterno, targhe, punti in ombra o tutte le situazioni dove non è presente omogeneità di luce. |
![]() |
Audio: Questa telecamera presenta: 1 Ingresso e 1 Uscita Audio |
![]() |
Allarme: Questa Telecamera Presenta: 1 Ingresso e 1 Uscita Allarme |
![]() |
Day/Night: Day/Night: permette di adattare la lente alla visione notte/giorno, e la relativa gestione automatica dell'Illuminatore IR, quando presente. |
![]() |
ROI: Questa telecamera è dotata di funzione ROI. |
![]() |
Livello di protezione IP67 ( Polveri / Immersioni ) |
|
Possibilità di inserire Micro SD fino a massimo 256Gb - non inclusa |
|
![]() |
Alimentatore NON incluso![]() |
| Questo prodotto è coperto da Garanzia di 24 mesi. |
