Bullet Camera S5 Version Wizsense Video Analysis Outdoor IP Onvif PoE 5MP mm Dahua

Bullet Camera S5 Version Wizsense Video Analysis Outdoor IP Onvif PoE 5MP mm Dahua
BEST PRICE -57%

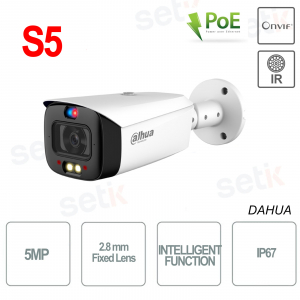

IPC-HFW3549T1-AS-PV-S5 Dahua Wizsense External IP Bullet Camera Onvif PoE , 5 Megapixel 5MP , 1/2.7" CMOS sensor Active deterrence, 2.8mm fixed lens, Dual 30MT IR illuminator, H.265+ smart compression, 1x input + 1x audio output, 1x input + 1x alarm output, Day/Night, BLC, HLC, 3D NDR, WDR 120dB, Perimeter protection , ROI, MicroSD slot , IP67 protection

Reference: IPC-HFW3549T1-AS-PV-S5

Brand: Dahua

EAN: 6923172525543

FIND INSTALLER

€291.15

€677.10 -57%
taxes included
Tax included
  Available
 Available
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno

DAHUA LOW PRICES:×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>


OUTDOOR ONVIF POE IP BULLET CAMERA - 5 MEGAPIXEL WITH LITE ARTIFICIAL INTELLIGENCE - AUDIO / ALARM - VIDEO ANALYSIS - S5 - DAHUA

Dahua
Outdoor ONVIF PoE IP Bullet Camera - Wizsense - S5 Version
5Megapixel resolution - 2.8mm fixed lens - 1/2.7" CMOS Active deterrence - Double 30MT IR illuminator, - H.265+ smart compression, 1x input + 1x audio output, 1x input + 1x alarm output, Day/Night, BLC, HLC , 3D NDR, WDR 120dB, Perimeter protection , ROI, MicroSD slot , IP67 protection Version S5

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the artificial intelligence used is that which allows the creation of advanced devices for environmental analysis.

Product details

IPC-HFW3549T1-AS-PV-S3 Telecamera AI IP ONVIF® PoE 4MP
  • PoE External IP IP Bullet Camera - Dahua
  • S5 version
  • 5Megapixel 5MP resolution
  • 2.8mm fixed lens
  • 1/2.7” sensor
  • Active Deterrence
  • H.265+ smart video compression
  • Triple Stream
  • WDR 120dB - Day/Night - 3DNR,AWB,AGC,BLC, ROI,
  • Audio: 1 In - 1 Out
  • Alarm: 1 in - 1 Out
  • Artificial Intelligence : Perimeter Protection, Intrusion
  • Micro SD memory slot (Up to 256GB - not included)
  • IP67 protection
  • Material: Metal + Plastic
  • Power supply NOT included
  • 24 month warranty

Data sheet

Model IPC-HFW3549T1-AS-PV-S5
Room
Image Sensor 1/2.7" CMOS
Effective Pixels 2960(H)×1668(V)
ROM/RAM 256MB/1GB
Scanning System Progressives
Electronic Shutter speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination

0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE);
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (warm light)

Illuminator On/Off Control Auto/Manual
Illuminator Number

2 (IR LED) 2 (warm light)

Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed focus
Mount Type M12
Focal Length 2.8mm
Max. Openings F1.0
Field of View H: 97°; V: 70°; D: 128°
Iris Type Fixed
Close Focus Distance 1.5 m (4.92 ft)
Professional, Intelligent
IVS (Perimeter Protection) Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
SMD SMD 4.0
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO SSA Adopt deep learning algorithms to adjust the parameters
of the image to suit the conditions.
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codecs Smart H.265+; Smart H.264+
AI Codec AI H.265 (Compression rate ≥25%)
AI H.264 (Compression rate ≥25%)
Video Frame Rate Main stream: 2880 × 1620/2960 × 1668 @(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability 3 streams
Resolution 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080P (1920×1080); 1.3M (1280×960); 720P (1280×720); D1 (704 × 576/704 × 480); VGA(640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR; CBR; ABR
Video Bit Rate

H.264: 3kbps–16384kbps
H.265: 3kbps–16384kbps

Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120dB
Scene Self-Adaptation Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car; manual
Noise Reduction 3D NO
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart IR Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
LDC Yes
Audio
Built-in MIC Yes, built-in dual Mic
Built-in speaker Yes, built-in speaker
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Ethernet RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability ONVIF® (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 64M)
Storage

FTP; SFTP; Micro SD card (support max. 512G); NAS

Browsers IE: IE 11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Smartphones iOS; Android
Cyber security Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
Certifications
Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU

Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption

Basic: 3.7W (12VDC); 4.8W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.3 W (12 VDC); 8.8W (PoE)

Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperatures –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Ingress Protection IP67
Structure
Casing Metal + plastic
Dimensions 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H)
Net Weight 1.0kg (2.20lb)
Gross Weight 1.23 kg (2.71 lb)

Further details

Questo prodotto rispetta lo standard Onvif

Onvif:

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

PoE power supply

PoE (Power Over Ethernet):

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation

AI Artificial Intelligence:

This camera features Artificial Intelligence on board

- Perimeter protection: Intrusion, Line crossing (people & vehicles classification)

- Motion Detection

- Audio Detection

AI Camera - Cattura del volto

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Risoluzione 5 Megapixel

Resolution:

This camera features a resolution of 5Megapixels

Ottica fissa

Optics:

This camera has a 2.8mm fixed lens

Streams:
Main stream : 2880 × 1620/2960 × 1668 @(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream : 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream : 1920 × 1080@(1 fps–30 fps)

BLC (Back Light Compensation):
It is one of the 3 possible steps in managing images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc.) light compensation is one of the most as complex as possible, the BLC function allows discreet adaptation to these situations


Click to enlarge

WDR (Wide Dynamic Range):

WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.

Interfaccia audio

Audio:

This camera features: 1 Audio Input and 1 Audio Output

Alarm:

This camera features: 1 alarm input and 1 alarm output

Icon Day/Night function

Day/Night:

Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
Example Day/Night function

Funzione ROI

ROI:

This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
Ultra Smart Funzione ROI

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256Gb - not included

12V 3A power supply Power supply NOT included
12V DC power supply
Italian Guarantee icon This product is covered by a 24 month warranty.

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
