IPC-HDBW1431R-ZS-S4 | TELECAMERA IP OTTICA VARIFOCALE 2.8-12mm - MOTION DETECTION - SMART ILLUMINATION

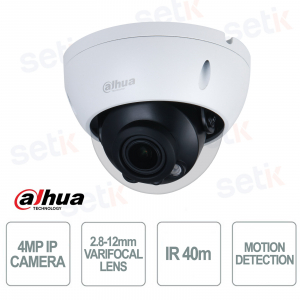

La Dahua IPC-HDBW1431R-ZS-S4 è una telecamera dome IP da 4MP progettata per offrire protezione professionale in ambienti interni ed esterni. Dotata di ottica vari-focale motorizzata, compressione video Smart H.265+, visione notturna fino a 40 metri e protezione antivandalo IK10, è ideale per abitazioni, retail e piccole imprese.
Specifiche principali:
- 4MP con WDR 120 dB, immagini chiare anche in forte controluce
- Ottica vari-focale 2.8–12 mm con zoom motorizzato e autofocus
- IR fino a 40 m con regolazione automatica Smart Illumination
- Motion detection e allarmi intelligenti contro manomissioni e intrusioni
- IP67 e IK10, resistente ad acqua, polvere e urti
- PoE, ONVIF, microSD fino a 256 GB, piena compatibilità di rete
Ulteriori dettagli
✅ Smart Illumination:
✅ Network:

Scheda tecnica
| MODEL | IPC-HDBW1431R-ZS-S4 |
| Camera | |
| Image Sensor | 1/3 ”4Megapixel progressive CMOS |
| Max. Resolution | 2688 (H) ×1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Min. Illumination | Auto/Manual 1/3 s–1/100000 s |
| S/N Ratio | > 56 dB |
| Min. Illumination | 0.03 Lux @ F1.7 |
| Illumination Distance | 40 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.8 mm–12 mm |
| Max. Aperture | F1.7 |
| Field of View | Horizontal: 98°–31° Vertical: 55°–18° Diagonal: 116°–36° |
| Iris Type | Fixed aperture |
| Close Focus Distance | 0.8 m (2.6 ft) |
| Video | |
| Video Compression | H.265; H.264; H.264B; MJPEG |
| Smart Codec | Yes |
| Video Frame Rate | Main Stream: 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub Stream: 704 × 576 (1 fps–20/25 fps) 704 × 480 (1 fps–20/30 fps) |
| Streaming Capability | 2 stream |
| Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Manual/Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Alarm | |
| Alarm Event | Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception; defocus detection; |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host | 20 |
| Storage | Dahua Cloud; FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | Android;iOS |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Power | |
| Power Supply | 12V DC/POE (802.3af) |
| Power Consumption | < 6.4W |
| Environment | |
| Operating Conditions | -30°C to +60°C (-22°F to +140°F)/less than≤95% |
| Strorage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection | IP67 |
| Structure | |
| Casing | metal |

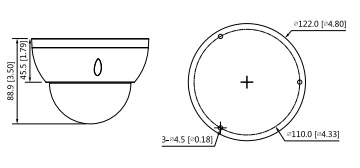

| Product Dimensions | 88.9 mm × Φ122 mm (3.5" × Φ4.8") |
| Net Weight | 0.46 kg (1.0 lb) |
| Gross Weight | 0.64 kg (1.4 lb) |
