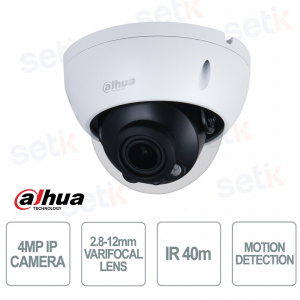

Dahua 4MP IP Dome Camera with Motorized Lens and 40m IR

Dahua 4MP IP Dome Camera with Motorized Lens and 40m IR
UNTER COSTEN -57% Neu

IPC-HDBW1431R-ZS-S4 - is a 4MP IP dome camera with a 1/3" CMOS sensor, 2.8–12 mm vari-focal motorized lens and H.265 compression for high-quality videos with low bandwidth consumption. Thanks to IR night vision up to 40 meters, Smart Illumination technology and 120 dB WDR, it guarantees clear images even in critical light conditions. It supports advanced Motion Detection, microSD storage up to 256 GB and ONVIF protocols. IP67 and IK10 protection makes it perfect for outdoor installations in residential or commercial environments. Dahua

Technical Data Sheet

Artikel-Nr.: IPC-HDBW1431R-ZS-S4

Marke: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HDBW1431R-ZS-S4 | VARIFOCAL OPTIC IP CAMERA 2.8-12mm - MOTION DETECTION - SMART ILLUMINATION


Dahua

The Dahua IPC-HDBW1431R-ZS-S4 is a 4MP IP dome camera designed to offer professional protection in indoor and outdoor environments. Equipped with a motorized vari-focal lens, Smart H.265+ video compression, night vision up to 40 meters and IK10 vandal-proof protection, it is ideal for homes, retail and small businesses.

Main specifications:

- 4MP with WDR 120dB, clear images even in strong backlight

- 2.8–12 mm vari-focal lens with motorized zoom and autofocus

- IR up to 40m with automatic Smart Illumination adjustment

- Motion detection and intelligent alarms against tampering and intrusion

- IP67 and IK10, resistant to water, dust and shock

- PoE, ONVIF, microSD up to 256GB, full network compatibility

Further details

Resolution:
The Dahua camera offers a maximum resolution of 2688 × 1520 pixels at 20 fps, thanks to a 1/3" 4MP CMOS sensor. It also supports 2560 × 1440 up to 30 fps, ensuring smooth and high-definition images. The 120 dB WDR function allows you to better manage areas with strong light contrasts, providing details in both bright and shadow areas.
Optics :
The 2.8 to 12 mm motorized vari-focal lens allows precise adjustment of the viewing angle, from 98° to 31° horizontally. It includes autofocus and F1.7 aperture, ideal for installation in environments that require both wide overviews and focusing on details. The DORI support guarantees detection distances of up to 200 m (Detect) and 20 m (Identify).
Motion Detection :
It integrates Dahua 4-area motion detection technology, which triggers recording or alarms when there is intrusion or suspicious activity. It can detect anomalies such as video tampering, unauthorized access, network disconnection, SD card error or IP conflict.

Smart Lighting:
Thanks to the integrated IR LEDs and the Smart Illumination function, the camera is able to illuminate up to 40 meters, automatically adjusting the intensity based on the distance of the subject. This function guarantees a clear and uniform vision even in complete darkness, avoiding overexposure.

Network:
Connectivity is handled via a 10/100 Base-T RJ-45 port, with PoE (802.3af) power, simplifying installation. It supports a wide range of protocols such as IPv4/IPv6, HTTPS, RTSP, FTP, SFTP, ONVIF (S/G/T) and more. Advanced cyber security features include video encryption, secure authentication, trusted boot, security logs and cyber attack protection.
IPC-HDBW1431R-ZS-S4 dimensions

Technical data sheet

MODEL IPC-HDBW1431R-ZS-S4
Room
Image Sensor 1/3”4Megapixel progressive CMOS
Max. Resolution 2688 (H) ×1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Min. Illumination Auto/Manual 1/3 s–1/100000 s
Y/N Ratio > 56 dB
Min. Illumination 0.03 Lux @ F1.7
Illumination Distance 40 m (164.0 ft)
Illuminator On/Off Control Auto/Manual
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.8mm–12mm
Max. Openings F1.7
Field of View Horizontal: 98°–31°
Vertical: 55°–18°
Diagonal: 116°–36°
Iris Type Fixed openings
Close Focus Distance 0.8 m (2.6 ft)
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main Stream:
2688 × 1520 (1fps–20fps)
2560 × 1440 (1fps–25/30fps)
Sub Stream:
704 × 576 (1 fps–20/25 fps)
704 × 480 (1fps–20/30fps)
Streaming Capability 2 stream
Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240)
Bitrate Control CBR; VBR
Video Bitrate H.264: 32kbps–6144kbps
H.265: 12kbps–6144kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution.)
Mirror Yes
Privacy Masking 4 areas
Alarm
Alarm Event Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception; defocus detection;
Network
Network RJ-45 (10/100Base-T)
SDK and API Yes
Protocol HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestones; Genetec; P2P
User/Host 20
Storage Dahua Cloud; FTP; SFTP; Micro SD card (support max. 256GB); NAS
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client Android;iOS
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12V DC/POE (802.3af)
Power Consumption < 6.4W
Environment
Operating Conditions -30°C to +60°C (-22°F to +140°F)/less than≤95%
Storage Conditions -40°C to +60°C (-40°F to +140°F)
Protection IP67
Structure
Casing metal
Product Dimensions 88.9 mm × Φ122 mm (3.5" × Φ4.8")
Net Weight 0.46 kg (1.0 lb)
Gross Weight 0.64 kg (1.4 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
