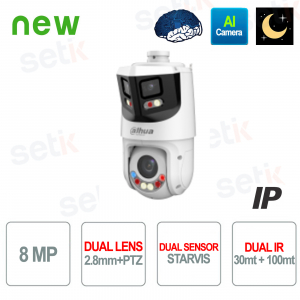

SDT4E425-8P-GB-APV2 | TELECAMERA PANORAMICA PTZ DA ESTERNO POE RISOLUZIONE DOPPIA 8MP + 4MP - 25x ZOOM OTTICO

La telecamera PTZ Dahua SDT4E425-8P-GB-APV2 con intelligenza artificiale garantisce sicurezza avanzata con immagini ultra nitide sia panoramiche che di dettaglio, grazie alla tecnologia Starlight, doppia illuminazione intelligente e auto-tracking evoluto. Ideale per videosorveglianza di aree ampie con protezione perimetrale e allarmi attivi integrati, offre massima efficienza con risparmio nei costi di installazione
Specifiche principali:
- Doppio sensore 8MP + 4MP con zoom ottico 25x
- Tecnologia Starlight ultra low-light fino a 0.005 lux
- Auto-tracking 3.0 con smart tracking AI
- Doppia illuminazione IR e luce bianca intelligente
- Protezione IP66 antivento, antipioggia e antifulmini
Ulteriori dettagli

Scheda tecnica
| Model | SDT4E425-8P-GB-APV2 |
| Camera | |
| Image Sensor | Overview channel: 1/2.7" CMOS; Detail channel: 1/2.8" CMOS |
| Pixel | Overview channel: 8 MP; Detail channel: 4 MP |
| Max. Resolution | Overview channel: 4096 (H) × 1860 (V); Detail channel: 2560 (H) × 1440 (V) |
| ROM | Overview channel: 4 GB; Detail channel: 4 GB |
| RAM | Overview channel: 2 GB; Detail channel: 1 GB |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Overview channel: 0.005 lux@F1.4 (Color, 30 IRE); 0.0005 lux@F1.4 (B/W, 30 IRE); 0 lux (illuminator on) Detail channel: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Illumination Distance | Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light) Detail channel: 100 m (328.08 ft) (IR); 50 m (131.23 ft) (white light) |
| Illuminator On/Off Control | Overview channel: Manual; Auto; Off Detail channel: Zoom Prio; Manual; Auto; Off |
| Illuminator Number | Overview channel: 2 (IR light); 2 (White light); Detail channel: 2 (IR light); 2 (Warm light) |
| Lens | |
| Focal Length | Overview channel: 2.8 mm; Detail channel: 5 mm–125 mm |
| Max. Aperture | Overview channel: F1.4; Detail channel: F1.6-F3.6 |
| Field of View | Overview channel: H: 180°; V: 86°; Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
|
Optical Zoom |
Overview channel: NA; Detail channel: 25× |
|
Focus Control |
Auto; manual; semi-auto |
|
Close Focus Distance |
Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33"–1.64") |
|
Iris Control |
Overview channel: NA; Detail channel: Auto; manual; iris prio |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–180°/s; Tilt: 0.1°/s–90°/s |
| Preset Speed | Pan: 0.1°/s–180°/s; Tilt: 0.1°/s–90°/s |
| Preset | 300 |
|
Tour |
8 (up to 32 presets per tour) |
|
Pattern |
5 |
|
Scan |
5 |
| Power-off Memory | Yes |
|
Idle Motion |
Preset;Pattern;Tour;Scan |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking |
| SMD | SMD 4.0 |
| Active Deterrence | |
| Light Warning | Red-Blue light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarm and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10. |
| Video | |
| Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Streaming Capability | 3 Streams |
| Resolution |
Overview channel: 8M (4096 × 1860); 2M (2048 × 928); 1080p (1920 × 1080); 720p (1280 × 720); 1024 × 448; D1 (704 × 576/704 × 480);VGA (640 × 480);CIF (352 × 288/352 × 240); Detail: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate |
Overview channel: |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | Overview channel: H264: 128 kbps–16,384 kbps H265: 51 kbps–13,312 kbps; Detail channel: H264: 96 kbps–16,384 kbps H265: 38 kbps–10,240 kbps; |
| Day/Night | Overview channel: Auto; Color; B/W; Electronic Detail channel: Auto; Color; B/W; Electronic |
| BLC | Yes |
| WDR | Overview channel: DWDR; Detail channel: 120 dB |
| HLC | Yes |
| White Balance | Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Overview channel: Auto; manual; gain prio Detail channel: Auto; manual; gain prio |
| Noise Reduction | Overview channel: 2D NR; 3D NR Detail channel: Auto: 2D NR; 3D NR |
| Motion Detection | Yes |
| Region Of Interest (ROI) | Yes |
| Image Stabilization | Overview channel: NA Detail channel: Electronic Image Stabilization (EIS) |
| Defog | Overview channel: Electronic Detail channel: Electronic |
| Digital Zoom | Overview channel: NA; Detail channel: 16× |
| Image Rotation | Overview channel: NA Detail channel: 180 |
| S/N Ratio |
Overview channel: ≥55 dB |
| Audio | |
| Audio Compression | PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729 |
| Network | |
| Network Port | RJ-45 (10XBase-T/100Base-T) |
| Network Protocol |
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P |
| Streaming Method | Unicast / Multicast |
| User/Host | 20 users (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 52 and later versions; Safari 10 and later versions |
| Management Software | DMSS;DSS Pro |
| Mobile Client | iOS; Android |
| Management Software | DMSS; DSS Pro |
| Mobile Client | Android, IOS |
| Certification | |
| Certifications | CE: EN 50130-4 EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 62368-1 |
| Port | |
| Audio Input |
1 channel (LINE IN, bare wire) |
| Audio Output |
1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) |
| Alarm Input |
2 (on-off value input: 0–5 VDC) |
| Alarm Output |
1 channel |
| Alarm Linkage |
Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light |
| Alarm Event |
Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm Event |
Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply |
12 VDC, 3 A ± 10%;PoE (802.3at) |
| Power Consumption |
Basic: 14 W; |
| Power Adapter |
Optional |
|
Environment |
|
| Operating Conditions |
-40°C ~ 65°C (-40°F ~ +149°F) |
| Operating Humidity |
≤95% |
| Ingress Protection |
IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection |
|
Structure |
|

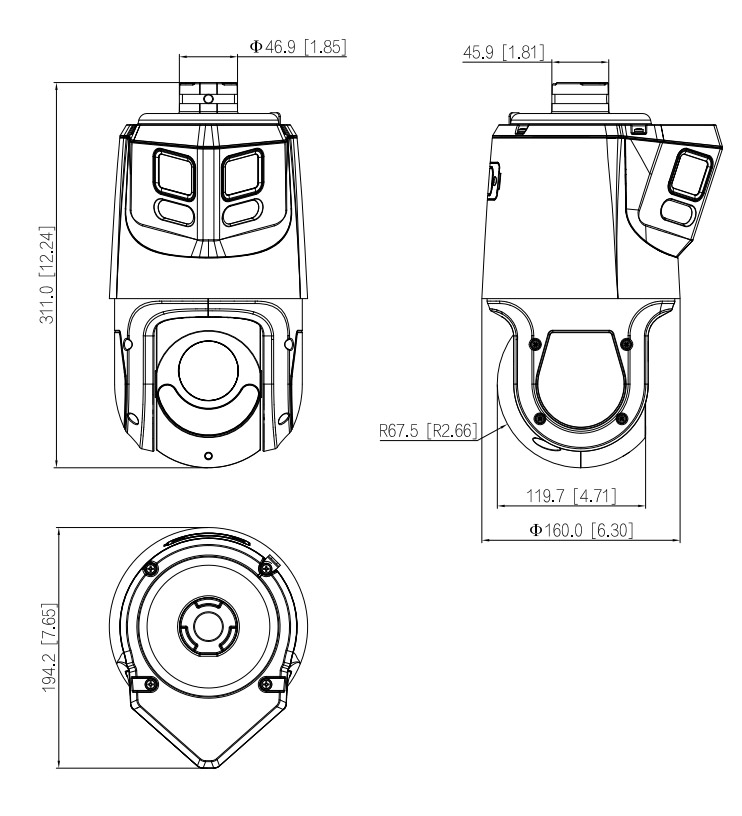

| Product Dimensions |
194.2 mm × 160 mm × 311 mm (7.65" × 6.30" × 12.24") (L × W × H) |
| Net Weight |
3.1 kg (6.83 lb) |
| Gross Weight |
4.6 kg (10.14 lb) |
