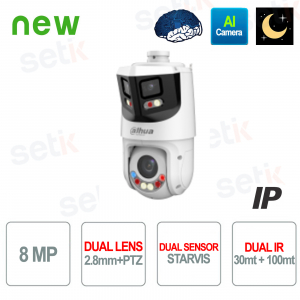

SDT4E425-8P-GB-APV2 | 8MP + 4MP DUAL RESOLUTION POE OUTDOOR PTZ PANORAMIC CAMERA - 25x OPTICAL ZOOM

The Dahua SDT4E425-8P-GB-APV2 AI-powered PTZ camera provides advanced security with ultra-clear panoramic and detailed images, thanks to Starlight technology, intelligent dual illumination, and advanced auto-tracking. Ideal for video surveillance of large areas with perimeter protection and integrated active alarms, it offers maximum efficiency and savings on installation costs.
Main specifications:
- Dual 8MP + 4MP sensor with 25x optical zoom
- Starlight ultra low-light technology up to 0.005 lux
- Auto-tracking 3.0 with AI smart tracking
- Dual IR illumination and intelligent white light
- IP66 windproof, rainproof and lightningproof protection
Further details

Technical data sheet
Model | SDT4E425-8P-GB-APV2 |
Room | |
Image Sensor | Overview channel: 1/2.7" CMOS; Detail channel: 1/2.8" CMOS |
Pixel | Overview channel: 8MP; Detail channel: 4 MP |
Max. Resolution | Overview channel: 4096 (H) × 1860 (V); Detail channel: 2560 (H) × 1440 (V) |
ROM | Overview channel: 4GB; Detail channel: 4 GB |
RAM | Overview channel: 2GB; Detail channel: 1 GB |
Electronic Shutter Speed | 1 s–1/30,000 s |
Scanning System | Progressive |
Min. Illumination | Channel Overview: 0.005 lux@F1.4 (Color, 30 IRE); 0.0005 lux@F1.4 (B/W, 30 IRE); 0 lux (illuminator on) Detail channel: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
Illumination Distance | Channel Overview: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light) Detail channel: 100 m (328.08 ft) (IR); 50 m (131.23 ft) (white light) |
Illuminator On/Off Control | Channel Overview: Manual; Auto; Off Detail channel: Zoom Prio; Manual; Auto; Off |
Illuminator Number | Overview channel: 2 (IR light); 2 (White light); Detail channel: 2 (IR light); 2 (Warm light) |
Lens | |
Focal Length | Overview channel: 2.8mm; Detail channel: 5mm–125mm |
Max. Openings | Overview channel: F1.4; Detail channel: F1.6-F3.6 |
Field of View | Overview channel: H: 180°; V: 86°; Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
Optical Zoom |
Overview channel: NA; Detail channel: 25× |
Focus Control |
Auto; manual; semi-auto |
Close Focus Distance |
Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33"–1.64") |
Iris Control |
Overview channel: NA; Detail channel: Auto; manual; iris first |
PTZ | |
Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° |
Manual Speed Control | Pan: 0.1°/s–180°/s; Tilt: 0.1°/s–90°/s |
Preset Speed | Pan: 0.1°/s–180°/s; Tilt: 0.1°/s–90°/s |
Presets | 300 |
Tour |
8 (up to 32 presets per tour) |
Pattern |
5 |
Scan |
5 |
Power-off Memory | Yes |
Idle Motion |
Preset; Pattern; Tour; Scan |
Intelligence | |
IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking |
SMD | SMD 4.0 |
Active Deterrence | |
Light Warning | Red-Blue light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
Sound Warning | Offers 11 sound alarms and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10. |
Video | |
Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
Streaming Capability | 3 Streams |
Resolution |
Overview channel: 8M (4096 × 1860); 2M (2048 × 928); 1080p (1920 × 1080); 720p (1280 × 720); 1024×448; D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240); Detail: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Video Frame Rate |
Channel Overview: |
Bit Rate Control | CBR/VBR |
Video Bit Rate | Channel Overview: H264: 128 kbps–16,384 kbps H265: 51 kbps–13,312 kbps; Detail channel: H264: 96 kbps–16,384 kbps H265: 38 kbps–10,240 kbps; |
Day/Night | Overview channel: Auto; Color; B/W; Electronic Detail channel: Auto; Color; B/W; Electronic |
BLC | Yes |
WDR | Overview channel: DWDR; Detail channel: 120 dB |
HLC | Yes |
White Balance | Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
Gain Control | Overview channel: Auto; manual; gain first Detail channel: Auto; manual; gain first |
Noise Reduction | Overview channel: 2D NR; 3D NO Detail channel: Auto: 2D NR; 3D NO |
Motion Detection | Yes |
Region of Interest (ROI) | Yes |
Image Stabilization | Channel Overview: NA Detail channel: Electronic Image Stabilization (EIS) |
Defog | Overview channel: Electronic Detail channel: Electronic |
Digital Zoom | Channel Overview: NA; Detail channel: 16× |
Image Rotation | Channel Overview: NA Detail channel: 180 |
S/N Ratio |
Channel overview: ≥55 dB |
Audio | |
Audio Compression | PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729 |
Network | |
Network Port | RJ-45 (10XBase-T/100Base-T) |
Network Protocol |
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS |
Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P |
Streaming Method | Unicast / Multicast |
User/Host | 20 users (total bandwidth: 64M) |
Storage | Micro SD card (512GB); FTP/SFTP; NAS |
Browser | web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 52 and later versions; Safari 10 and later versions |
Management Software | DMSS; DSS Pro |
Mobile Client | iOS; Android |
Management Software | DMSS; DSS Pro |
Mobile Client | Android, iOS |
Certification | |
Certifications | CE: EN 50130-4 EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 62368-1 |
Port | |
Audio Input |
1 channel (LINE IN, bare wire) |
Audio Output |
1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive)) |
Alarm Input |
2 (on-off value input: 0–5 VDC) |
Alarm Output |
1 channel |
Alarm Linkage |
Capture; recording; send email; presets; tours; pattern; alarm digital output; audio; warning light |
Alarm Event |
Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
Alarm Event |
Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
Power | |
Power Supply |
12 VDC, 3 A ± 10%; PoE (802.3at) |
Power Consumption |
Basic: 14 W; |
Power Adapter |
Optional |
Environment |
|
Operating Conditions |
-40°C ~ 65°C (-40°F ~ +149°F) |
Operating Humidity |
≤95% |
Ingress Protection |
IP66; TVS 6000V lightning proof; surge protection; voltage transient protection |
Structure |
|
Product Dimensions |
194.2 mm × 160 mm × 311 mm (7.65" × 6.30" × 12.24") (L × W × H) |
Net Weight |
3.1 kg (6.83 lb) |
Gross Weight |
4.6 kg (10.14 lb) |
