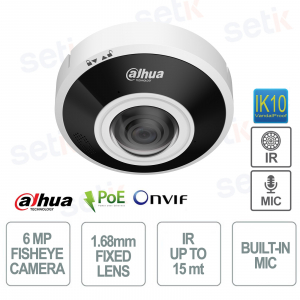

IPC-EBW5641-AS | TELECAMERA IP FISHEYE WIZMIND 6MP - OTTICA FISSA 1.68mm

La Dahua IPC-EBW5641-AS è una telecamera di rete Fisheye IR 6MP della serie WizMind, progettata per una videosorveglianza a 360° senza punti ciechi in ambienti come aeroporti, centri commerciali e banche. Dotata di sensore CMOS da 1/2.5" ad alta definizione, offre funzioni avanzate di dewarping frontale e posteriore, visione notturna IR fino a 15 m e tecnologia AI per protezione perimetrale, conteggio persone, mappa di calore e gestione code. Con protezioni IP67 e IK10, audio bidirezionale e supporto MicroSD fino a 1TB, garantisce prestazioni elevate e affidabilità in qualsiasi contesto.
Specifiche principali:
- Sensore CMOS 6MP con risoluzione fino a 2560×2560 @30fps
- Sorveglianza a 360° con dewarping e modalità VR interattive
- Visione IR fino a 15 m, WDR 120dB e riduzione rumore 3D NR
- Funzioni AI: protezione perimetrale, conteggio persone, heat map
- Audio bidirezionale, slot MicroSD fino a 1TB
- Certificazioni IP67 e IK10 con alimentazione PoE o 12VDC
Ulteriori dettagli
✅ Fisheye:

Scheda tecnica
Model | IPC-EBW5641-AS |
Camera | |
Image Sensor | 1/2.5" CMOS |
Effective Pixel | 2560 (H) × 2560 (V) |
ROM/RAM | 4 GB/1 GB |
Scanning System | Progressive |
Electronic Shutter speed | Auto/Manual, 1/3~1/100000s |
Min. Illumination |
0.006 lux@F2.0 (Color, 30 IRE) |
S/N Ratio |
> 56 dB |
Illumination Distance | 1.68 mm: Up to 15 m (49.21 ft) (IR) |
Illuminator On/Off Control | Auto/ Manual |
Illuminator Number | 3 (IR LED ) |
Lens | |
Lens Type | Fixed-focal |
Mount Type | M12 |
Focal Length | 1.68mm |
Max. Aperture | F2.0 |
Field Of View | H: 185°; V: 185°; D: 185° |
Iris Type | Fixed |
Close Focus Distance | 0.3 m (0.98 ft) |
Intelligence | |
EPTZ | Yes |
IVS (Perimeter Protection) | intrusion, Tripwire; (The two functions support the classification and accurate detection of vehicle and human) |
People Counting | Tripwire people counting, generating and exporting report (day/month/year); queue management and people counting in area, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management. |
Heat Map | Yes |
Smart Serch | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Video | |
Compression | H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream) |
Smart Codec | Smart H.265+/ Smart H.264+ *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
Video Frame Rate |
Max Resolution in O Mode by Default |
Streaming Capability | 3 Streams |
Resolution |
6M (2560 × 2560); 4M (2048 × 2048); 1.6M (1280 × 1280); 2M (1440 × 1440); 1M (1024 × 1024); (720 × 720); SVCD (480 × 480); 2.5M (2560 × 960); 1.5M (2048 × 768); 1.3M (1920 × 720); (1280 × 480); (640 × 240); (1280 × 480); (640 × 240); VGA (640 × 480); QVGA (320 × 240); 3M (2048 × 1536); 2.7M (1920 × 1440); XVGA (1024 × 768); UVGA (1600 × 1200) |
Bit Rate Control | VBR;CBR;ABR |
Video Bit Rate |
H.264: 3 kbps–16384 kbps; |
Day/Night | Auto(ICR) / Color / B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
Scene Self-adaption (SSA) | Yes |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Auto; manual |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Image Stabilization | Electronic Image Stabilization (EIS) |
Region Of interest | Yes (4 areas) |
Defog | Yes |
Image Rotation | 0°/180° |
Mirror | Yes |
Privacy Masking | 4 mosaics + 4 color blocks |
Fisheye | |
Installation | Ceiling mount; wall mount; ground mount |
Decoding Mode | Front-dewarp;Back-dewarp |
Audio Compression | Front-dewarp (hardware decoding): 1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R 2P/2R: Supports split screen for 2 windows. 4R: Supports split screen for 4 windows *O: Fisheye image view; P: Panoramic image view; R: Region image view. Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid) |
Audio | |
Built-in MIC | Yes, built-in dual Mic |
Built-in Speaker | Yes, built-in speaker |
Display mode | PCM; G.711a; G.711Mu; G.726 |
Alarm | |
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; tripwire; intrusion; audio detection; intensity change; voltage detection; external alarm; people counting in area; stay detection; people counting; abnormal number of people detection; security exception |
Network | |
Ethernet | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Protocol |
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP; Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
Interoperability | ONVIF®(Profile S/Profile G);CGI;P2P;Milestone;Genetec |
User/Host |
20 |
Edge Storage | FTP; SFTP; Micro SD Card (support max. 512 G); NAS |
Browser | IE: IE11; Chrome; Firefox |
Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
Cyber Security |
Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
Certification | |
Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Port | |
RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
Audio Input | 1 channel (RCA port) |
Audio Output | 1 channel (RCA port) |
Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
Power | |
Power Supply | 12 VDC, 1 A; PoE (802.3af) |
Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
Power Consumption |
Basic: 1.4 W (12 VDC), 2.6 W (PoE); |
Environment | |
Operating Conditions | –30 °C to +60 °C (–22 °F to +140 °F) |
Operating Humidity | ≤95% (RH), non-condensing |
Storage Conditions | –30 °C to +60 °C (–22 °F to +140 °F) |
Storage Humidity | ≤95% (RH), non-condensing |
Ingress Protection | IP67; IK10 |
Anti-corrosion Level | Basic Protection |
Structure | |
Casing | Metal + plastic |

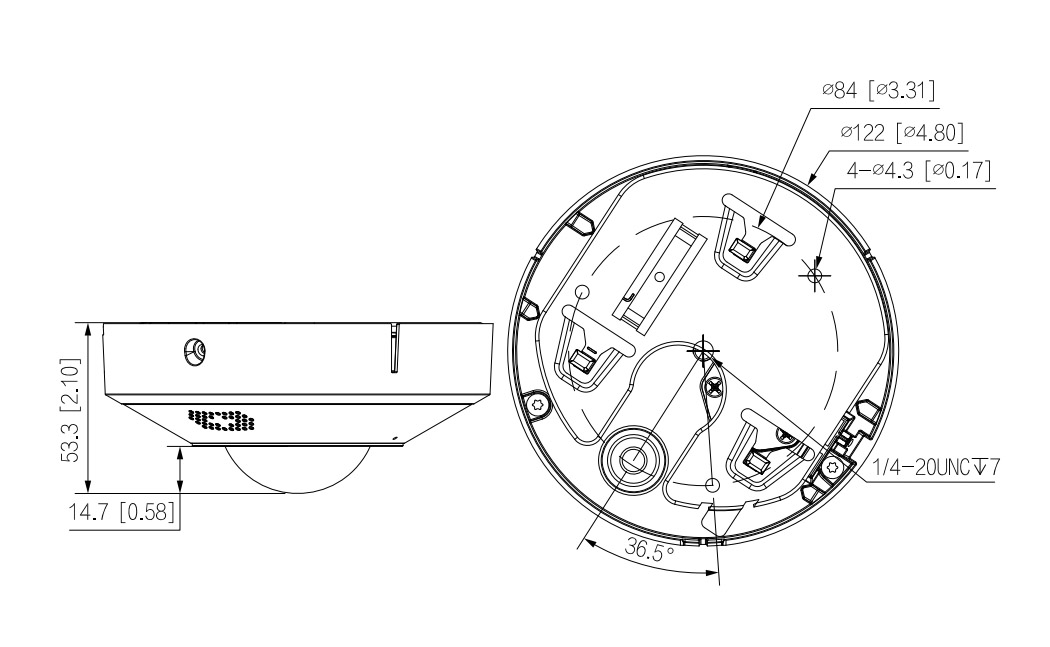

Dimensions | Φ122 mm × 53.3 mm (Φ4.80" × 2.10") |
Net Weight | 0.46 kg (1.01 lb) |
Gross Weight | 0.75 kg (1.65 lb) |
