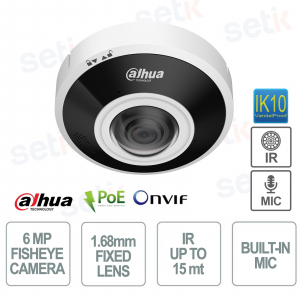

IPC-EBW5641-AS - is a 6MP Fisheye IR network camera from the WizMind series, designed to ensure 360° surveillance without blind spots, ideal for airports, shopping malls and banks. Equipped with a 1/2.5” CMOS sensor and 1.68 mm fixed lens with F2.0 aperture and 185° field of view on each axis, it ensures high-definition images even in low light conditions. It supports front and rear dewarping, IR vision up to 15 m and advanced AI functions such as perimeter protection, people counting, heat map and queue management. Thanks to a built-in microphone and speaker, it enables two-way audio communication. Resistant with IP67 and IK10 certifications, it offers PoE power and a MicroSD slot up to 1TB, ensuring flexible installation and reliable performance. Dahua

Technical Data Sheet

Reference: IPC-EBW5641-AS

Brand: Dahua

EAN: 6939554929922

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-EBW5641-AS | WIZMIND 6MP FISHEYE IP CAMERA - 1.68mm FIXED LENS


Dahua

The Dahua IPC-EBW5641-AS is a 6MP fisheye IR network camera from the WizMind series, designed for 360° video surveillance without blind spots in environments such as airports, shopping malls, and banks. Equipped with a 1/2.5" high-definition CMOS sensor, it offers advanced front and rear dewarping functions, IR night vision up to 15 m, and AI technology for perimeter protection, people counting, heatmap, and queue management. With IP67 and IK10 protection, two-way audio, and MicroSD support up to 1TB, it guarantees high performance and reliability in any context.

Main specifications:

- 6MP CMOS sensor with resolution up to 2560×2560 @30fps

- 360° surveillance with dewarping and interactive VR modes

- IR vision up to 15m, WDR 120dB and 3D NR noise reduction

- AI functions: perimeter protection, people counting, heat map

- Two-way audio, MicroSD slot up to 1TB

- IP67 and IK10 certifications with PoE or 12VDC power supply

Further details

Resolution:
1/2.5” CMOS sensor with maximum definition of 2560×2560 @30fps, for sharp and detailed images even in low light conditions.
Optics :
1.68mm fixed lens with 185° field of view on each axis, capable of covering large areas without the need for multiple cameras.
Intelligence :
Integrates deep learning algorithms for advanced features such as perimeter protection, people counting, heat maps, and queue management.

Fisheye:
Front and rear dewarping technology, with interactive VR modes and split screen support for 2 or 4 windows.
Built-in microphone:
Built-in dual microphone and speaker for clear, interference-free two-way audio.
Network camera:
Supports TCP/IP, PoE, MicroSD slot up to 1TB and ONVIF protocols for compatibility with third-party systems.
WizMind:
Part of the premium Dahua range, with AI optimization for professional security and efficient video data management.
IPC-EBW5641-AS dimensions

Technical data sheet

Model IPC-EBW5641-AS
Room
Image Sensor 1/2.5" CMOS
Effective Pixel 2560 (H) × 2560 (V)
ROM/RAM 4 GB/ 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Min. Illumination

0.006 lux@F2.0 (Color, 30 IRE)
0.0006 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance 1.68 mm: Up to 15 m (49.21 ft) (IR)
Illuminator On/Off Control Auto/Manual
Illuminator Number 3 (IR LED)
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 1.68mm
Max. Openings F2.0
Field of View H: 185°; V: 185°; D: 185°
Iris Type Fixed
Close Focus Distance 0.3 m (0.98 ft)
Intelligence
EPTZ Yes
IVS (Perimeter Protection) intrusion, Tripwire; (The two functions support the classification and accurate detection of vehicle and human)
People Counting Tripwire people counting, generating and exporting reports (day/month/year); queue management and people counting in area, generating and exporting reports (day/month);
4 rules can be set for tripwire, people counting in area and queue management.
Heat Map Yes
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate

Max Resolution in O Mode by Default
Main stream: 2560 × 2560@(1–25/30 fps)
sub stream: 1440 × 1440@(1–25/30 fps)
third stream: 1440 × 1440@(1–25/30 fps)
Resolution of 2 Split Windows in 2P Mode:
Substream:
Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps);
third stream:
Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps);
Resolution of 2 Split Windows in 2R Mode:
Substream:
Panoramic View and Split Window: 2560 × 960@(1–25/30 fps); 1280 × 480@(1–25/30 fps); 640 × 240@(1–25/30 fps);
third stream:
Panoramic View and Split Window: 2560 × 960@(1–25/30 fps); 1280 × 480@(1–25/30 fps); 640 × 240@(1–25/30 fps);
Resolution of 4 Split Windows in 4R Mode:
substream:
Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps);
third stream:
Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps);

Streaming Capability 3 Streams
Resolution

6M (2560 × 2560); 4M (2048 × 2048); 1.6M (1280×1280); 2M (1440 × 1440); 1M (1024 × 1024); (720 × 720); SVCD (480 × 480); 2.5M (2560×960); 1.5M (2048×768); 1.3M (1920×720); (1280 × 480); (640 × 240); (1280 × 480); (640 × 240); VGA (640 × 480); QVGA (320 × 240); 3M (2048 × 1536); 2.7M (1920×1440); XVGA (1024×768); UVGA (1600×1200)

Bit Rate Control VBR;CBR;ABR
Video Bit Rate

H.264: 3 kbps–16384 kbps;
H.265: 3 kbps–16384 kbps

Day/Night Auto(ICR) / Color / B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaption (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Image Stabilization Electronic Image Stabilization (EIS)
Region of interest Yes (4 areas)
Defog Yes
Image Rotation 0°/180°
Mirror Yes
Privacy Masking 4 mosaics + 4 color blocks
Fisheye
Installation Ceiling mount; wall mount; ground mount
Decoding Mode Front-dewarp; Back-dewarp
Audio Compression Front-dewarp (hardware decoding): 1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R
2P/2R: Supports split screen for 2 windows.
4R: Supports split screen for 4 windows
*O: Fisheye image view; P: Panoramic image view; A: Region image view.
Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid)
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Display mode PCM; G.711a; G.711Mu; G.726
Alarm
Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; tripwire; intrusion; audio detection; intensity change; voltage detection; external alarm; people counting in area; stay detection; people counting; abnormal number of people detection; security exception

Network
Ethernet RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP; Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability ONVIF®(Profile S/Profile G);CGI;P2P;Milestone;Genetec
User/Host

20

Edge Storage FTP; SFTP; Micro SD Card (support max. 512G); NAS
Browser IE: IE11;
Chrome;
Firefox
Management Software Smart PSS Lite; DSS; DMSS; DoLynk Care
Cyber Security

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
RS-485 1 (baud rate range: 1200 bps–115200 bps)
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12 VDC, 1 A; PoE (802.3af)
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption

Basic: 1.4 W (12 VDC), 2.6 W (PoE);
Max.: 8.1 W (12 VDC), 10.1 W (PoE) (ICR switch + IR intensity)

Environment
Operating Conditions –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Conditions –30 °C to +60 °C (–22 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Ingress Protection IP67; IK10
Anti-corrosion Level Basic Protection
Structure
Casing Metal + plastic
Dimensions Φ122mm × 53.3mm (Φ4.80" × 2.10")
Net Weight 0.46 kg (1.01 lb)
Gross Weight 0.75 kg (1.65 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
