VIGI Insight S245(4mm) TP-Link VIGI - è una telecamera dome di rete con ottica fissa da 4 mm assicura sorveglianza professionale con risoluzione 4MP (2688x1520), tecnologia Full-Color per immagini chiare anche di notte e funzioni avanzate di analisi persone e veicoli che riducono i falsi allarmi. Grazie al rilevamento smart (intrusioni, attraversamenti, oggetti abbandonati o rimossi, suoni anomali), unito al Two-Way Audio per comunicazioni in tempo reale, garantisce un controllo completo. Con struttura robusta IP67 e IK10 antivandalo, è una Network Camera ideale per aziende, negozi e ambienti pubblici, offrendo sicurezza affidabile e gestione intelligente.
3 Anni di Garanzia
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

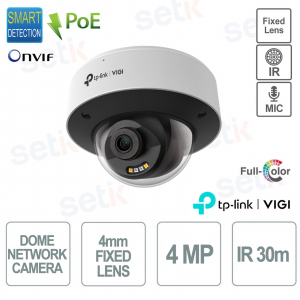

Insight S245(4mm) | TELECAMERA 4MP TP LINK VIGI DOME CON VISIONE NOTTURNA | FULL-COLOR | AUDIO

La telecamera dome di rete TP-Link VIGI InSight S245(4mm) offre sorveglianza avanzata con risoluzione 4MP (2688x1520), tecnologia Full-Color per immagini notturne chiare e dettagliate e funzioni intelligenti di analisi persone e veicoli per notifiche sempre precise. Grazie ai rilevamenti smart (intrusione, attraversamento linea, oggetti abbandonati o rimossi, cambi scena, suoni anomali) e al Two-Way Audio che consente comunicazioni in tempo reale, garantisce massima protezione. Robusta e affidabile con certificazioni IP67 e IK10 antivandalo, è una network camera ideale per aziende e spazi pubblici.
Specifiche principali:
- Risoluzione 4MP (2688x1520)
- Ottica fissa 4 mm, FOV orizzontale 88°
- Analisi persone e veicoli basata su AI
- Rilevamenti smart multipli
- Tecnologia Full-Color notturna
- Audio bidirezionale (Two-Way Audio)
- Protezione IP67 e IK10 antivandalo
Ulteriori dettagli
✅ Network Camera:
Scheda tecnica
Image Sensor | 1/2.7” Progressive Scan CMOS |
---|---|
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Min. Illumination | 0.005 Lux; 0 Lux with IR/white light |
Day & Night | IR Cut Filter |
Day/Night Switch | Unified/ Scheduled/ Auto |
LENS | |
Type | Fixed Focal Lens |
Focal Length | 4 mm |
Aperture | F1.6 |
FOV | Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal |
Lens Mount | M12 |
ANGLE ASDJUSTMENT(MANUAL) | |
Range | Pan: 0° to 346°, Tilt: 0° to 75°, Rotation: 0° to 355° FOV: 105.4° |
ILLUMINATOR | |
IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
White LED | Quantity: 2 Range: 30m |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
Max. Resolution | 2688 x 1520 |
Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Bit Rate Control | CBR, VBR |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
H.264 Type | Main Profile/High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
IMAGE | |
Image Settings |
|
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Setting | Yes |
AUDIO | |
Audio Communication | Two-Way Audio |
Audio Input | Yes |
Audio Output | Yes |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK | |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS,FTP/SFTP,RTP,IPv4,IPv6,ARP |
Onvif | Yes |
API | Open Network Video Interface (Profile S/T/G) |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, Web UI, VIGI VMS, Utility |
Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Cloud | Yes |
ALARM AND EVENT MANAGEMENT | |
Smart Event |
|
Basic Event |
|
Alarm Linkage |
|
Linkage Method | N/A |
Face Comparison | Message Push |
DEEPL LEARNING FUNCTION | |
People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
INTERFACE | |
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Alarm | N/A |
Reset Button | Yes |
Power | DC Power Port |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
Built-in Speaker | Yes |
Audio | N/A |
GENERAL | |
Operating Temperature | -30–60 °C |
Storage Temperature | -40–60 °C |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Material | Metal |
Net Weight | 0.62 Kg |
Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.52 W |
Protection | IP67, IK10 |
Product Dimensions (L x W x H) | 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm) |
Certifications | CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC |
