VIGI Insight S245(4mm) TP-Link VIGI - is a network dome camera with 4mm fixed lens that ensures professional surveillance with 4MP (2688x1520) resolution, Full-Color technology for clear images even at night and advanced people and vehicle analysis functions that reduce false alarms. Thanks to smart detection (intrusions, crossings, abandoned or removed objects, abnormal sounds), combined with Two-Way Audio for real-time communication, it guarantees complete control. With a robust IP67 and IK10 vandal-proof structure, it is an ideal Network Camera for companies, shops and public environments, offering reliable security and intelligent management.
3 Year Warranty
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

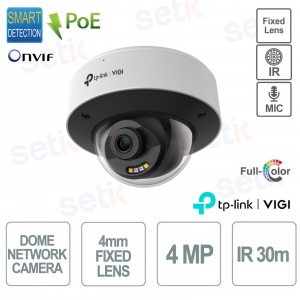

Insight S245(4mm) | 4MP TP-LINK VIGI DOME CAMERA WITH NIGHT VISION | FULL-COLOR | AUDIO

The TP-Link VIGI InSight S245(4mm) network dome camera offers advanced surveillance with 4MP (2688x1520) resolution, full-color technology for clear and detailed nighttime images, and intelligent people and vehicle analysis functions for always-precise notifications. Thanks to smart detections (intrusion, line crossing, abandoned or removed objects, scene changes, abnormal sounds) and Two-Way Audio for real-time communication, it guarantees maximum protection. Rugged and reliable with IP67 and IK10 vandal-resistant certifications, it is an ideal network camera for businesses and public spaces.
Main specifications:
- 4MP resolution (2688x1520)
- 4mm fixed optics, 88° horizontal FOV
- AI-based people and vehicle analysis
- Multiple smart detections
- Full-Color Night Technology
- Two-Way Audio
- IP67 and IK10 vandal-proof protection
Further details
✅ Network Camera:
Technical data sheet
Image Sensor | 1/2.7” Progressive Scan CMOS |
---|---|
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Min. Illumination | 0.005 Lux; 0 Lux with IR/white light |
Day & Night | IR Cut Filter |
Day/Night Switch | Unified/ Scheduled/ Auto |
LENS | |
Type | Fixed Focal Lens |
Focal Length | 4 mm |
Openings | F1.6 |
FOV | Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal |
Lens Mount | M12 |
ANGLE ADDJUSTMENT (MANUAL) | |
Range | Pan: 0° to 346°, Tilt: 0° to 75°, Rotation: 0° to 355° FOV: 105.4° |
ILLUMINATOR | |
IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
White LED | Quantity: 2 Range: 30m |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
Max. Resolution | 2688 x 1520 |
Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Bit Rate Control | CBR, VBR |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
H.264 Type | Main Profile/High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
IMAGE | |
Image Settings |
|
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Settings | Yes |
AUDIO | |
Audio Communication | Two-Way Audio |
Audio Input | Yes |
Audio Output | Yes |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps (G.711 alaw) |
NETWORK | |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS,FTP/SFTP,RTP,IPv4,IPv6,ARP |
Onvif | Yes |
API | Open Network Video Interface (Profile S/T/G) |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, Web UI, VIGI VMS, Utilities |
Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Cloud | Yes |
Alarm and Event Management | |
Smart Event |
|
Basic Event |
|
Alarm Linkage |
|
Linkage Method | N/A |
Face Comparison | Push Message |
DEEPLEARNING FUNCTION | |
People & Vehicle Analytics | Search and filter to people or vehicles of interest based on many different attributes, making post-event search faster and easier. |
INTERFACE | |
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Alarm | N/A |
Reset Button | Yes |
Power | DC Power Port |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512GB |
Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
Built-in Speaker | Yes |
Audio | N/A |
GENERAL | |
Operating Temperature | -30–60 °C |
Storage Temperature | -40–60 °C |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Material | Metal |
Net Weight | 0.62 kg |
Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.52 W |
Protection | IP67, IK10 |
Product Dimensions (L x W x H) | 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm) |
Certifications | CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC |
