Telecamera Dome Hikvision 4MP 2.8mm AcuSense AI con DarkFighter e HEOP

Telecamera Dome Hikvision 4MP 2.8mm AcuSense AI con DarkFighter e HEOP
IN PROMOZIONE -35% Nuovo

DS-2CD3146G2-IS(2.8mm) - Telecamera dome con ottica 2.8mm offre una risoluzione 4MP e un ampio campo visivo di 101°, garantendo immagini nitide grazie al WDR 120 dB e alla tecnologia DarkFighter per prestazioni eccellenti anche in condizioni di scarsa luminosità. La funzione AcuSense basata su deep learning consente di distinguere persone e veicoli, riducendo i falsi allarmi e migliorando l’efficienza della sorveglianza. Grazie all’illuminazione IR fino a 40 metri, alla protezione IP67 e IK10, è ideale per applicazioni interne ed esterne ad alta sicurezza. Inoltre, integra la piattaforma HEOP, che permette l’importazione di applicazioni di terze parti per espandere le funzionalità e personalizzare la gestione della videosorveglianza in modo professionale e flessibile.. Hikvision

Scheda Tecnica

Riferimento: DS-2CD3146G2-IS(2.8mm)

Marca: Hikvision

EAN: 6931847195083

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Targa HikvisionDall’anno della sua nascita il prestigio cresce sempre più tanto da affermarsi nel 2015 come prima realtà globale nella sicurezza. Dal 2016 Hikvision espande il suo mercato diventando Total Solution Provider per l'intero mercato della sicurezza. Entra così nel mondo dell’antintrusione e successivamente si avvicina alle nuove tecnologie e all’intelligenza a servizio dell'uomo trattando sistemi IoT, Machine Vision, Robotica e Automotive. Da leader della security, Hikvision diventa con impegno, passione e competenza un'azienda Hi-Tech con una vision 4.0, che punta sempre in alto.

Setik è quindi onorata di essere distributore Hikvision. Proporremo, come sempre, prodotti di ultima generazione e l'adeguata assistenza tecnica e commerciale.

Classifica aggiornata dei Top Security Brand > Visualizza la classifica


[short_description] =>

Videosorveglianza Hikvision


Hikvision nasce nel 2001 con l’obiettivo di creare e sviluppare soluzioni complete di videosorveglianza professionale, diventando in breve tempo leader nel mondo della sicurezza.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Sicurezza e Videosorveglianza Hikvision [meta_keywords] => Sicurezza Hikvision, Hikvision, allarme hikvision [meta_description] => Hikvision nasce nel 2001 diventando in breve tempo leader nel mondo della videosorveglianza. Scopri subito i prodotti a catalogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 6 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
SCEGLI PROFESSIONISTA


FUORI TUTTO ×


  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

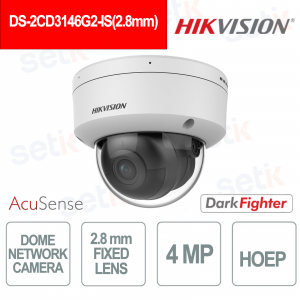

DS-2CD3146G2-IS(2.8mm) – TELECAMERA ACUSENSE 4MP OTTICA FISSA 2.8MM DOME NETWORK CAMERA - DARKFIGHTER - HOEP

Hikvision

La telecamera dome Hikvision DS-2CD3146G2-IS(2.8mm) con ottica 2.8mm offre immagini in alta definizione 4MP e un campo visivo ampio da 101°, ideale per il monitoraggio di spazi interni ed esterni. Grazie alla tecnologia DarkFighter assicura eccellenti prestazioni anche in condizioni di scarsa illuminazione, mentre il WDR 120 dB garantisce immagini nitide anche in presenza di controluce. La tecnologia AcuSense basata su deep learning consente di distinguere persone e veicoli, riducendo i falsi allarmi. Con protezione IP67 e IK10, illuminazione IR fino a 40 metri e la piattaforma HEOP per l’integrazione di applicazioni di terze parti, rappresenta una soluzione affidabile e professionale per la sicurezza senza registrazione audio.

Caratteristiche principali:

- Ottica fissa 2.8mm con FOV orizzontale 101°

- Risoluzione 4MP (2688×1520) con WDR 120 dB

- AcuSense AI con rilevamento persone/veicoli

- Illuminazione IR fino a 40 metri

- Protezione IP67 e IK10 antivandalo

Funzione HEOP per applicazioni personalizzate


Ulteriori dettagli

✅ Ottica:
Lente fissa grandangolare da 2.8mm con campo visivo orizzontale di 101°, ideale per monitorare spazi ampi come ingressi, corridoi o aree comuni, garantendo immagini dettagliate e complete.
✅ Risoluzione:
Sensore CMOS da 1/3” con risoluzione fino a 4MP (2688×1520) e tecnologia WDR 120 dB per immagini chiare e bilanciate anche in condizioni di forte controluce.
✅ Network camera:
Telecamera IP con supporto ai principali protocolli di rete (TCP/IP, HTTP, HTTPS, RTSP, ONVIF, ecc.), facilmente integrabile con software di gestione come Hik-Connect e Hik-Central, per un controllo centralizzato.
 Event:
Gestione eventi base e smart, tra cui rilevamento manomissioni, eccezioni, cambio scena, abbandono o rimozione oggetti, con possibilità di inviare notifiche, attivare registrazioni o allarmi.
 Motion Detection:
Funzione avanzata che rileva movimenti distinguendo persone e veicoli, riducendo i falsi allarmi causati da animali, foglie o condizioni meteo variabili.
 Deep Learning Function:
Include protezione perimetrale (line crossing, intrusion, ingresso/uscita area), face capture e people counting, sfruttando algoritmi di deep learning per una sorveglianza precisa.
✅ Funzione HEOP:
La piattaforma Embedded Open Platform consente l’integrazione di applicazioni di terze parti, ampliando le funzionalità e personalizzando la gestione della sicurezza.
✅ Tecnologia AcuSense:
Grazie all’AI, classifica in modo intelligente i target concentrandosi su persone e veicoli, aumentando l’efficienza della sorveglianza e riducendo falsi allarmi.
✅ Tecnologia DarkFighter:
Garantisce immagini nitide e luminose anche in condizioni di scarsa illuminazione (fino a 0.003 Lux a colori), rendendola ideale per contesti notturni o aree poco illuminate.
DS-2CD3146G2-IS dimensioni

Scheda tecnica

DS-2CD3146G2-IS(2.8mm)
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens type Fixed focal lens 2.8 mm
Focal Length & FOV 2.8 mm, horizontal FOV 101°, vertical FOV 54°, diagonal FOV 122°
Lens Mount M12
Iris Type Fixed
Aperture F1.4
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm
HEOP
Open Resources Memory: 60 MB,
Smart RAM: 400 MB,
eMMC: 2 GB
Computing Power 1.5 TOPS
Open Capability HEOP 2.0 OpendevSDK
Deep Learning Structure Caffe,PyTorch,TensorFlow,PaddlePaddle, ONNX
Programming Language C,C++
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Target Cropping

Yes

Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Fourth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

5 fixed regions for main stream and sub-stream

e-PTZ

Support Patrol and Auto Tracking settings

Audio
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live View

Up to 6 channels

API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host

Up to 32 users
3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Privacy Mask

Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)

120 dB

Image Enhancement BLC,HLC,3D DNR,Defog
SNR

≥ 52 dB

Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key Yes
Power Output 12 VDC, max. 100 mA
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Face Capture Yes
People Counting Yes
General
Power 12 VDC ± 25%, 0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9 W
Dimension

Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8"))

Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight

Approx. 500 g (1.1 lb.)

With Package Weight

Approx. 700 g (1.54 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Language

33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015

Safety

UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1

Environment

CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Tutti i nostri prodotti sono conformi alla normativa CE vigente (leggi qui). Per richiedere la copia del certificato compila questo modulo
