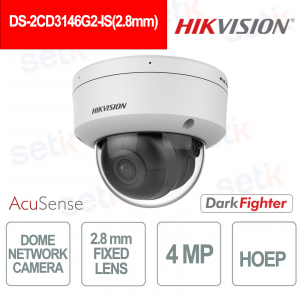

DS-2CD3146G2-IS(2.8mm) – ACUSENSE 4MP 2.8MM FIXED LENS DOME NETWORK CAMERA - DARKFIGHTER - HOEP

Hikvision

The Hikvision DS-2CD3146G2-IS(2.8mm) dome camera with a 2.8mm lens offers 4MP high-definition images and a wide 101° field of view, ideal for monitoring indoor and outdoor spaces. Thanks to DarkFighter technology, it ensures excellent performance even in low-light conditions, while 120 dB WDR guarantees clear images even in backlighting. Deep learning-based AcuSense technology can distinguish people and vehicles, reducing false alarms. With IP67 and IK10 protection, IR illumination up to 40 meters and the HEOP platform for third-party application integration, it represents a reliable and professional security solution without audio recording.

Main features:

- 2.8mm fixed lens with 101° horizontal FOV

- 4MP resolution (2688×1520) with WDR 120 dB

- AcuSense AI with people/vehicle detection

- IR illumination up to 40 meters

- IP67 and IK10 vandal-proof protection

- HEOP function for custom applications


Further details

Optics:
2.8mm wide-angle fixed lens with a 101° horizontal field of view, ideal for monitoring large spaces such as entrances, corridors or common areas, ensuring detailed and complete images.
Resolution:
1/3” CMOS sensor with up to 4MP (2688×1520) resolution and 120 dB WDR technology for clear and balanced images even in strong backlight conditions.
Network camera:
IP camera with support for main network protocols (TCP/IP, HTTP, HTTPS, RTSP, ONVIF, etc.), easily integrated with management software such as Hik-Connect and Hik-Central, for centralized control.
 Event :
Basic and smart event management, including tampering detection, exceptions, scene change, abandonment or object removal, with the ability to send notifications, activate recordings or alarms.
 Motion Detection:
Advanced function that detects motion by distinguishing people and vehicles, reducing false alarms caused by animals, leaves or variable weather conditions.
 Deep Learning Function :
It includes perimeter protection (line crossing, intrusion, area entry/exit), face capture and people counting, leveraging deep learning algorithms for precise surveillance.
HEOP function :
The Embedded Open Platform enables the integration of third-party applications, extending functionality and customizing security management.
AcuSense Technology :
Thanks to AI, it intelligently classifies targets by focusing on people and vehicles, increasing surveillance efficiency and reducing false alarms.
DarkFighter Technology :
It ensures clear and bright images even in low light conditions (up to 0.003 Lux in color), making it ideal for night-time situations or poorly lit areas.

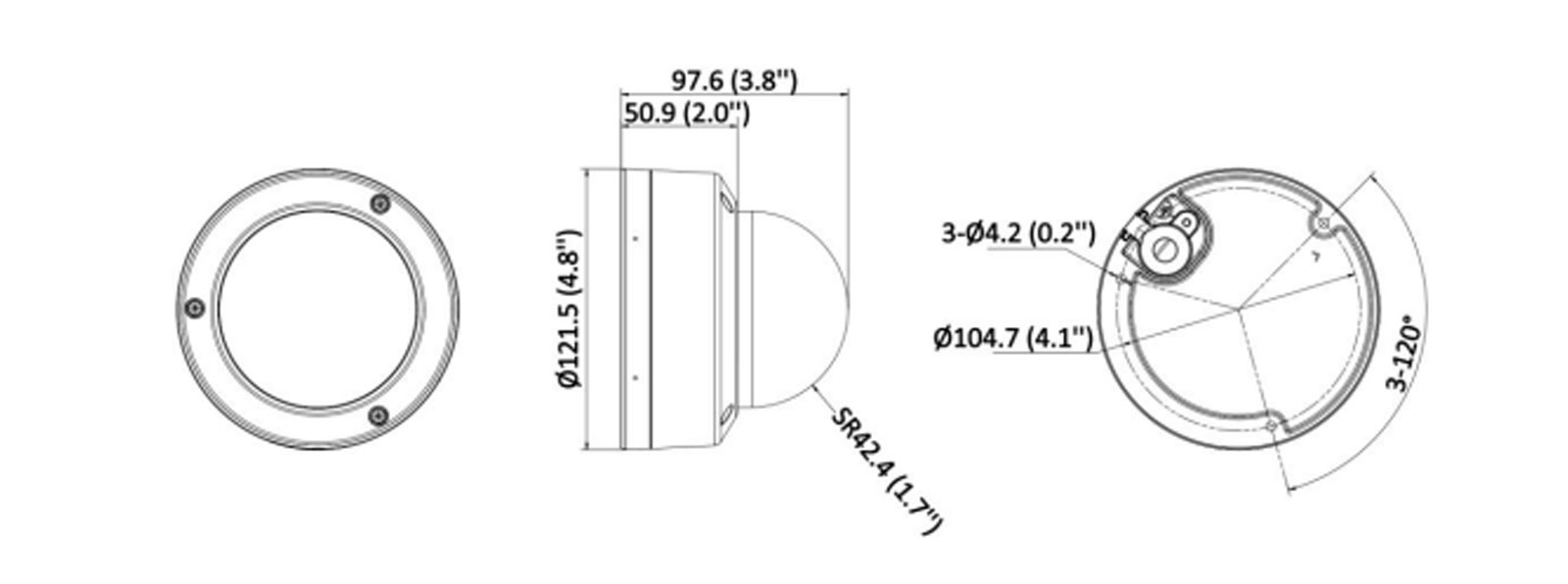

DS-2CD3146G2-IS dimensions

Technical data sheet

DS-2CD3146G2-IS(2.8mm)
Room
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens type Fixed focal lens 2.8 mm
Focal Length & FOV 2.8 mm, horizontal FOV 101°, vertical FOV 54°, diagonal FOV 122°
Lens Mount M12
Iris Type Fixed
Openings F1.4
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm
HEOP
Open Resources Memory: 60 MB,
Smart RAM: 400 MB,
eMMC: 2 GB
Computing Power 1.5 TOPS
Open Capability HEOP 2.0 Opendev SDK
Deep Learning Structure Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
Programming Language C,C++
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688×1520, 1920×1080, 1280×720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)

Target Cropping

Yes

Third Stream 50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
Fourth Stream 50Hz: 10fps (1280×720, 640×480, 640×360)
60Hz: 10fps (1280×720, 640×480, 640×360)
Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Fourth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

5 fixed regions for main stream and sub-stream

e-PTZ

Support Patrol and Auto Tracking settings

Audio
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Sampling Rate

8kHz/16kHz/32kHz/44.1kHz/48kHz

Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live View

Up to 6 channels

API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host

Up to 32 users
3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11,
Free live view plug-ins: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Privacy Mask

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)

120 dB

Image Enhancement BLC, HLC, 3D DNR, Defog
SNR

≥ 52 dB

Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key Yes
Power Output 12 VDC, max. 100 mA
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Face Capture Yes
People Counting Yes
General
Power 12 VDC ± 25%, 0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9W
Dimension

Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8"))

Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight

Approx. 500 g (1.1 lb.)

With Package Weight

Approx. 700 g (1.54 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter
Language

33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015

Safety

UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1

Environment

CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
