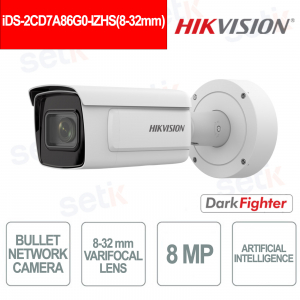

Telecamera Hikvision 8MP 8-32mm AI DarkFighter con IR e WDR

Telecamera Hikvision 8MP 8-32mm AI DarkFighter con IR e WDR
IN PROMOZIONE -35% Nuovo

iDS-2CD7A86G0-IZHS - Telecamera bullet con ottica varifocale motorizzata 8-32mm offre una risoluzione 8MP Ultra HD per immagini nitide e dettagliate anche a lunga distanza. Grazie alla tecnologia DarkFighter e al WDR 140 dB assicura prestazioni eccellenti in condizioni di scarsa illuminazione e controluce, mentre l’illuminazione IR fino a 100 metri garantisce visione chiara anche di notte. Le funzioni AI basate su deep learning includono face capture, people counting, queue management e hard hat detection, con rilevamento veicoli e protezione perimetrale avanzata per ridurre i falsi allarmi. Resistente e affidabile grazie alla protezione IP67 e IK10, rappresenta una soluzione professionale ideale per la videosorveglianza di ambienti interni ed esterni ad alta criticità. Hikvision

Scheda Tecnica

Riferimento: iDS-2CD7A86G0-IZHS(8-32mm)

Marca: Hikvision

EAN: 6931847131012

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Targa HikvisionDall’anno della sua nascita il prestigio cresce sempre più tanto da affermarsi nel 2015 come prima realtà globale nella sicurezza. Dal 2016 Hikvision espande il suo mercato diventando Total Solution Provider per l'intero mercato della sicurezza. Entra così nel mondo dell’antintrusione e successivamente si avvicina alle nuove tecnologie e all’intelligenza a servizio dell'uomo trattando sistemi IoT, Machine Vision, Robotica e Automotive. Da leader della security, Hikvision diventa con impegno, passione e competenza un'azienda Hi-Tech con una vision 4.0, che punta sempre in alto.

Setik è quindi onorata di essere distributore Hikvision. Proporremo, come sempre, prodotti di ultima generazione e l'adeguata assistenza tecnica e commerciale.

Classifica aggiornata dei Top Security Brand > Visualizza la classifica


[short_description] =>

Videosorveglianza Hikvision


Hikvision nasce nel 2001 con l’obiettivo di creare e sviluppare soluzioni complete di videosorveglianza professionale, diventando in breve tempo leader nel mondo della sicurezza.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Sicurezza e Videosorveglianza Hikvision [meta_keywords] => Sicurezza Hikvision, Hikvision, allarme hikvision [meta_description] => Hikvision nasce nel 2001 diventando in breve tempo leader nel mondo della videosorveglianza. Scopri subito i prodotti a catalogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 6 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
SCEGLI PROFESSIONISTA


FUORI TUTTO ×


  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

iDS-2CD7A86G0-IZHS(8-32mm) – TELECAMERA BULLET OTTICA VARIFOCALE 8MP NETWORK CAMERA - DARKFIGHTER

Hikvision

La telecamera Hikvision iDS-2CD7A86G0-IZHS(8-32mm) con ottica varifocale motorizzata da 8-32mm è una bullet camera da 8MP progettata per garantire immagini nitide e dettagliate anche a lunga distanza. Grazie alla tecnologia DarkFighter e al WDR 140 dB, assicura eccellenti prestazioni in condizioni di scarsa illuminazione e controluce, mentre l’illuminazione IR fino a 100 metri consente un monitoraggio efficace anche di notte. Le funzioni AI basate su deep learning includono face capture, people counting, queue management e hard hat detection, con capacità di rilevamento veicoli e analisi perimetrale avanzata. La protezione IP67 e IK10 la rende resistente a polvere, acqua e atti vandalici, ideale per applicazioni critiche interne ed esterne.

Caratteristiche principali:

- Ottica varifocale 8-32mm con zoom motorizzato

- Risoluzione 8MP Ultra HD

- Tecnologia DarkFighter e WDR 140 dB

- Illuminazione IR fino a 100 m

- Funzioni AI: face capture, people counting, hard hat detection, queue management

Rilevamento veicoli e protezione perimetrale smart

- Protezione IP67 e IK10 antivandalo


Ulteriori dettagli

✅ Ottica:
La lente varifocale motorizzata 8–32 mm garantisce massima flessibilità, consentendo di passare da un ampio campo visivo a dettagli ravvicinati con precisione.
✅ Risoluzione:
Sensore CMOS da 1/1.8" con risoluzione 8MP (3840×2160), in grado di fornire immagini nitide e ricche di dettagli in qualsiasi condizione di luce.
✅ AI Open Platform:
Supporta fino a 4 modelli AI caricabili, tra cui rilevamento, classificazione e modelli misti, offrendo grande flessibilità per applicazioni personalizzate.
✅ Network camera:
Telecamera IP compatibile con protocolli avanzati (IPv4/IPv6, HTTP/HTTPS, RTSP, ONVIF), gestibile tramite software come Hik-Connect e Hik-Central, con supporto fino a 32 utenti e 20 canali live.
 Event:
Gestione completa di eventi di sicurezza: motion detection con distinzione tra veicoli e persone, allarmi video (manomissione, qualità immagine, eccezioni di rete) e smart detection come cambio scena, audio anomalo e defocus.
✅ Deep Learning Function:
Incorpora funzioni avanzate come face capture (fino a 120 volti simultanei), face comparison (150.000 volti in libreria), people counting multidimensionale, queue management e hard hat detection per il controllo della sicurezza sul lavoro.
✅ Tecnologia DarkFighter:
Offre immagini chiare e luminose anche con scarsa illuminazione, con sensibilità fino a 0.0002 Lux in bianco e nero e prestazioni superiori nelle riprese notturne.

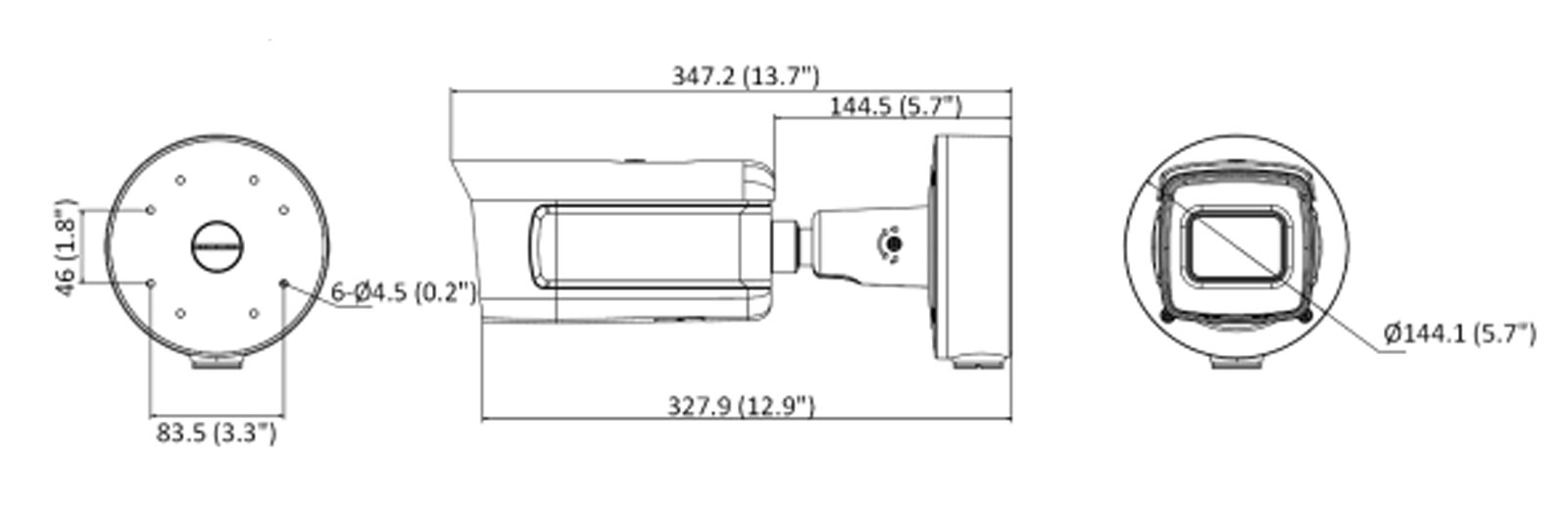

iDS-2CD7A86G0-IZHS(8-32mm) dimensioni

Scheda tecnica

iDS-2CD7A86G0-IZHS(8-32mm)
Camera
Image Sensor 1/1.8" progressive scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON);
B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Blue glass module to reduce ghost phenomenon
Lens
Aperture 8 to 32 mm: F1.7 to F1.73
Iris Type P-iris
Focal Length & FOV 8 to 32 mm, horizontal FOV: 41.8° to 14.9°, vertical FOV: 22.92° to 8.48°, diagonal FOV: 48.7° to 17°
Focus Auto, semi-auto, manual
Illuminator
Supplement Light Type IR
Supplement Light Range 8 to 32 mm: 100 m
Smart Supplement Light Yes
IR Wavelength 850 nm
AI Open Platform
Model Specification Up to 4 models,
Model type: detection model, classification model, mixed model (detection model and classification model)
Video
Main Stream 50Hz: 25fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)
60Hz: 30fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)
Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 576, 640 × 480)

Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Fourth Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

4 fixed regions for each stream

Target Cropping

Yes

Bit Rate Control

CBR,VBR

Audio
Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Type Mono sound
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View

Up to 20 channels

API Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/Host

Up to 32 users
3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule,Alarm Trigger

Wide Dynamic Range (WDR)

120 dB

Image Enhancement BLC,HLC,3D DNR,Defog
SNR ≥ 52 dB
Privacy Mask

8 programmable polygon privacy masks

Image Stabilization

EIS

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface
Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
Smart Event scene change detection,audio exception detection,defocus detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
Multi-target-type Detection

Supports simultaneous detection and capture of human body, face, and vehicle,
Gets 7 face features,
Gets 13 human body features,
Gets 2 vehicle features,
Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle

Face Capture

Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,
Uploads face with background and closed-up face pictures,
Supports best shot and quick shot for capture mode,
Gets 7 face features

Face Comparison

Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,
Supports face library encryption

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering

People Counting Supports Multi-Dimension People Counting,
Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),
Supports real-time uploading and uploading by statistic cycle,
Supports generating daily, weekly, monthly or annually reports,
Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,
Supports face feature deduplication,
Supports people flow data replenishment
Queue Management Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Heat Map

A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
Two report types are available, space heat map and time heat map line chart.

Hard Hat Detection

Detects up to 30 human targets simultaneously
Supports up to 4 shield regions

Metadata

Intrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection

Regional People Counting

Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
Supports searching real-time number of people
People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

On/Off Duty Detection Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: absence detection, on/off duty detection
Supports parameter settings: person on duty, absence duration
General
Power

12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W

Material

Aluminum alloy body

Dimension

Ø144 mm × 347 mm (Ø5.7" × 13.7\")

Package Dimension

405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")

Weight

Approx. 1950 g (4.2 lb.)

With Package Weight

Approx. 3070 g (6.7 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
Environment

CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Automotive and Railway EN50121-4
Other PVC FREE
CC Common Criteria, Assurance Level: EAL2 + ALC_FLR.2
Tutti i nostri prodotti sono conformi alla normativa CE vigente (leggi qui). Per richiedere la copia del certificato compila questo modulo
