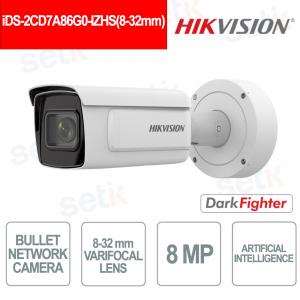

Hikvision 8MP 8-32mm AI DarkFighter Camera with IR and WDR

Hikvision 8MP 8-32mm AI DarkFighter Camera with IR and WDR
IN DER FÖRDERUNG -35% Neu

iDS-2CD7A86G0-IZHS - Bullet camera with 8-32mm motorized varifocal lens offers 8MP Ultra HD resolution for sharp, detailed images even at long distances. Thanks to DarkFighter technology and 140dB WDR, it ensures excellent performance in low-light and backlit conditions, while IR illumination up to 100 meters ensures clear vision even at night. Deep learning-based AI functions include face capture, people counting, queue management, and hard hat detection, with vehicle detection and advanced perimeter protection to reduce false alarms. Rugged and reliable with IP67 and IK10 protection, it is an ideal professional solution for video surveillance of highly critical indoor and outdoor environments. Hikvision

Technical Data Sheet

Artikel-Nr.: iDS-2CD7A86G0-IZHS(8-32mm)

Marke: Hikvision

EAN: 6931847131012

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

iDS-2CD7A86G0-IZHS(8-32mm) – 8MP VARIFOCAL LENS BULLET CAMERA NETWORK CAMERA - DARKFIGHTER

Hikvision

The Hikvision iDS-2CD7A86G0-IZHS(8-32mm) with 8-32mm motorized varifocal lens is an 8MP bullet camera designed to ensure clear, detailed images even at long distances. Thanks to DarkFighter technology and 140 dB WDR, it ensures excellent performance in low-light and backlit conditions, while IR illumination of up to 100 meters allows effective monitoring even at night. Deep learning-based AI functions include face capture, people counting, queue management, and hard hat detection, with vehicle detection capabilities and advanced perimeter analysis. IP67 and IK10 protection make it resistant to dust, water, and vandalism, ideal for critical indoor and outdoor applications.

Main features:

- 8-32mm varifocal lens with motorized zoom

- 8MP Ultra HD resolution

- DarkFighter technology and WDR 140 dB

- IR illumination up to 100m

- AI functions: face capture, people counting, hard hat detection, queue management

- Vehicle detection and smart perimeter protection

- IP67 and IK10 vandal-proof protection


Further details

Optics:
The 8–32mm motorized varifocal lens provides maximum flexibility, allowing you to switch from a wide field of view to close-up details with precision.
Resolution:
1/1.8" CMOS sensor with 8MP (3840×2160) resolution, capable of providing sharp and detailed images in any lighting condition.
AI Open Platform :
It supports up to 4 loadable AI models , including detection, classification and mixed models, providing great flexibility for customized applications.
Network camera:
IP camera compatible with advanced protocols (IPv4/IPv6, HTTP/HTTPS, RTSP, ONVIF), manageable via software such as Hik-Connect and Hik-Central, with support for up to 32 users and 20 live channels.
 Event :
Complete security event management: motion detection with distinction between vehicles and people, video alarms (tampering, image quality, network exceptions) and smart detection such as scene change, abnormal audio and defocus.
Deep Learning Function :
It incorporates advanced features such as face capture (up to 120 simultaneous faces), face comparison (150,000 faces in the library), multidimensional people counting, queue management and hard hat detection for workplace safety control.
DarkFighter Technology :
It delivers clear, bright images even in low light, with sensitivity down to 0.0002 Lux in black and white and superior night-time performance.
iDS-2CD7A86G0-IZHS(8-32mm) dimensions

Technical data sheet

iDS-2CD7A86G0-IZHS(8-32mm)
Room
Image Sensor 1/1.8" progressive scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON);
B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Blue glass module to reduce ghost phenomenon
Lens
Openings 8 to 32 mm: F1.7 to F1.73
Iris Type P-iris
Focal Length & FOV 8 to 32 mm, horizontal FOV: 41.8° to 14.9°, vertical FOV: 22.92° to 8.48°, diagonal FOV: 48.7° to 17°
Focus Auto, semi-auto, manual
Illuminator
Supplement Light Type IR
Supplement Light Range 8 to 32 mm: 100 m
Smart Supplement Light Yes
IR Wavelength 850 nm
AI Open Platform
Model Specification Up to 4 models,
Model type: detection model, classification model, mixed model (detection model and classification model)
Video
Main Stream 50Hz: 25fps (3840×2160, 3072×1728, 2560×1440, 1920×1080, 1280×720)
60Hz: 30fps (3840×2160, 3072×1728, 2560×1440, 1920×1080, 1280×720)
Sub-Stream

50Hz: 25fps (704×576, 640×480)
60Hz: 30fps (704×576, 640×480)

Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Fourth Stream 50Hz: 25fps (704×576, 640×480)
60Hz: 30fps (704×480, 640×480)
Fifth Stream 50Hz: 25fps (704×576, 640×480)
60Hz: 30fps (704×480, 640×480)
Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

4 fixed regions for each stream

Target Cropping

Yes

Bit Rate Control

CBR,VBR

Audio
Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHz
Audio Type Mono sound
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View

Up to 20 channels

API Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP
User/Host

Up to 32 users
3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11
Free live view plug-ins: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule,Alarm Trigger

Wide Dynamic Range (WDR)

120 dB

Image Enhancement BLC, HLC, 3D DNR, Defog
SNR ≥ 52 dB
Privacy Mask

8 programmable polygon privacy masks

Image Stabilization

EIS

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface
Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), video quality diagnosis, vibration detection
Smart Event scene change detection, audio exception detection, defocus detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
Multi-target-type Detection

Supports simultaneous detection and capture of human body, face, and vehicle,
Gets 7 face features,
Gets 13 human body features,
Gets 2 vehicle features,
Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle

Face Capture

Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,
Uploads face with background and closed-up face pictures,
Supports best shot and quick shot for capture mode,
Gets 7 face features

Face Comparison

Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,
Supports face library encryption

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering

People Counting Supports Multi-Dimension People Counting,
Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),
Supports real-time uploading and uploading by statistic cycle,
Supports generating daily, weekly, monthly or annually reports,
Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,
Supports face feature deduplication,
Supports people flow data replenishment
Queue Management Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Heat Map

A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
Two report types are available, space heat map and time heat map line chart.

Hard Hat Detection

Detects up to 30 human targets simultaneously
Supports up to 4 shield regions

Metadata

Intrusion detection, line crossing detection, region entrance detection, region exiting detection, face capture, multi-target-type detection

Regional People Counting

Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
Supports searching real-time number of people
People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

On/Off Duty Detection Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: absence detection, on/off duty detection
Supports parameter settings: person on duty, absence duration
General
Power

12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8W

Material

Aluminum alloy body

Dimension

Ø144 mm × 347 mm (Ø5.7" × 13.7\")

Package Dimension

405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")

Weight

Approx. 1950 g (4.2 lb.)

With Package Weight

Approx. 3070 g (6.7 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
Environment

CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Automotive and Railway EN50121-4
Other PVC FREE
CC Common Criteria, Assurance Level: EAL2 + ALC_FLR.2
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
