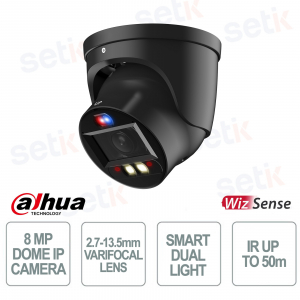

IPC-HDW3849H-ZAS-PV-S5-B | TELECAMERA IP 8MP OTTICA VARIFOCALE 2.7-13.5mm - PERIMETER PROTECTION - WIZCOLOR - TIOC PRO - NERO

La Dahua IPC-HDW3849H-ZAS-PV-B è una telecamera IP dome varifocale da 8MP in colore nero, con ottica motorizzata 2.7–13.5 mm e sensore CMOS 1/2.8” che assicura immagini Ultra HD fino a 3840×2160@30fps. Grazie alla tecnologia Smart Dual Light, registra a colori anche di notte fino a 40 m, attivando la luce bianca solo al rilevamento di persone o veicoli. Le funzioni AI integrate come protezione perimetrale, SMD 4.0 e AcuPick riducono i falsi allarmi e ottimizzano l’analisi dei filmati. Con microfono e speaker integrati per audio bidirezionale, sirena e luci rosse/blu per deterrenza attiva, IP67 e supporto PoE, rappresenta una soluzione completa e affidabile per la sicurezza avanzata.
Specifiche principali:
- Ottica varifocale motorizzata 2.7–13.5 mm (campo visivo 108°–34°)
- Risoluzione 8MP (3840×2160) @30fps con WDR 120dB
- Smart Dual Light con IR e luce bianca fino a 40 m
- AI avanzata: SMD 4.0, AcuPick, protezione perimetrale
- Audio bidirezionale con doppio microfono e speaker integrato
- Sirena e luci rosse/blu per dissuasione attiva
- Telecamera IP con PoE, slot MicroSD fino a 512 GB e protezione IP67
Ulteriori dettagli
✅ Network Camera:

Scheda tecnica
Model | IPC-HDW3849H-ZAS-PV-S5-B |
Camera | |
Image Sensor | 1/2.8" CMOS |
Max. Resolution | 3840 (H) × 2160 (V) |
ROM | 256 MB |
RAM | 2 GB |
Scanning System | Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | Up to 50 m (164.64 ft) (IR) Up to 40 m (131.23 ft) (Warm light) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 2 (IR LED); 2 (Warm light) |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens | |
Lens Type | Motorized vari-focal |
Lens Mount | φ16 |
Focal Length | 2.7 mm–13.5 mm |
Max. Aperture | F1.0 |
Field of View | H: 108°–34° V: 56°–19° D: 130°–39° |
Iris Type | Fixed |
Close Focus Distance | 1.5 m (4.92 ft) |
Professional, Intelligent | |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
SMD | SMD 4.0 |
Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.;(Some Models) |
AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
Video | |
Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
AI Coding | AI H.265; AI H.264 |
Video Frame Rate |
Main stream: 3840 × 2160@(1 fps–30 fps) |
Stream Capability |
3 streams |
Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control |
CBR/VBR/ABR |
Video Bit Rate | H.264:3 kbps–16384 kbps H.265:3 kbps–16384 kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
Scene Slef-adaptation | Yes |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto; manual |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) | Yes (4 areas) |
Image Stabilization | Electronic Image Stabilization (EIS) |
Smart IR | Yes |
Defog | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
Audio | |
Built-in MIC | Yes, built-in dual Mic |
Built-in Speaker | Yes, built-in speaker |
Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
Alarm | |
Alarm | No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)importing) |
Network | |
Ethernet | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI |
User/Host | 20 (Total bandwidth: 64 M) |
Storage |
FTP; SFTP; Micro SD card (Support max. 512 G); NAS |
Browser | IE: IE 9/11 Chrome Firefox |
Management Software | Smart PSS; DSS; DMSS |
Smartphone | IOS; Android |
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Certifications | |
Certifications |
CE-LVD: EN 62368-1; |
Port | |
Audio Input | 1 channel (RCA port) |
Audio Output | 1 channel (RCA port) |
Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
Power | |
Power Supply | 12 VDC/PoE (802.3af) |
Power Consumption |
Basic: 4.5 W (12 VDC); 5.8 W (PoE) |
Environment | |
Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
Operating Humidity | ≤95% (RH), non-condensing |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95% (RH), non-condensing |
Ingress Protection | IP67 |
Structure | |
Casing | Metal |
Dimensions | 127.6 mm × Φ122.0 mm (5.02" × Φ4.80") |
Net Weight | 0.885 kg (1.95 lb) |
Gross Weight | 1.060 kg (2.34 lb) |
