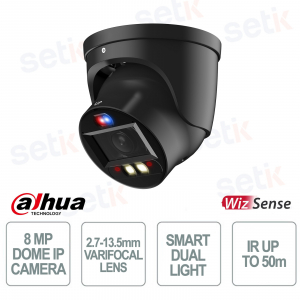

Dahua IPC-HDW3849H-ZAS-PV-B 8MP Black Varifocal 2.7–13.5mm Camera with AI and Smart Dual Light

Dahua IPC-HDW3849H-ZAS-PV-B 8MP Black Varifocal 2.7–13.5mm Camera with AI and Smart Dual Light
-56% Neu

IPC-HDW3849H-ZAS-PV-S5-B - is an 8MP varifocal dome IP camera in black with a 2.7–13.5 mm motorized lens, designed to guarantee Ultra HD images up to 3840×2160@30fps. Thanks to Smart Dual Light technology, it offers color night vision up to 40 m , activating white light when detecting people or vehicles. It integrates advanced AI functions such as perimeter protection, SMD 4.0 and AcuPick, reducing false alarms and making video analysis faster. With siren and red/blue lights for active deterrence, built-in microphone and speaker for two-way audio, IP67 and PoE, it represents a complete and professional solution for intelligent security. Dahua

Technical Data Sheet

Artikel-Nr.: IPC-HDW3849H-ZAS-PV-S5-B

Marke: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HDW3849H-ZAS-PV-S5-B | 8MP IP CAMERA WITH 2.7-13.5mm VARIFOCAL LENS - PERIMETER PROTECTION - WIZCOLOR - TIOC PRO - BLACK


Dahua

The Dahua IPC-HDW3849H-ZAS-PV-B is an 8MP varifocal dome IP camera in black, with a 2.7–13.5 mm motorized lens and a 1/2.8” CMOS sensor that ensures Ultra HD images up to 3840×2160@30fps. Thanks to Smart Dual Light technology, it records in color even at night up to 40 m, activating the white light only when it detects people or vehicles. Integrated AI functions such as perimeter protection, SMD 4.0 and AcuPick reduce false alarms and optimize video analysis. With a built-in microphone and speaker for two-way audio, siren and red/blue lights for active deterrence, IP67 and PoE support, it represents a complete and reliable solution for advanced security.

Main specifications:

- Motorized varifocal optics 2.7–13.5 mm (field of view 108°–34°)

- 8MP resolution (3840×2160) @30fps with WDR 120dB

- Smart Dual Light with IR and white light up to 40 m

- Advanced AI: SMD 4.0, AcuPick, perimeter protection

- Two-way audio with dual microphones and integrated speaker

- Siren and red/blue lights for active deterrence

- IP camera with PoE, MicroSD slot up to 512 GB and IP67 protection

Further details

Optics :
2.7–13.5mm motorized varifocal lens with F1.0 aperture, adjustable field of view from 108° to 34° to adapt to different surveillance needs .
Resolution:
8MP CMOS sensor with maximum output 3840×2160@30fps, which ensures clear and detailed Ultra HD images in any context .
Smart Dual Light :
Technology that combines IR LEDs and white light up to 50 m; the camera records in color when it detects people or vehicles, reducing light pollution.
Siren and Light Active Deterrence :
Active deterrent system with integrated siren and flashing red/blue lights, to discourage intrusions and suspicious events.
TiOC PRO :
Three-in-one technology that combines monitoring, active deterrence and 24/7 color recording for comprehensive protection.
Intelligence :
AI features such as SMD 4.0, Face Detection and AcuPick, which accurately distinguish between people and vehicles, reducing false alarms.
Perimeter Protection :
Deep learning algorithms to detect intrusions and unauthorized passage, ensuring maximum security in sensitive areas.
Microphone:
Built-in dual microphone and speaker with two-way audio for clear communication and more comprehensive monitoring.

Network Camera:
IP camera with PoE, MicroSD slot up to 512GB, ONVIF compatibility and remote management via DMSS app or Dahua software.
WizSense Technology :
Dahua's deep learning-based AI platform is designed for intelligent analytics, ease of use, and advanced security.

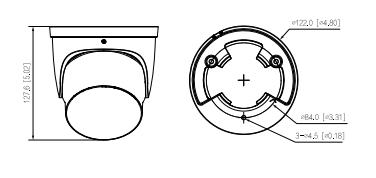

IPC-HDW3849H-ZAS-PV-S5 dimensions.

Technical data sheet

Model IPC-HDW3849H-ZAS-PV-S5-B
Room
Image Sensor 1/2.8" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 256 MB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 50 m (164.64 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED); 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Lens Mount φ16
Focal Length 2.7 mm–13.5 mm
Max. Openings F1.0
Field of View H: 108°–34°
V: 56°–19°
D: 130°–39°
Iris Type Fixed
Close Focus Distance 1.5 m (4.92 ft)
Professional, Intelligent
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD SMD 4.0
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.;(Some Models)
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate

Main stream: 3840 × 2160@(1fps–30fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control

CBR/VBR/ABR

Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Slef-adaptation Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart IR Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)
Network
Ethernet RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability ONVIF® (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage

FTP; SFTP; Micro SD card (Support max. 512G); NAS

Browser IE: IE 9/11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Smartphone iOS; Android
Cyber Security Video encryption; firmware encryption; configuration
encryption; Digests; WSSE; account lockout; security logs;
IP/MAC filtering; generation and importing of X.509
certification; syslog; HTTPS; 802.1x; trusted boot; trusted
execution; trusted upgrade
Certifications
Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU

Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption

Basic: 4.5W (12VDC); 5.8W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 10.3 W (12 VDC); 12.1W (PoE)

Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Ingress Protection IP67
Structure
Casing Metal
Dimensions 127.6 mm × Φ122.0 mm (5.02" × Φ4.80")
Net Weight 0.885 kg (1.95 lb)
Gross Weight 1,060 kg (2.34 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
