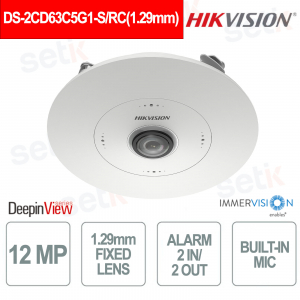

DS-2CD63C5G1-S/RC 12MP Fisheye 360° Ottica Fissa 1.29mm Deep Learning People Counting - Hikvision

DS-2CD63C5G1-S/RC 12MP Fisheye 360° Ottica Fissa 1.29mm Deep Learning People Counting - Hikvision

 
Calcolo ottica
-35% Nuovo

DS-2CD63C5G1-S/RC(1.29mm) - è una telecamera Fisheye 12 MP (3504×3504) con sensore 1/1.8" Progressive Scan CMOS, progettata per offrire una visione panoramica 360° ad altissima definizione. Integra ottica fissa 1.29 mm con campo visivo 180° orizzontale e verticale e apertura F2.2, ideale per il monitoraggio completo di ambienti interni senza punti ciechi. Supporta multi dewarping fino a 20 modalità di visualizzazione, inclusa vista 4PTZ, mantenendo immagini nitide e dettagliate. Grazie alle funzioni Deep Learning offre People Counting, Heat Map, Queue Management e Intersection Analysis, perfette per retail e analisi flussi. Compatibile con H.265+/H.264+, ONVIF e HEOP 2.0, garantisce integrazione avanzata in sistemi IP professionali. Hikvision

Scheda Tecnica

Riferimento: DS-2CD63C5G1-S/RC(1.29mm)

Marca: Hikvision

EAN: 6942160433059

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Targa HikvisionDall’anno della sua nascita il prestigio cresce sempre più tanto da affermarsi nel 2015 come prima realtà globale nella sicurezza. Dal 2016 Hikvision espande il suo mercato diventando Total Solution Provider per l'intero mercato della sicurezza. Entra così nel mondo dell’antintrusione e successivamente si avvicina alle nuove tecnologie e all’intelligenza a servizio dell'uomo trattando sistemi IoT, Machine Vision, Robotica e Automotive. Da leader della security, Hikvision diventa con impegno, passione e competenza un'azienda Hi-Tech con una vision 4.0, che punta sempre in alto.

Setik è quindi onorata di essere distributore Hikvision. Proporremo, come sempre, prodotti di ultima generazione e l'adeguata assistenza tecnica e commerciale.

Classifica aggiornata dei Top Security Brand > Visualizza la classifica


[short_description] =>

Videosorveglianza Hikvision


Hikvision nasce nel 2001 con l’obiettivo di creare e sviluppare soluzioni complete di videosorveglianza professionale, diventando in breve tempo leader nel mondo della sicurezza.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Sicurezza e Videosorveglianza Hikvision [meta_keywords] => Sicurezza Hikvision, Hikvision, allarme hikvision [meta_description] => Hikvision nasce nel 2001 diventando in breve tempo leader nel mondo della videosorveglianza. Scopri subito i prodotti a catalogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 6 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
SCEGLI PROFESSIONISTA

DS-2CD63C5G1-S/RC(1.29mm) – TELECAMERA FISHEYE OTTICA FISSA 1.29mm 12MP - DEEPINVIEW - HEATMAP

Hikvision

La Hikvision DS-2CD63C5G1-S/RC è una telecamera Fisheye 12 MP (3504×3504) con sensore 1/1.8" Progressive Scan CMOS, progettata per garantire copertura panoramica 360° ad altissima definizione. È dotata di ottica fissa 1.29 mm con campo visivo 180° orizzontale e verticale e apertura F2.2, ideale per monitorare ambienti ampi senza punti ciechi. Supporta fino a 20 modalità di visualizzazione con dewarping, inclusa vista 4PTZ, mantenendo immagini dettagliate anche in modalità panoramica. Integra funzioni Deep Learning avanzate come People Counting, Heat Map, Queue Management e Intersection Analysis, perfette per retail e analisi dei flussi. Compatibile con H.265+/H.264+, ONVIF e HEOP 2.0, assicura massima integrazione in sistemi di videosorveglianza IP professionali.

Caratteristiche principali:

- Risoluzione 12 MP 3504×3504 Ultra HD

- Ottica fissa 1.29 mm F2.2 con FOV 180°/180°

- Copertura panoramica 360° Fisheye

- 20 modalità di visualizzazione con dewarping e 4PTZ

- Deep Learning: People Counting, Heat Map, Queue Management

- Compressione H.265+/H.264+ e supporto ONVIF/HEOP 2.0

Ulteriori dettagli

✅ Ottica fissa:
Ottica fissa 1.29 mm F2.2 con campo visivo 180° orizzontale e verticale, progettata per garantire copertura panoramica 360° Fisheye senza punti ciechi, ideale per ambienti retail, uffici e grandi spazi interni.
✅ Risoluzione:
12 MP 3504×3504 Ultra HD con sensore 1/1.8" Progressive Scan CMOS, capace di mantenere immagini nitide e dettagliate anche in modalità 4PTZ dewarping.
✅ DeepinView:
Tecnologia DeepinView con computing power 2 TOPS e supporto HEOP 2.0, che consente analisi video avanzate basate su algoritmi Deep Learning.
✅ Heat Map:
Intelligente basata su Deep Learning, che genera mappe di calore spaziali e temporali per analizzare flussi, permanenza e densità delle persone.
✅ Motion Detection:
Con rilevamento manomissione video, eccezioni di rete e integrazione con eventi smart come intrusion, line crossing e scene change detection.
✅ Deep Learning Function:
Con People Counting, Queue Management e Intersection Analysis, supporto report automatici e upload dati in tempo reale o programmato.
✅ Allarme I/O:
Sistema di Allarme 2 ingressi / 2 uscite (24V DC, 1A) con trigger su eventi intelligenti e invio notifiche via email, FTP/NAS o registrazione su microSD fino a 256 GB.
✅ Network Protocol:
Ampio supporto Network Protocol (TCP/IP, HTTPS, RTSP, ONVIF Profile S/G/T, IPv4/IPv6, SSL/TLS, SIP) per integrazione completa in reti IP e sistemi VMS professionali.

Scheda tecnica

DS-2CD63C5G1-S/RC(1.29mm)
Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3504 × 3504
Min. Illumination Color: 0.03 Lux @ (F2.2, AGC ON),B/W: 0.006 Lux @ (F2.2, AGC ON)
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Lens
Lens Type Fixed focal lens, 1.29 mm
Focal Length & FOV horizontal FOV 180°, vertical FOV 180°
Iris Type Fixed
Aperture F2.2
Depth of Field 0.2 m to ∞
HEOP
Open Resources Memory: 60 MB,
Smart RAM: 800 MB,
eMMC: 2 GB
Computing Power 2 TOPS
Open Capability HEOP 2.0 OpendevSDK
Deep Learning Structure Caffe,TensorFlow,PyTorch
Programming Language C,C++
Video
Main Stream 50 Hz: 25 fps/60 Hz: 30 fps:
Fisheye View:
3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048
180 Panorama View:
3072 × 2304, 2048 × 1536
180 Dual Channel Panorama View:
3072 × 1152
Panorama View:
3072 × 2304, 2048 × 1536
4PTZ View:
camera 01/camera 02/camera 03/camera 04: 1600 × 1200
Fisheye + 3PTZ View:
camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280
camera 02/camera 03/camera 04: 1600 × 1200
4PTZ Fusion View:
3200 × 2400, 2048 × 1536
Sub-Stream

50 Hz: 25 fps/60 Hz: 30 fps:
Fisheye View:
720 × 720, 480 × 480
180 Panorama View:
640 × 480, 320 × 240
180 Dual Channel Panorama View:
640 × 480, 320 × 240
Panorama View:
640 × 360, 320 × 240
4PTZ View:
camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240
Fisheye + 3PTZ View:
camera 01: 720 × 720
camera 02/camera 03/camera 04: 640 × 480, 320 × 240
Video Compression

Main stream: H.265+/H.265/H.264+/ H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate

32 Kbps to 16 Mbps
H.264 Type

Baseline Profile,Main Profile,High Profile
H.265 Type

Main Profile
Bit Rate Control

CBR,VBR
Region of Interest (ROI)

4 fixed regions for each stream
Scalable Video Coding (SVC)

H.264 and H.265 encoding
Fisheye Display
Mount Type Support wall/table/ceiling mounting
Decoding Mode Support hardware decoding and software decoding
Display Mode 20 display modes in total,
Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Audio
Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering

Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
Simultaneous Live View

Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP,
Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP)
systems, peer to peer or integrated with SIP/PBX
User/Host

Up to 32 users.
3 user levels: administrator, operator and user
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client

iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
Web Browser

Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch

Yes
Image Settings

saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch

Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)

Digital WDR
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask

8 programmable polygon privacy masks
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone Yes, 4 built-in microphones
Audio 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Event
Basic Event Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
Deep Learning Function
People Counting Counts people entering, exiting and passing by separately (The data is stored in the flash.)
Supports real-time uploading and uploading by statistic cycle
Sends email reports on daily, weekly, monthly or annually basis
Supports up to 3 detection regions, and independent arming schedule and linkage method
Queue Management Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Heat Map A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
Two report types are available, space heat map and time heat map line chart.
Intersection Analysis Detects and analyze flow in an intersection-like scene, and generate reports
Support one intersection of up to 10 ways
General
Power

12 VDC ± 20%, 0.6 A, max. 7 W,two-core terminal block,
PoE: IEEE 802.3af, Class 3, max. 8 W
Material

Metal
Dimension

Ø165.0 mm × 48.9 mm (Ø6.49" × 1.93")
Package Dimension

272 mm × 215 mm × 105 mm (10.7" × 8.5" × 4.1")
Weight

Approx. 470 g (1.04 lb.)
With Package Weight

Approx. 884 g (1.95 lb.)
Storage Conditions

-10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions

-10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function

Heartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding
Cable Length

0.31 m (1.02 ft.)
Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach: Regulation (EC) No 1907/2006
Tutti i nostri prodotti sono conformi alla normativa CE vigente (leggi qui). Per richiedere la copia del certificato compila questo modulo
