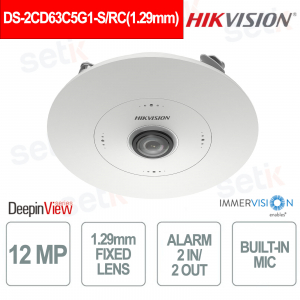

DS-2CD63C5G1-S/RC(1.29mm) – 1.29mm FIXED LENS FISHEYE CAMERA 12MP - DEEPINVIEW - HEATMAP
The Hikvision DS-2CD63C5G1-S/RC is a 12 MP (3504×3504) Fisheye camera with a 1/1.8" Progressive Scan CMOS sensor, designed to ensure 360° panoramic coverage in ultra-high definition. It is equipped with a 1.29 mm fixed lens with a 180° horizontal and vertical field of view and F2.2 aperture, ideal for monitoring large environments without blind spots. It supports up to 20 viewing modes with dewarping , including 4PTZ view, maintaining detailed images even in panoramic mode. It integrates advanced Deep Learning functions such as People Counting, Heat Map, Queue Management and Intersection Analysis , perfect for retail and flow analysis. Compatible with H.265+/H.264+ , ONVIF and HEOP 2.0 , it ensures maximum integration into professional IP video surveillance systems.
Main features:
- Resolution 12 MP 3504×3504 Ultra HD
- 1.29mm F2.2 fixed lens with FOV 180°/180°
- 360° Fisheye Panoramic Coverage
- 20 display modes with dewarping and 4PTZ
- Deep Learning: People Counting, Heat Map, Queue Management
- H.265+/H.264+ compression and ONVIF/HEOP 2.0 support
Further details
1.29mm F2.2 fixed lens with 180° horizontal and vertical field of view , designed to ensure 360° Fisheye panoramic coverage without blind spots, ideal for retail environments, offices and large indoor spaces.
12 MP 3504×3504 Ultra HD with 1/1.8" Progressive Scan CMOS sensor, capable of maintaining sharp and detailed images even in 4PTZ dewarping mode.
With People Counting, Queue Management and Intersection Analysis , support automatic reporting and real-time or scheduled data upload.
Broad Network Protocol support (TCP/IP, HTTPS, RTSP, ONVIF Profile S/G/T, IPv4/IPv6, SSL/TLS, SIP) for seamless integration into IP networks and professional VMS systems.
Technical data sheet
| DS-2CD63C5G1-S/RC(1.29mm) | |
| Room | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3504 × 3504 |
| Min. Illumination | Color: 0.03 Lux @ (F2.2, AGC ON),B/W: 0.006 Lux @ (F2.2, AGC ON) |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Lens | |
| Lens Type | Fixed focal lens, 1.29 mm |
| Focal Length & FOV | horizontal FOV 180°, vertical FOV 180° |
| Iris Type | Fixed |
| Openings | F2.2 |
| Depth of Field | 0.2 m to ∞ |
| HEOP | |
| Open Resources | Memory: 60 MB, Smart RAM: 800 MB, eMMC: 2 GB |
| Computing Power | 2 TOPS |
| Open Capability | HEOP 2.0 Opendev SDK |
| Deep Learning Structure | Coffee, TensorFlow, PyTorch |
| Programming Language | C,C++ |
| Video | |
| Main Stream | 50 Hz: 25 fps / 60 Hz: 30 fps: Fisheye View: 3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048 180 Panorama View: 3072 × 2304, 2048 × 1536 180 Dual Channel Panorama View: 3072 × 1152 Panorama View: 3072 × 2304, 2048 × 1536 4PTZ View: room 01/room 02/room 03/room 04: 1600 × 1200 Fisheye + 3PTZ View: camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280 room 02/room 03/room 04: 1600 × 1200 4PTZ Fusion View: 3200 × 2400, 2048 × 1536 |
| Sub-Stream |
50 Hz: 25 fps / 60 Hz: 30 fps: |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264, |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
4 fixed regions for each stream |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Fisheye Display | |
| Mount Type | Support wall/table/ceiling mounting |
| Decoding Mode | Support hardware decoding and software decoding |
| Display Mode | 20 display modes in total, Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion |
| Audio | |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering |
Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP |
| Simultaneous Live View |
Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
| User/Host |
Up to 32 users. |
| Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Network Storage |
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Client |
iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect |
| Web Browser |
Plug-in required live view: IE 10, IE 11, |
| Image | |
| Image Parameters Switch |
Yes |
| Image Settings |
saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
| Day/Night Switch |
Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) |
Digital WDR |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Privacy Mask |
8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256GB |
| Built-in Microphone | Yes, 4 built-in microphones |
| Audio | 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture |
| Deep Learning Function | |
| People Counting | Counts people entering, exiting and passing by separately (The data is stored in the flash.) Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports up to 3 detection regions, and independent arming schedule and linkage method |
| Queue Management | Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold |
| Heat Map | A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart. |
| Intersection Analysis | Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways |
| General | |
| Power |
12 VDC ± 20%, 0.6 A, max. 7W,two-core terminal block, |
| Material |
Metal |
| Dimension |
Ø165.0 mm × 48.9 mm (Ø6.49" × 1.93") |
| Package Dimension |
272 mm × 215 mm × 105 mm (10.7" × 8.5" × 4.1") |
| Weight |
Approx. 470 g (1.04 lb.) |
| With Package Weight |
Approx. 884 g (1.95 lb.) |
| Storage Conditions |
-10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Heartbeat, flash log, password reset via email, password protection, one-key reset, anti-banding |
| Cable Length |
0.31 m (1.02 ft.) |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment |
CE-RoHS (2011/65/EU) |
