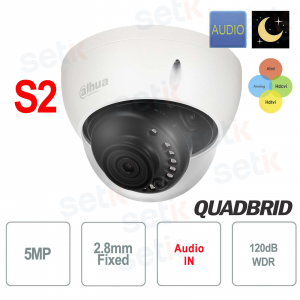

HAC-HDBW2501E-S2 - è una telecamera dome antivandalo da 5MP con ottica fissa 2.8mm F1.6, progettata per offrire immagini nitide anche in condizioni di scarsa illuminazione grazie alla tecnologia Starlight. Supporta la trasmissione di video, audio, dati e alimentazione su un solo cavo coassiale, con portata fino a 700 m. Garantisce una visione ottimale in scene ad alto contrasto grazie al WDR reale a 120 dB e visione notturna Smart IR fino a 30 m. La scocca in alluminio con protezione IP67 e IK10 la rende ideale per ambienti esterni e installazioni critiche. Dahua
Riferimento: HAC-HDBW2501E-S2
Marca: Dahua
EAN: 6939554945854
Disponibilità: 1

FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
HAC-HDBW2501E-S2 | TELECAMERA HDCVI 5 MP 2.8MM - WDR - AUDIO - SMD LEDS

La Dahua HAC-HDBW2501E-S2 è una telecamera dome antivandalo da 5MP con ottica fissa 2.8mm F1.6, ideale per ambienti interni ed esterni grazie alla protezione IP67 e IK10. Garantisce immagini nitide anche in condizioni di scarsa luminosità con tecnologia Starlight e visione notturna IR fino a 30 m. La tecnologia HDCVI consente la trasmissione su un solo cavo di video, audio, dati e alimentazione, mentre il True WDR a 120 dB assicura qualità visiva in scene ad alto contrasto. Compatibile con HDCVI, CVBS, TVI e AHD, è perfetta per aggiornare impianti analogici mantenendo semplicità e affidabilità.
Specifiche principali:
- 5MP @ 20fps
- Ottica fissa 2.8mm
- IR fino a 30 m
- 4 segnali su 1 cavo
- WDR 120 dB
- Tecnologia Starlight
- IP67 / IK10
Ulteriori dettagli

Scheda tecnica
Model | HAC-HDBW2501E-S2 | |
Camera | ||
Image Sensor | 1/2.8" CMOS | |
Effective Pixels | 2592(H)×1944(V), 5MP | |
Scanning System | Progressive | |
Electronic Shutter Speed |
PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
|
Minimum illumination | 0.005Lux/F1.6, 30IRE, 0Lux IR on | |
S/N Ratio | More than 65dB | |
IR Distance | Up to 30m (98feet) | |
IR On/Off Control |
Auto / Manual |
|
IR Leds |
12 |
|
Lens | ||
Lens Type | Fixed lens / Fixed iris | |
Mount Type | Board-in | |
Focal Length | 2.8mm | |
Max aperture | F1.6 | |
Angle of view | H: 98° | |
Focus Control | N/A | |
Close Focus Distance |
800mm 31.5" |
|
Pan / Tilt / Rotation | ||
Pan/Tilt/Rotation |
Pan: 0° ~ 355° Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
|
Video | ||
Resolution | 5MP (2592×1944) | |
Frame Rate | 5MP (2592×1944) | |
Video Output | 1-channel BNC high definition video output / CVBS video output (DIP switch) | |
Day/Night | Auto (ICR) / Manual | |
OSD Menu | Multi-language | |
BLC Mode | BLC / HLC / WDR | |
WDR | 120dB | |
Gain Control | AGC | |
Noise Reduction | 2D/3D | |
White Balance | Auto / Manual | |
Smart IR | Auto / Manual | |
Certifications | ||
Certifications |
CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|
Interface | ||
Audio Interface |
1ch in |
|
Electrical | ||
Power Supply |
12V DC ±30% |
|
Power Consumption |
Max. 5.3W (12V DC, IR on) |
|
Environmental | ||
Operating Conditions |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F) |
|
Storage Conditions |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|
Ingress Protection & Vandal Resistance |
IP67 & IK10 |
|
Construction | ||
Casing |
Aluminium |
|
Dimensions |
Φ109.9mm×81.0mm (Φ4.33"×3.19") |
|
Net Weight |
0.33kg (0.73lb) |
|
Gross Weight |
0.45kg (0.99lb) |
