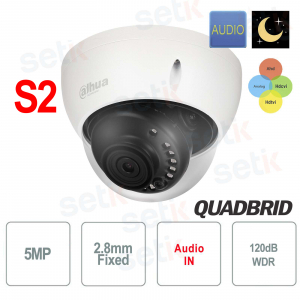

HAC-HDBW2501E-S2 | HDCVI 5 MP 2.8MM CAMERA - WDR - AUDIO - SMD LEDS


Dahua

The Dahua HAC-HDBW2501E-S2 is a 5MP vandal-proof dome camera with a 2.8mm F1.6 fixed lens, ideal for indoor and outdoor environments thanks to its IP67 and IK10 protection. It guarantees clear images even in low light conditions with Starlight technology and IR night vision up to 30 m. HDCVI technology allows video, audio, data and power transmission over a single cable, while 120 dB True WDR ensures visual quality in high-contrast scenes. Compatible with HDCVI, CVBS, TVI and AHD, it is perfect for upgrading analog systems while maintaining simplicity and reliability .

Main specifications:

- 5MP @ 20fps

- 2.8mm fixed optics

- IR up to 30m

- 4 signals on 1 cable

- WDR 120 dB

- Starlight Technology

- IP67 / IK10

Further details

Resolution:
The camera offers a resolution of 5MP (2592×1944) at 20fps, providing images rich in detail and suitable for contexts where high video quality is required, such as professional environments or public spaces .
Optics :
Equipped with a 2.8mm F1.6 fixed lens , with a horizontal viewing angle of up to 98° , it allows for wide visual coverage, perfect for entrances, corridors or perimeters.
4 signals on 1 coaxial cable :
Thanks to HDCVI technology, the camera transmits video, audio, data, and power over a single coaxial cable. This reduces installation complexity and simplifies wiring, making it compatible with existing analog systems.
Long distance transmission :
It supports stable transmission up to 700 meters over coaxial cable and 300 meters over UTP for 5MP HD video, ensuring lossless quality even in large area installations .
Starlight :
Starlight technology provides clear, colorful vision in low-light environments (up to 0.005 lux), enhancing nighttime detail. Excellent for parking lots, industrial areas, and low-light environments.
Wide Dynamic Range (WDR) :
The 120 dB True WDR allows you to obtain balanced images even in the presence of strong contrast between light and dark areas (e.g. entrances or shop windows exposed to the sun), significantly improving the readability of the scene.
Protection :
Built from aluminum, the camera is IP67 (waterproof and dustproof) and IK10 (vandal-proof) certified. It operates within a temperature range of -40°C to +60°C , with a ±30% power supply tolerance and lightning protection up to 4KV.
Dahua HAC-HDBW2501E CCTV Camera Dimension Diagram

Technical data sheet

Model HAC-HDBW2501E-S2
Room
Image Sensor 1/2.8" CMOS
Effective Pixels 2592(H)×1944(V), 5MP
Scanning System Progressive
Electronic Shutter Speed

PAL: 1/4s~1/100000s

NTSC: 1/3s~1/100000s

Minimum illumination 0.005Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98 feet)
IR On/Off Control

Auto / Manual

IR LEDs

12

Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.8mm
Max openings F1.6
Angle of view H: 98°
Focus Control N/A
Close Focus Distance

800mm

31.5"

Pan / Tilt / Rotation
Pan/Tilt/Rotation

Pan: 0° ~ 355°

Tilt: 0° ~ 75°

Rotation: 0° ~ 355°

Video
Resolution 5MP (2592×1944)
Frame Rate 5MP (2592×1944)
Video Output 1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications

CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface

1ch in

Electrical
Power Supply

12V DC ±30%

Power Consumption

Max. 5.3W (12V DC, IR on)

Environmental
Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Ingress Protection & Vandal Resistance

IP67 & IK10

Construction
Casing

Aluminum

Dimensions

Φ109.9mm×81.0mm (Φ4.33"×3.19")

Net Weight

0.33kg (0.73lb)

Gross Weight

0.45kg (0.99lb)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
