Dahua PFM300 Power Adapter Output 2A (± 2%), Output Voltage DC12V (± 5%), Input AC180 ~ 264V, 50 / 60Hz, 0.6A, No-load Power Consumption <0.5W, Accurate protection against overcurrent and the load voltage.
https://www.setik.biz/en/power-source/7959-dahua-pfm300-power-adapter-dc12v2a-dahua.html
€6.30
€14.64 -57%
taxes included
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

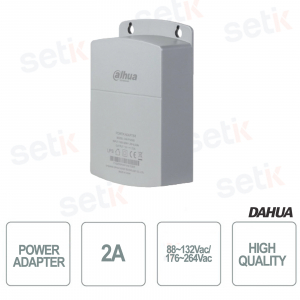

POWER ADAPTER - OUT 2A - DAHUA
Power Adapter - DahuaOutput 2A (± 2%), Output Voltage DC12V (± 5%), Input AC180 ~ 264V, 50 / 60Hz, 0.6A, No-load Power Consumption <0.5W, Accurate protection against overcurrent and voltage load.
Quality product
Product details
- Power Adapter - Dahua
- Output 2A
- Efficiency: 82%
- Output Voltage DC12V (± 5%)
- Output current 2A (± 2%)
- Product excluded from warranty
Data sheet
| Rated input | AC180 ~ 264V, 50 / 60Hz, 0.6A |
| Efficiency | 82% |
| no-load power consumption | <0.5W |
| Output voltage | DC12V (± 5%) |
| Output current | 2A (± 2%) |
| Protection / Environmental | |
| Protection | Accurate over current, voltage load protection "V0" fire protection |
| Working temperature | -30 ℃ ~ + 70 ℃ (-22 ℉ ~ + 158 ℉) |
| Working humidity | <90% RH |
| Physical Properties | |
| Weight | 160g (0.35lb) |
| Dimension (LxWxH) | 88mmx37mmx138mm (3.46 "x1.46" x5.43 ") |
| Installation | Wall mount |
| Color | Gray |
| Input | Palisade terminal |
| Output | DC output wire 60mm (interface: φ5.5 × φ2.1) |
| Safety Standards | |
| Certification | THERE IS |
Further details
 | Components which by their nature or due to normal wear, tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
Download
Brochure in English
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
