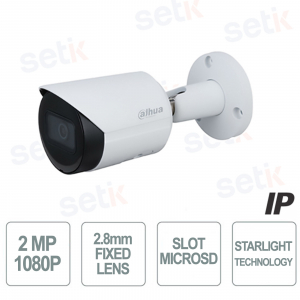

IPC-HFW2230S-S-S2 | TELECAMERA IP ONVIF® POE - 2 MP 2.8MM - STARLIGHT - VIDEO ANALISI - SLOT MICROSD

La telecamera di videosorveglianza IP Dahua IPC-HFW2230S-S-S2 da 2MP con ottica fissa da 2.8 mm offre immagini a colori anche in condizioni di scarsa luminosità grazie alla tecnologia Starlight. Dotata di codifica H.265+ per ottimizzare banda e archiviazione, analisi video intelligente (IVS) e protezione IP67, è ideale per ambienti esterni e professionali. Supporta PoE, scheda SD fino a 256 GB e rilevamento intrusioni.
Specifiche principali:
- Risoluzione Full HD 1080p (1920×1080) a 30 fps
- Ottica fissa 2.8 mm – angolo di visione 132° diagonale
- Tecnologia Starlight + IR LED con visione notturna fino a 30 m
- Rilevamento intelligente: intrusione, attraversamento linea
- Compressione video H.265+/H.264+
- Protezione IP67, alimentazione 12V DC o PoE
- Supporto SD card fino a 256 GB
Ulteriori dettagli
✅ Analisi Video Intelligente (IVS):
- Rilevamento intrusioni (Intrusion Detection)
- Attraversamento linea (Tripwire)

Scheda tecnica
Model | IPC-HFW2230S-S (S2) |
Camera | |
Image Sensor | 1/2.7” CMOS |
Effective Pixel | 1920 (H) × 1080 (V) |
ROM | 128 MB |
RAM | 128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
Min. Illumination | 0.005 Lux@F1.6 |
IR Distance | 30 m (98.43 ft) (IR) |
IR On/Off Control | Auto/Manual |
IR LEDs Number | 1 |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
lens | |
Lens Type | Fixed |
Mount Type | M12 |
Focal Length | 2.8 mm |
Max. Aperture | F1.6 |
Field of View | Horizonal: 110.0° Vertical: 59.0° Diagonal: 132.0° |
Iris Type | Fixed |
Close Focus Distance | 0.6 m (1.97 ft) |
Smart Event | |
General IVS Analytics | Tripwire, Intrusion |
Video | |
Video Compression | H.265; H.264; H.264B; MJPEG |
Smart Codec | H.264: Yes H.265: Yes |
Video Frame Rate | 50Hz Main stream (1920 × 1080@25 fps); sub stream (704 × 576@25 fps) 60Hz Main stream (1920 × 1080@30 fps); sub stream (704 × 480@30 fps) |
Stream Capability | Main stream; sub stream |
Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps |
Day/Night | ICR switch |
BLC | Yes |
WDR | DWDR |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detection | Disable/Enable (4 areas, rectangle) |
Region of Interest(RoI) | Yes (4 areas) |
Smart IR | Yes |
Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution.) |
Mirror | Yes |
Privacy Masking | 4 areas |
Network | |
Network | RJ-45 (10/100 Base-T) |
Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP |
Interoperability | ONVIF® (Profile S/Profile G); CGI; Milestone; Genetec |
User/Host | 20 |
Edge Storage | Dahua Cloud; FTP; Micro SD card (max. 256 GB); NFS |
Browser | IE Chrome Firefox |
Management Software | Smart PSS; DSS; DMSS |
Mobile Phone | IOS; Android |
Certification | |
Certifications | CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL: UL60950-1 CAN |
Power | |
Power Supply | 12V DC/POE |
Power Consumption | Basic power consumption: 1.8W (12V DC), 2.3W (POE) Max power consumption (H.265, Max resolution, Max stream, WDR, IR full intensity, IVS): 3.8W (12V DC),4.6W (POE) |
Environment | |
Operating Conditions | -40°C to +60°C (-40°F to +140°F) |
Operating Humidity | ≤95% |
Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
Protection Grade | IP67 |
Structure | |
Casing | Metal |
Dimensions | 166.2 mm × Φ70 mm (6.54" × Φ2.76") |
Net Weight | 0.48 kg (1.1 lb) |
Gross Weight | 0.57 kg (1.3 lb) |
